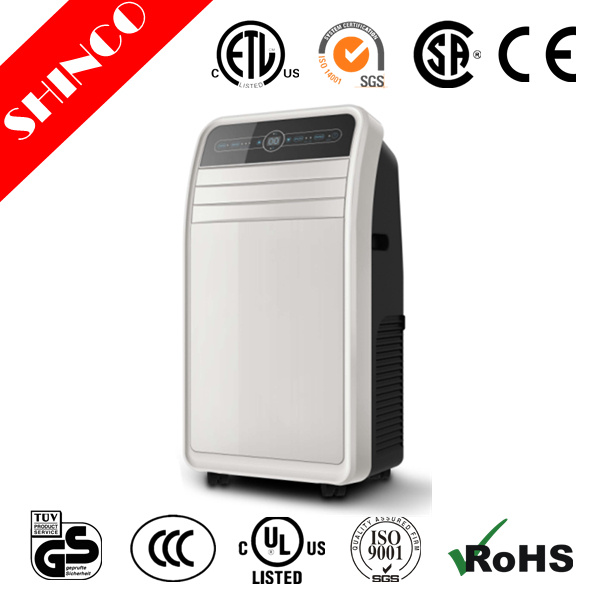

Good Quality Cooling and Heating Both Mobile Portable Air Conditioner

Prod Model:	YPF1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
New Design:	9000-15000BTU
Function:	Cooling, Heating, Dehumidify, Fan
Color:	White and Grey
Ypf1-12c:	12000BTU/3500W
Type:	Portable Air Conditioner
Usage:	Room
Indoor Machine Noise:	>50dB
Certification:	BEB
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	DC
Condition:	New
Capacity:	9000BTU-13000BTU

Product Description

Construction Features
1. Self-evaporation, new generation. Water generated inside is reused, no need to empty water,power saves.
2. Water disposed by a spraying motor.The machine works perfectly in wet area with high EER.
3. Rectangular shape looks handsome and silver-printed housing appears luxury.
4. Reversible LCD, indicating temperature and operation status.
5. Anti-frozen function under cooling.
6. Self-diagnosis function and 24 hour On/Off timer.

Other Features and Functions
1.louvers swing automatically,wind auto-swings.
2.soft touch control panel
3.high quantity.

Loading Quantity
20"/40"GP/40"HQ: 128/266/397

			European Market		North American Market
Model		Unit	YPF1-09C	YPF1-12C	YPF1-09C	YPF1-12C
Cooling capacity		Btu/h	9000	12000	9000	12000
		W	2600	3500	2600	3500
Heating capacity		Btu/h	N/A	N/A	N/A	N/A
		W	N/A	N/A	N/A	N/A
Power Supply		V~,Hz,Ph	220~240,50,1	220~240,50,1	110~120,60	110~120,60
Rated input	Cooling	W	1020	1400	1000	1250
Rated Current	Cooling	A	4.5	6	8.7	11
Rated input	Heating	W	N/A	N/A	N/A	N/A
Rated Current	Heating	A	N/A	N/A	N/A	N/A
EER for Cooling(R410A)		Btu/W.h	9	8.3	N/A	N/A
		W/W	2.62	2.45	N/A	N/A
COP for Heating(R410A)		Btu/W.h	N/A	N/A	N/A	N/A
		W/W	N/A	N/A	N/A	N/A
Moisture Removal		L/h	0.8	1.2	0.8	1.2
Air Circulation		m³/h	400	420	400	420
Noise	High	dB(A)	55	55	55	55
	Middle	dB(A)	53	53	53	53
Body Size	W×H×D	mm	443×830×340	443×830×340	443×830×340	443×830×340
Package Size	W×H×D	mm	480×885×430	480×885×430	480×885×430	480×885×430
Net Weight/Gross Weiht		kg	25/30	28/33	25/30	28/33
Appliation Area		m2	10~15	18~25	10~15	18~25
Loading Quantity		Set/40"HQ	385	385	385	385
		Set/40"GP	258	258	258	258
		Set/20"	126	126	126	126
Remarks: : 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.

About us
Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.

Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.

Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
