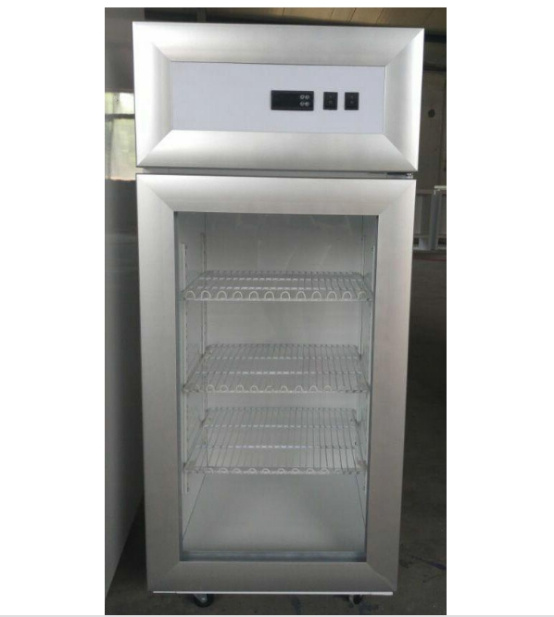

Good Quality Blood Bank Refrigerator But Cheap Price (650L)

Prod Model:	FYLC-650
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Fylc-650
External Size (Wxdxh) Mm:	860*610*2050
Inside Size (Wxdxh) Mm:	800*515*1605
Temp:	4±1oc
Power:	400W
Capacity:	>501L
Door Number:	Single Door
Type:	Display Cooler
Door Type:	Swing Door
Power Source:	Electricity
Temperature Control:	Smart Thermostat
Temperature Type:	Single-temperature
Function:	Cold Storage
Certification:	SGS

Product Description

4Degree Blood Bank Refrigerators-Upgrade Style
FYLC series Blood Bank Refrigerators are mainly designed for much more safety of storing the
blood bags after blood collected from donators.The accurate temperature sensor(PT100) used,
famous brand compressor,high efficiency CFC freezing medium used,thicker CFC foaming raw
material used,perfect air flow designing and inner small door for each chamber,etc.
Main upgrade:1,Main part changed:Axial-flow fan used,super silent style,longer life time
and better temperature uniformity.2,New air flow path designing,condensed water free
and frost free.3,New designing exterior appearance.
Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with accurate
temperature sensor can maintain the temperature constancy in the box at 4±1ºC precisely.The
temperature display precision is 0.1ºC, the resolution is 0.1ºC and the adjusting increment is
0.1ºC. The value is to be displayed through three-digital high-brightness figure.
The system has special high-resolution temperature calibrating function.The calibrating
increment is 0.1ºC.
The forced cold-air circulation system with intelligence-control fan can ensure the temperature
uniformity inside the box.

Temperature recording and printing systemOptional
The imported temperature recording and printing system. There are four precise temperature
sensors (two sensors for some systems) inside the box and two temperature indicators outside
the box, which are to display the temperature of upper and lower point, for users to supervise the
temperature at each operating states in the box. The display precision--resolution is 0.1ºC.
The distinguished power-off memory function can hold and store huge temperature data and
information permanently.
The temperature printing has password protection function, which can prevent illegally printing of
the temperature fluctuation information.
5-ways alarm system: including 2 sound alarm devices with 220V power supply, 2 light alarm
devices with 220V power supply and one remote signal alarm apparatus (optional), consisting
the super complementary supervision system.
The data management software is available for one or more temperature signals changes
Communicate with PC through RS-232 interface to examine the temperature curve diagnosis
diagram of one or more refrigerators and display the data sheet. The data and images can be
stored, inquired and printerOptional.
Safety control system
Keyboard lock, password protection function, and method against missing-adjustment of the
operating parameter(Optional);
Setting of the alarm temperature range.
Audible and visual alarms: High/low temperature alarm.System failure alarm,power failure alarm
are optional.
Three alarm ways :buzzer alarm, flashing alarm, remote signal alarm(optional)
The starting delay function due to self-checking and the interval protection function between
temporary stop and start can ensure the reliable operation;
The system can record the condition of the maximum and the minimum temperature inside the
box automatically without recording paper.
With the specially designed function, the system can operate under the state of sensor failure or
the state of numerical disturbance safely and automatically.
The operating parameter display function can ensure that the system is under supervision by
operator and with security and stability(Optional);
Equipped with remote alarm interface(Optional);
The distinguished operating parameter of the temperature control system can separate the
operator menu from the supervisor menu, which can locate the respective responsibility of the
operating parameter and the article storage(Optional).
The inbuilt lithium accumulator can keep displaying the temperature inside the box and can keep
the light and sound alarm available for 72 hours after electricity failure(Optional).
Refrigeration system
Famous brand full sealed and high-performance compressor,CFC high efficiency freezing
medium;
Import and adopt the original binding "Bi-Sonic" double fan strongly against the low temperature
and moisture heat elimination fan, vaporizer (cooling pipeline inside the box);

Fluoride-free refrigeration system for environmental protection to make green products and
create green world.
Humanization design
High-quality adjustable stand of plastic coated steel wire can make the operation and the
cleaning easily.
The large-screen design is easy for observation.
The refrigerator body is made of high-quality structural steel plate, which is treated with
advanced phosphate rot-proof spray coating processing. The surface color is soft.
Double transparent insulation glazed outer door,filled with inert gas.
With inner small transparent plastic doors,and blood type mark can be tied.
The power saving lamps on the body can light the whole space inside the refrigerator.
Four Casters are mounted under the bottom.
Environment friendly Mono-assembly foaming(Rigid polyurethane insulation material),CFC free.
Wide voltage band is available for 187-242V voltage
Other optional items:
USB port,Temperature Recorder and thermal printer,etc.
Technical Parameters:
Technical Parameters:

Model	Capacity	External size (WxDxH) mm	Inside Size (WxDxH) mm	Temp	Power	N.W.	Shelves
FYLC-120	120L	530*526*1248	432*420*805	4±1ºC	150w	48kgs	3
FYLC-200	210L	530*526*1650	432*420*1210	4±1ºC	200w	68kgs	4
FYLC-350	380L	630*605*1950	530*500*1510	4±1ºC	280w	110kgs	4
FYLC-650	660L	860*610*2050	800*515*1605	4±1ºC	400w	160kgs	4
FYLC-950	960L	1250*610*2172	1140*515*1635	4±1ºC	450w	197kgs	4
