Gl2800-848 Style Outdoor Big Performance Audio Mixer

Prod Model:	GL2800-848
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Channel Option:	24, 32, 40, 48, 56
Frequency Response:	20Hz - 50kHz
Maximum Input Level 1:	Mic +34dbu (Inc Pad),CH Line +34dbu,Other Line +20
Maximum Input Level 2:	XLR +26dbu,Jack +20dbu
Sensitivity:	0vu = +4dbu at XLR Output
Mic Cmrr At 1kHz:	> 80db Typical
Thd+N At +14dbu 1kHz:	Mic to Mix out < 0.003%
Channel Hpf:	12db/Octave Below 100Hz
L, R, M Outputs:	XLR Balanced Pin 2 Hot <75 Ohm, +4dbu, +26dbu Max
Group (Aux) Out:	XLR Balanced Pin 2 Hot <75 Ohm, +4dbu, +26dbu Max
Noise:	<95dB
Hi-Fi:	Hi-Fi
Operation Mode:	Touch Control
Speaker Material:	Metal
Application:	Professional Performance
Speaker System:	Audio Mixer
Certification:	SGS
Monitor:	No LED

Product Description

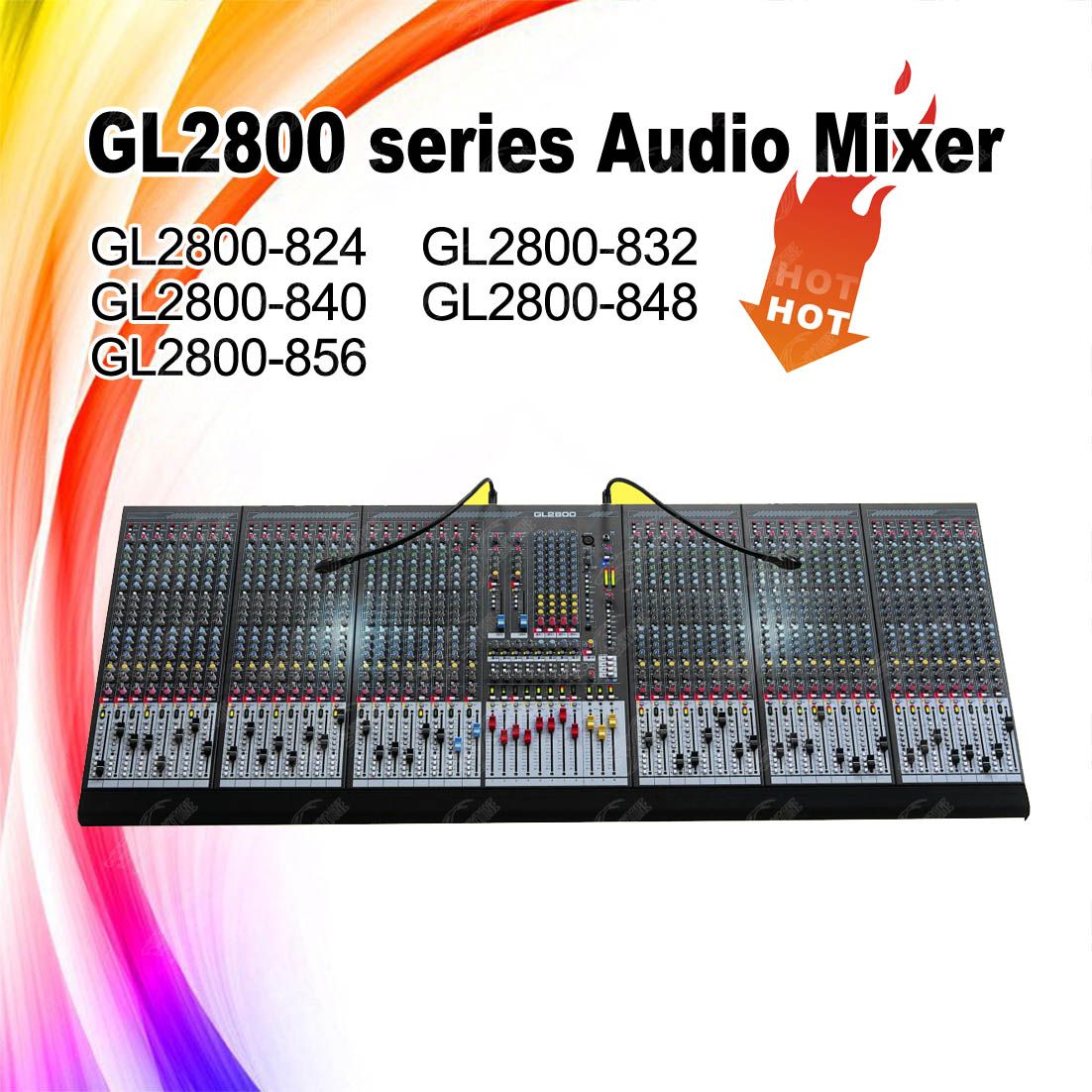

GL2800-848 Style Outdoor Big Performance Audio Mixer
48 channel mixser


GL2800 is a compact, dual function, LR, M, 8 group, 10 aux, 12× 4 matrix console. Frame sizes range from 24 to 48 channels including 2 stereo channels.


The GL2800 is an 8-bus dual function analogue mixing console designed for
Professional audio applications. Whether mixing FOH, monitors or both, recording live or in
The studio, installed in a busy venue, out on the road touring, or earning its keep in rental
Stock, the GL2800 provides the perfect solution. Engineered to the same exacting
Standards as our top of the range consoles it ensures the highest reliability and finest sonic
Performance. We have taken the outstanding success of our industry leading GL consoles
And provided yet more innovative capability and enhanced performance for modern mixing.




Features:
--24, 32, 40 and 48 channel frames
--LR and M main mixes
--8 Audio groups with pan and routing to LR and M
--10 Auxes including a dedicated stereo send
--2 multifunction stereo channels each with mic and stereo line inputs
--2 extra dual stereos provide 4 summed or independent stereo returns
--Fully featured 12× 4 Matrix
--Proper dual functionality for FoH/Monitor mixing
--Recording capable with channel direct outputs
--M can be used for centre/sub mix, LR mono sum, or engineers wedge
--Matrix external inputs with level trims and common input capability
--Stereo channel mic inputs can cross patch into matrix for ambience feed
--Responsive 4 band, 2 sweep EQ
--100Hz channel high pass filters
--Individual phantom power and polarity switching
--Wide angle channel and master meters
--Dedicated stereo monitor meters
--Per channel pre/post fader aux switching for full flexibility
--Recessed pre/post-EQ aux switching per channel
--Internal jumper plugs for aux, direct out and other options
--Mutes on all fader masters
--100mm dust protected faders
--Assignable talkback to all outputs, includes a talk switch latch mode
--1kHz oscillator / pink noise generator with patchable external output
--2-track monitoring and replay to LR
--3 headphones/earpiece sockets and local monitor outputs
--Electronically balanced XLR outputs with +26dBu drive capability
--Preamp 74dB range with +34dBu input capability for mic or line
--Ultra low noise mix head AMP design
--Uses RPS11 high performance external linear power supply
--Built-in combiner for redundant backup supply
--Individual circuit card assembly with nutted pots
--Sys-Link V2 console input/output linking option
--4-pin XLR lamp sockets Allen & Heath LEDlamp available

Technical Specification	GL2800-824	GL2800-832	GL2800-840	GL2800-848	GL2800-856
Frequency response	20Hz to 50kHz +/-0.5dB
Maximum input level	Mic +34dBu (inc pad),CH Line +34dBu,Other Line +20dBu
Maximum input level	XLR +26dBu,Jack +20dBu
Sensitivity	0VU = +4dBu at XLR output
Mic CMRR at 1kHz	> 80dB typical
THD+n at +14dBu 1kHz	Mic to mix out < 0.003%
Crosstalk at 1kHz	Fader shutoff >90dB,Mute shutoff >88dB,Inter channel >90dB
Channel HPF	12dB/octave below 100Hz
L, R, M outputs	XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max
Group (aux) out	XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max
Aux 1-10 output	TRS impedance balanced <75 ohm, -2dBu, +20dBu max, Electronic balance option <75 ohm, +4dBu, +26dBu max
Direct out	TRS impedance balanced <75 ohm, 0dBu, +20dBu max
Matrix out	TRS impedance balanced <75 ohm, -2dBu, +20dBu max, Electronic balance option <75 ohm, +4dBu, +26dBu max
Headphones	TRS, tip L, ring R, 30 to 600 ohm headphones recommended
Monitor out	TRS impedance balanced <75 ohm, -2dBu, +20dBu max
Talkback/osc out	TRS impedance balanced <75 ohm, +20dBu max
Dimensions:	944mm*650mm*170mm	1171mm*650mm*170mm	1398mm*650mm*170mm	1625mm*650mm*170mm	1852mm*650mm*170mm
Weight:	29kg	35kg	41kg	47kg	53kg
