| Prod Model: |
AT88F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Volage: |
DC12V |
| Power: |
10W |
| Dimensions: |
200mm X165 Mm |
| Anion Output: |
4X106ions/Cm3 |
| Ozone Output: |
200mg/H(30 Mints Timer) |
| Filter: |
Cold Catalyst Filter |
| Net Weight: |
650 G |
| Structure: |
Portable |
| Usage: |
Home |
| Air Volume: |
<50m³/h |
| Type: |
Activated Carbon |
| Certification: |
RoHS |
| Application Area: |
31-40m² |
| Power Source: |
Electrical |
| Operating Principle: |
Active + Passive |
| Purifying Technology: |
Air Ionizer |
| Anion Density: |
>4000000pcs/m³ |
Product Description

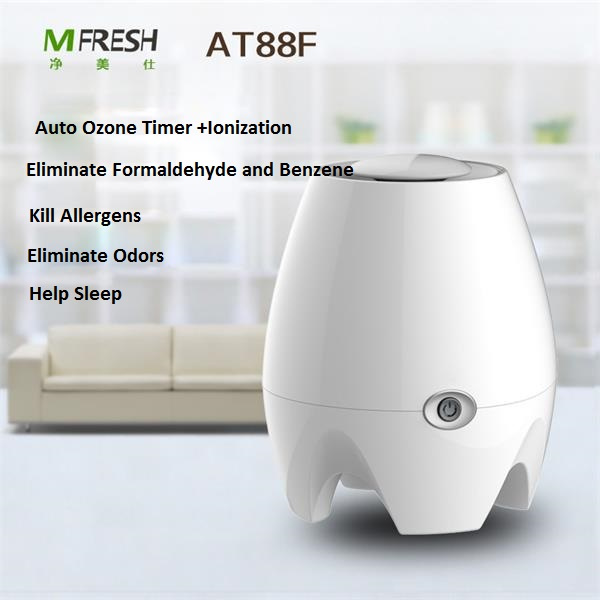

ozone and negative ions air purifier with filter(AT88F)
Specifications
Model No.AT88F
Input VoltageDC12V/Adapter
Power10W
Dimensions200mm x φ165 mm
Anion Output4x106ions/cm3
Ozone Output200mg/h(30 mints timer)
Effective Area80_140m2
FilterCold catalyst filter
Net Weight650 g
PlugEU, AU, UK, US
Features
Pure ozone generating apparatus, sterilization, disinfection, deodorization, go fast and efficient formaldehyde. Of AT88F high energy ion cabin has ion and ozone two functions, both alone operation, but also jointly, to facilitate the use of all kinds of people. Here is the detailed characteristics of this product:
Cold catalyst activated carbon filter effectively capture the larger particles in the air first to bactericidal effect, and can be easily cleaned and replaced;
release 4 million / cc of negative ions, adsorption of fine dust in the air, keep the air fresh;
Electronic variable AC power adapter transformer for 12V DC power supply, safe and reliable;
the European unique design style and safety standards, appearance and allows you ease of use;
No maintenance costs later, 10W power, energy-saving design.
30-minute timer operating mode of the ozone and ozone cycle mode
Maglev fan, clean sound, long service life.
Product Structure
The following describes the external structure diagram: AT88F international integration design concept, shape and smooth lines, sleek and beautiful, in line with the characteristics of modern home.
Whether placed where will your room a touch of beautiful scenery, highlighting your personal taste!
How to work:
AT88F high concentration of negative ions + ozone + cold catalyst activated carbon filter device. Through the special high-pressure discharge after the anion groups of the large number of products, it can be in contact with volatile organic compounds in indoor air which gas molecules (VOC), open VOC molecules chemically decomposed into carbon dioxide and water; the decomposition of hydrogen sulfide, ammonia having the same; the ion-generating device emits ions collide with air, dust particles and solid particles, the particles charged to a polymerization, the formation of larger particles by gravity settling down, while increasing the anion content and to achieve the purpose of purification.
Using pure imported ozone ceramic sheet, so that the oxygen in the air under the action of high-voltage electric field generating corona discharge by the discharge method, the oxygen decomposition reaction occurs, the free oxygen atoms, an oxygen atom is then reacted with oxygen to generate pure ozone. Thus play a bactericidal purification, air disinfection, corrosion preservation, odor removal.
How to use:
1 Plug the power adapter plugged directly into the jack on the bottom of the product, and then plug the power adapter into a power outlet.
2. Then press the power switch button on the product anion start working.
Counterclockwise rotation of the filter cover, grille and machine separation, cleaning the grille filter until the filter is completely dry and then back to the bottom of the machine opposite steps to install.
Note:
* This product may not be used without complete installation.
* This product is not user-serviceable parts inside. So do not disassemble. After long hours of work, it needs to clean or replace the product at the bottom of the filter.
Packing
Neutral Color Box
Individual G.W.: 950g
Individual Dimensions: 168x168x240mm
Carton Dimensions: 90x53x38cm
QTY per Carton: 20pcs
G.W./N.W. of Carton: 21/19kg
