GB21456 Standard Vessels for Household Induction Cookers
| Price: |
US $ 1500-1800set |
| Min Order: |
1set |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PG-V4 |
| Standard: |
GB21456 |
| Measure Method: |
Manual |
| Type: |
Standard |
| Measurement Object: |
Household Induction Cookers |
| Material: |
Q235 |
Product Description

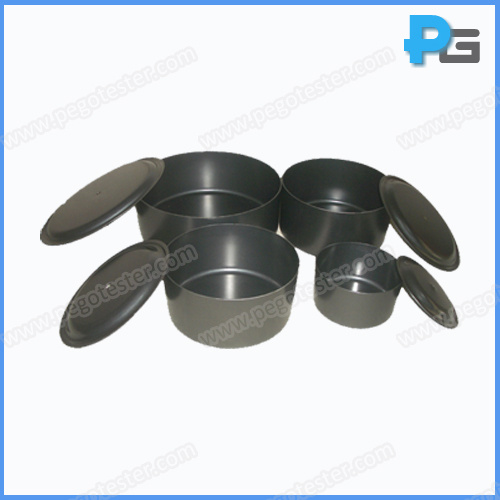

GB21456 Vessels for Household Induction Cookers
1. Introduction
The vessels are designed according to GB21456-2008, it is applied to evaluate the energy efficiency and energy efficiency grades. The vessels and lids are made of Q235 having a maximum carbon content of 0.08%. There are totally 5 vessels.
2. Parameter
| Size of vessels |
| Figure No. | A/mm | B/mm | H/mm | t/mm | Volume/L |
| B1 | Φ140 | Φ120 | 75 | 1.5 | 1 |
| B2 | Φ200 | Φ180 | 95 | 1.5 | 3 |
| B3 | Φ220 | Φ200 | 110 | 1.5 | 4 |
| B4 | Φ280 | Φ260 | 105 | 2.0 | 6 |

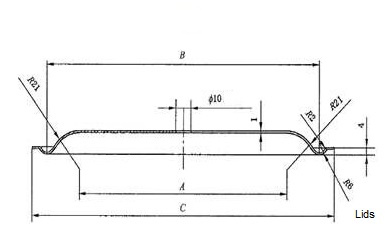

| Size of lids |
| Figure No. | A/mm | B/mm | C/mm | t/mm |
| B1 | Φ82 | Φ126 | Φ146 | 1.0 |
| B2 | Φ142 | Φ186 | Φ206 | 1.0 |
| B3 | Φ162 | Φ206 | Φ226 | 1.0 |
| B4 | Φ222 | Φ266 | Φ286 | 1.0 |
