Shenzhen Unite Bonad Instrument Co., Ltd
Shenzhen Unite Bonad Instrument Co., Ltd >> GB/T8059.2 GB/T8059.4 Standard Refrigerator Freezing Load Test Package

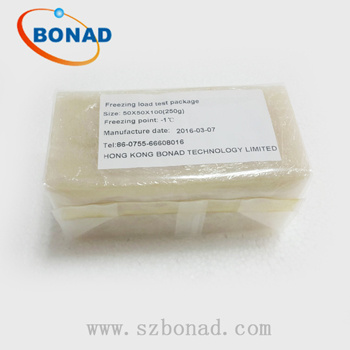

GB/T8059.2 GB/T8059.4 Standard Refrigerator Freezing Load Test Package

GB/T8059.2 GB/T8059.4 Standard Refrigerator Freezing Load Test Package
Price: US $ 25-30/Piece
Min Order: 50/Piece
Pay Type: L/C
Send Inquiry
Showroom Product Company Profile
Prod Model: BND-SYB-01
Application: Refrigerator Parts
Parts: Test Package

Product Description

1. The freezing point of the test package is -1ºC (Its thermal performance is equivalent to lean beef)
2. Packaging material is a thin layer of plastic, or with appropriate materials which can do medium vapor exchange with the environment, immediately seal the packaging material after filling,
3. When measured in ice greenhouse, must use the  -5ºC test package.
4. You cannot use in test of testing freezing capacity and load temperature rise time.
5. M package means the 500g test package, it equipped with a thermocouple in the geometric center to measure the temperature. The thermocouple contact the package directly.
nternational and Euro standard test package (ISO 15502/GB8059.1-4)
-1 ºC and -5ºC two type


WeightTemperatureDimension
0.25kg-1ºC50mm*50mm*100mm
0.5kg-1ºC25mm*100mm*200mm
0.5kg-1ºC50mm*100mm*100mm
1kg-1ºC50mm*100mm*200mm
0.125kg-1ºC25mm*50mm*100mm
0.5kg-5ºC50mm*100mm*100mm
0.5kg-1ºC50mm-100mm*100mm
0.5kg-5ºC50mm-100mm*100mm
1kg-1ºC50mm*100mm*200mm
500g-1ºC50mm-100mm*100mm



Shenzhen unite bonad instrument Co., Ltd was establish in 17th March 2016, It is a new company, we are willing to support the choice products for you
