| Prod Model: |

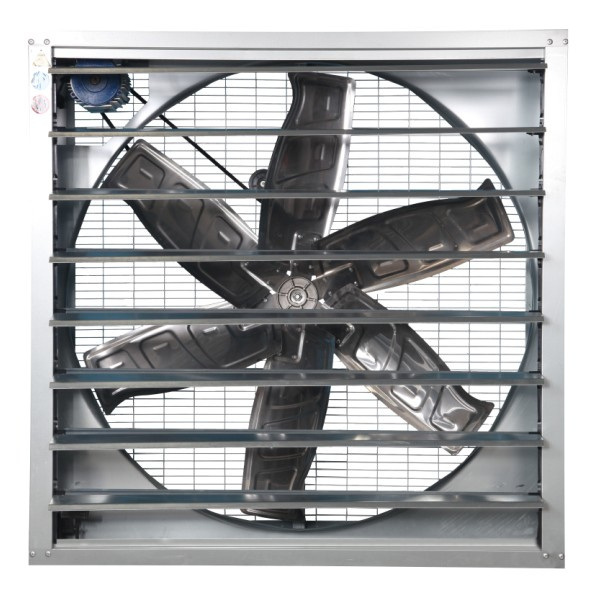

OFS-122T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Cooling Method: |
Direct Cooling |
| Certification: |
CE |
Product Description
Applications:
1. Industrial fields: Textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.
2. Civil fields: Net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.
3. Agricultural fields: Large farms, greenhouse and livestock farms, etc.
1. Rugged
2. Low cost
3. High CFM
4. Easy installation
5. Explosion proof fans follow a tradition of quality in design, materaials and construction.
1: The frame material is galvanised with advanced auto-machining techniques. The frame is pressed with flower a pattern which enhances the tensile strength & frame durability.
2: It uses a high tensile Al-alloy rim so it's light weight and tough.
3: The bearings are high tensile, durable and silent.
4: Safe and easy to disassemble for convenient maintenance.
5: High precision system is assisted by the computer, maximize the effectiveness of the fan. There are some procedure tests that have to be done to ensures the quality of the fan.
6: A one year period of warranty.
7: Special automatic centrifugal open system solves the problem, if the shutter cannot open fully, due to the contamination with the Heavy hammer-type.
8: Motor specially used for high-performance fan, with updated design for an automatic regulating devices, the belt does not need a manual adjustment.
|
Model No. |
Impeller Range |
Rotating Speed |
Air Flow |
Noise Level |
Power |
Wind Pressure |
Voltage |
Prod. Size |
|
OFS-138T |
1250mm |
480rpm |
44500m3/h |
< 75db |
1.1kw |
98Pa |
380v |
138*128*40cm |
|
OFS-122T |
1110mm |
480rpm |
35000m3/h |
< 70db |
0.75kw |
90Pa |
380v |
122*122*40cm |
|
OFS-106SL |
950mm |
56480RPM |
30000m3/h |
< 68db |
0.55KW |
80Pa |
380V |
106*106*40CM |
|
OFS-90T |
850mm |
600rpm |
25000m3/h |
< 65db |
0.37kw |
68Pa |
380v |
90*90*40CM |
The company is located in Xiamen which is a beautiful coastal city in the Southeast of China. Our company is one of the largest leading manufacturers of ventilation equipment(fan, exhaust fan, cone fan, axial fan, wall mount exhaust fan, fiberglass exhaust fan, axial duct fan, industrial fan, greenhouse fan, fresh air units, horizontal airflow fan, ventilation fan, heavy hammer fan, evaporative cooling pads, evaporative air cooler and cooling systems ect. ) in China. By the support of advanced management and strong engineering teams, we professionally design and produce high quality, energy saving and environment-friendly products. We control the whole producing process, sale up to a fist class especially on the after-sale service. We can also offer professional ventilation plan and installation service for our clients. We are known for high quality, innovative products, quickly shipping and friendly customer service. Our primary method of marketing our products is through equipment dealers/distributors, buying groups, industrial distributors and special retail. Please contact us and we would enjoy talking to you about a ventilating, cooling or heating solution.
