| Prod Model: |
E10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Fully Automatic Split Type Burner |
| Co: |
Less Than 80ppm |
| Life: |
Above 11000hr |
| Conversion Rate: |
90% |
| Chx: |
Less Than 50ppm |
| Nox: |
Less Than 10ppm |
| Plate: |
Ceramic Plate with Catalyst |
| Max. Process Temperature: |
1500° F, 815° C |
| Working Pressure: |
2800~5000PA |
| Typical Applications: |
Incinerators,Indirect Air Heating,Textile Drying |
| Function: |
Hot Air Boiler |
| Fuel: |
Gas-Fired |
| Installation: |
Packaged Boiler |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Pressure |
| Usage: |
Industrial |
| Structure: |
Ceramic |
| Media: |
Infrared |
| Water Circulation: |
Infrared Burner |
| Manufacturing Level: |
CE |
| Burning Style: |
Infrared Burner |
Product Description

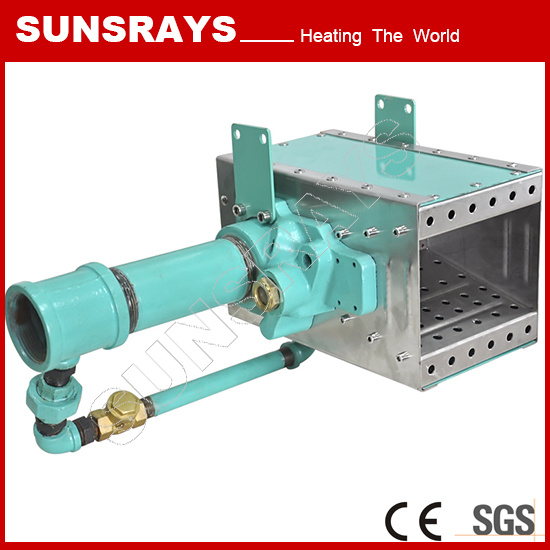

Fully automatic split type burner

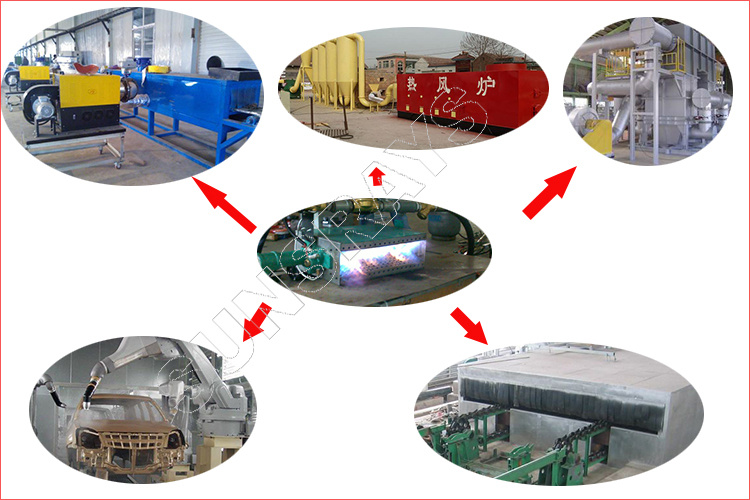

E series automatic separated burner is the most reliable of the modern industrial process heating by burning machine. Mainly used for coating pretreatment of drying, curing oven, baking food, printing hot air drying, preheating furnace, furnace foam, heat setting furnace, combustion to oil furnace, removal of odor treatment and other hot air treatment place.
The specifications:
| Model | E10 |
| Type | Nozzle Mixing |
| Max. Process Temperature | 1500° F, 815° C |
| Size | Modular |
| Conversion rate | 90% |
| Working pressure | 2800~5000pa |
| Fuels | Natural Gas, Propane |
| Customized | Yes |
Fully automatic split type burner Feature
Safety: the design of fire detection, protection and other multiple protection design, to ensure safe and safe!
High efficiency: using multiple air and gas mixture combustion mode, combustion efficiency and stability
Simple structure, easy to install: the whole system consists of three parts: the burner, gas transmission, ignition and control, the structure is simple and compact, easy to install and debug.
Energy saving and environmental protection: full combustion, high combustion efficiency, no waste water, waste gas, noise pollution, energy saving, environmental protection, economic benefits.
Precise control: according to customer demand, with PLC, inverter, servo motor and other accessories, can achieve accurate combustion control.
Other products you may be interested in:
| Model | Size | Weight | Gas consumption | Calorific value | Uses |
| SGR1602 | 560x135x185mm | 8.0kg | 0.46kg/hr | 5400kcal/hr | powder coating or food drying ect |
| K580 | 580 x 140 x 180mm | 6kg | 0.45-0.6kg/hr | 5-8kw/hr | Industrial heating |
| P400 | 410x100x70mm | 3.9kg | 0.3kg/hr | 3.0-3.5kw/hr | Modularization,Large area heating |
| V200 | 210x 160 x 60mm | 1.4kg | 0.25kg/hr | 4.5-4.8kw/hr | BBQ |

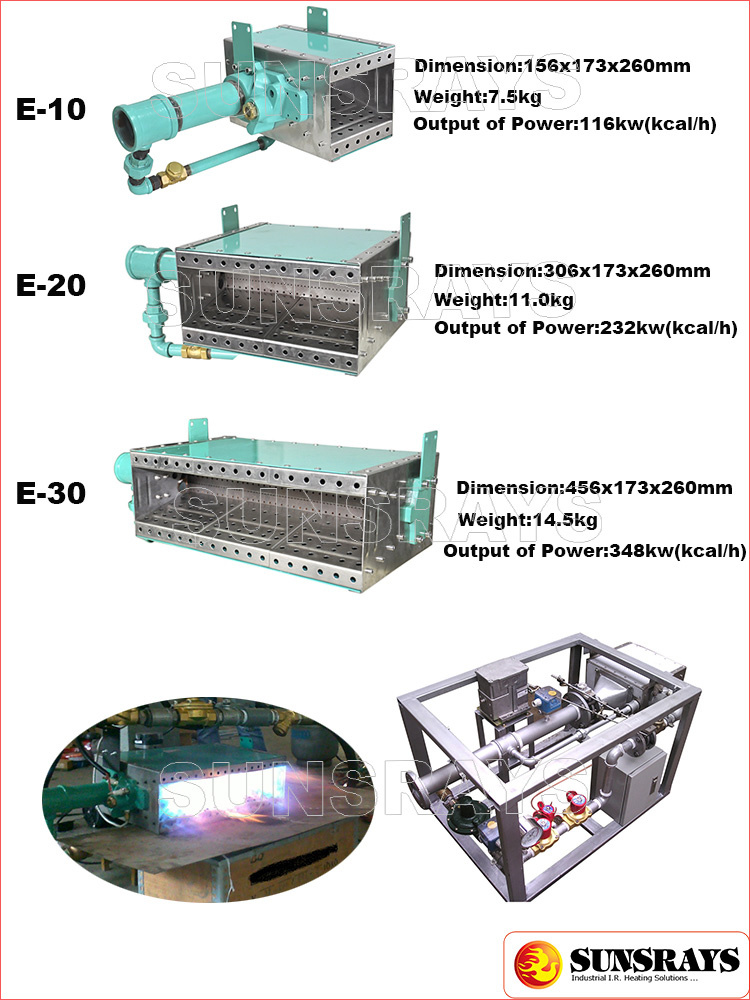

| E30 | 456x 173x260mm | 14.5kg | Customized | Customized | Hot air treatment |
| TC200 | 270 x 170 x 55mm | 1.3kg | 0.25kg/hr | 3.2kw/hr | Coffee baking machine or Food baking etc. |
Company information:
Sunsrays heating science and technology company is a professional provider of industrial i.R.Heating solutions.Our products and systems are mainly used in the process heating fields such as coating industry, food industry, etc.
Sunsrays heating ltd.Has lots of patents.We have also built the cooperative relationship with some universities and research instituts.
We believe that by our unremittingly innovation, outstanding products quality, and thoughtful customer service, sunsrays will by all means be the best choice of industrial i.R.Heating systems for customers though out the world.
