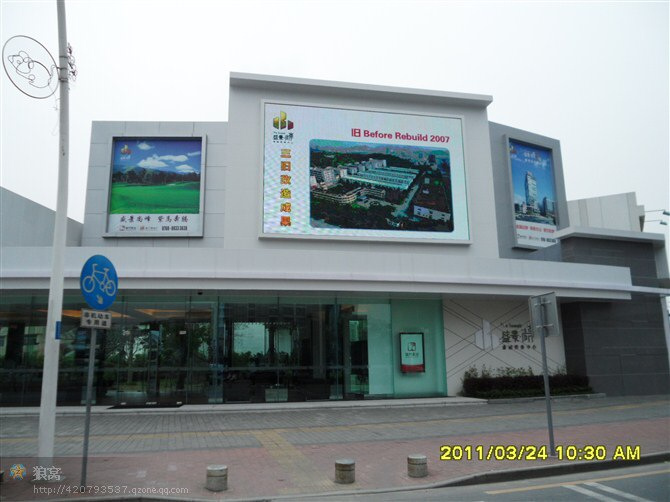

Full Colour Outdoor P16 LED Display
| Price: |
US $ 833/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SM-P16 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
CE/FCC/CCC/UL/RoHS/ ISO9001: 2008 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/2 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
Product Description
Professional Factory Outdoor LED Display for Advertising
We produce one color LED display/ two color LED display/ full color LED display/ LED display used indoor/ LED display used outdoor/ LED display used for text and graphic/ LED display used for video.
Other
- The chips are 14mil LED display special chips, and they are antistatic for over 5000V.
- The copper brackets and silica gel have high quality, and they are electric, heat-dissipated, and anti-ultraviolet ray.
- Professional spectral and color separation standard have ensured the coherency of the display's color.
- The materials of PCB accord with the standards of UL certification, and the copper on them are over one ounce.
- All connectors are phosphor copper, and they are plating for 2μ , so they are acid-resistant and alkaline-resistant.
- The display is accordant with RoHS standards.
| number | Item name | Parameter and index |
| unit module |
| 1 | LED encapsulation mode | φ 4oval DIP |
| 2 | Horizontal axis | 120° |
| 3 | Vertical axis | 60° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 16mm |
| 6 | Scan method | 1/2 |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 16× 8pixels |
| 9 | Module dimensions | 256mm× 128mm |
| 10 | Module type | incorporated lamp and drive |
| 11 | Module working voltage | +5V |
| 12 | Module average power | 5W |
| 13 | Module maximum power | 20W |
| 14 | Module shell material | PC |
| 15 | Module mask material | PC |
| unit cabinet |
| 1 | Module layout | 4× 6 pieces |
| 2 | Cabinet resolution | 64× 48 pixels |
| 3 | Cabinet maximum power | 600W |
| 4 | Cabinet average power | 150W |
| 5 | Cabinet dimension | 1024mm× 768mm |
| 6 | Cabinet material | steel/aluminum alloy |
| 7 | Cabinet color | black/gray |
| 8 | Protection grade (front/back) | IP65/IP54 |
| Entire screen |
| 1 | Application environment | outdoor |
| 2 | Brightness | > 8000 cd/m² |
| 3 | White balance coordinates | X=0.29, Y=0.31 |
| 4 | contrast | 64000: 1 |
| 5 | Color temperature | 8000K |
| 6 | Pixel density(pixels/m² ) | 3906 |
| 7 | Average consumption(W/m² ) | 191 |
| 8 | Maximum consumption | 763 |
| 9 | Power source | AC220V/50HZ or AC110V/60HZ |
| 10 | Operating temperature | -20º C ~ +50 º C |
| 11 | Operating humidity | 10%--90% |
| 12 | Storage humidity | -30º C~ +50º C |
| 13 | Refresh frame rate | 60Hz |
| 14 | Refresh rate | 480Hz |
| 15 | Viewing distance | 15-300m |
| 16 | grayscale/color | 16.7M |
| 17 | Brightness adjustment | 100 manual levels /100 auto levels |
| 18 | Control method | synchronous with the computer display |
| 19 | Data transfer range | Network c able: 100m |
| 20 | Computer operating system | WINDOWS (98, 2000, XP, Vista, 7) |
| 21 | Video signal | VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on. |
| 22 | Longevity | ≥ 100000 hours |
| 23 | Certification | UL/CE/CCC |
