| Prod Model: |
fox-p5-indoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Dots: |
32*32 |
| Module Size: |
160*160mm |
| Color: |
1r1g1b |
| Warranty: |
3 Years |
| Frame Frequency: |
60Hz |
| Refresh Frequency: |
300Hz |
| Horizontal Viewing Angle: |
120° |
| Best Viewing Distance: |
5-50m |
| Mtbf: |
10000hours |
| Life Span: |
100,000hours |
| Tube Chip Color: |
Full Color |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| IP Rating: |
IP60 |
| Pixel Pitch: |
5mm |
| Pixel Density: |
40000dots/M2 |
Product Description
P5 INDOOR SPECIFICATION :
| Description | Technical parameter |
| Unit module | Module size | 320*160mm |
| Pixel pitch | 5 mm |
| Pixel density | 40000dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | SMD 3 in 1 |
| Pixel resolution | W: 64dots*H: 32dots |

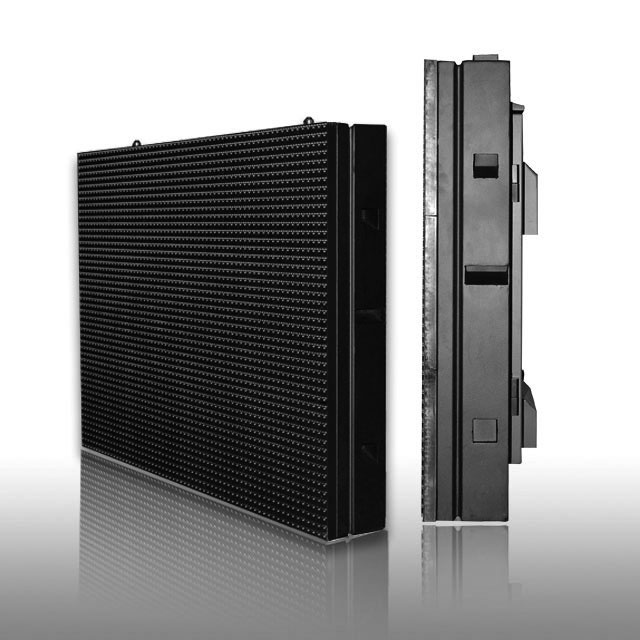

| Cabinet | Dimension | 960mm*800mm*120mm |
| Quantities of module | 15 pcs |
| Power supply | 3 pcs |
| Thermal discharge | Fan : no need |
| Total weight | 40kg |
| Best viewing angle | 6-100m |
| Temperature | Storage: -35degree~+85degree |
| Working: -35degree~+85degree |
| Thickness | 12cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 300W |
| Max. Power consumption | ≤ 800W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 8000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 960*800 |
| Communication distance | Network calbe: 100m, Multi-model: 500m, Single-model fiber: 20km |
| Software | LED media player |
