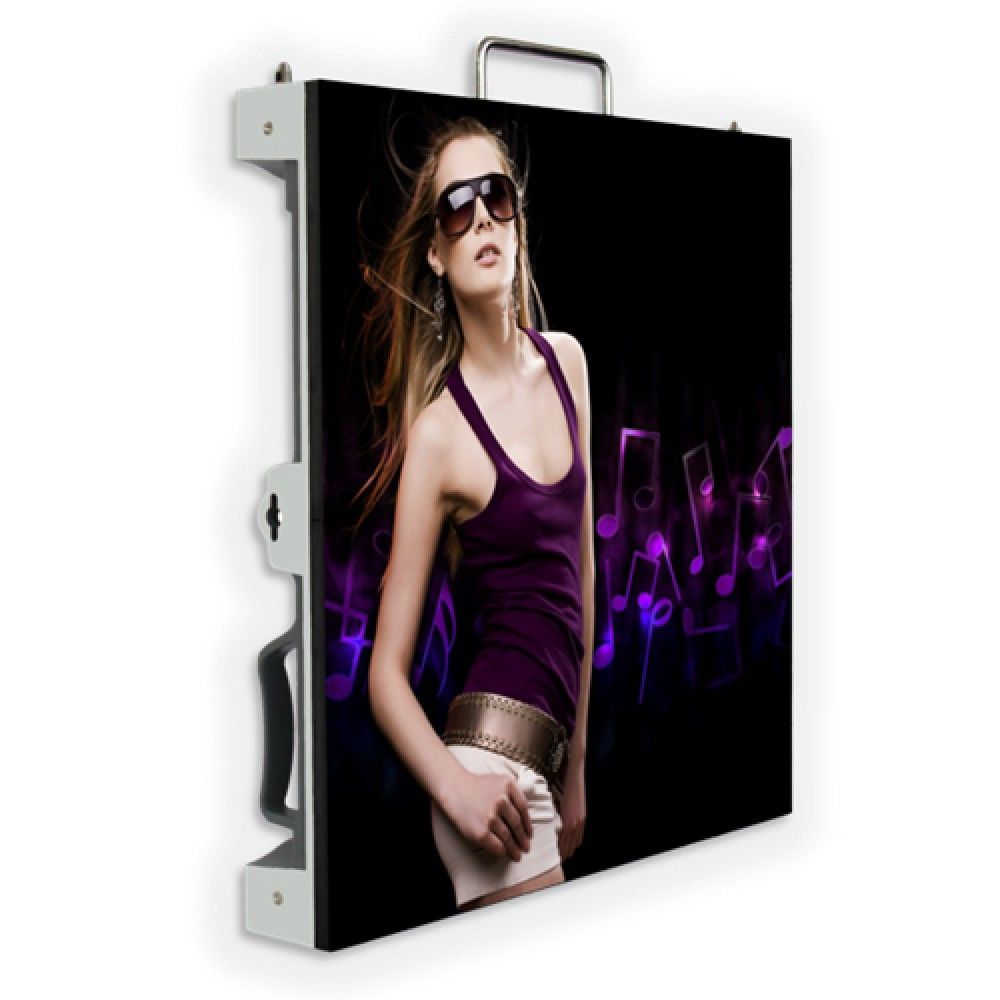

Full Color P5 Full Color Indoor Advertising LED Display

Prod Model:	Fox- p5-indoor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	P5 Full Color
Usage:	Full Color LED Display
Size Of Modual:	320*160mm
Resolution Of Unit Board:	64*32
Power Consumption:	350W/Sqm
Brightness:	More Than 2500CD/Sqm
Viewing Distance:	>5m
IP Grade:	IP45
Mtbf:	10000hours
Life Span:	100,000hours
Tube Chip Color:	Full Color
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	600W / m²
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Stage Performance
Certification:	CCC
IP Rating:	IP45
Pixel Pitch:	5mm
Pixel Density:	40,000dots

Product Description

1-high brightness
2-high definition
3-high refresh rate
4-high stability
5-7 years warranty
Unique requirements of the LED display commercial advertising

The LED display for commercial advertising is customized for the company engaging in outdoor advertising, it is suitable for play commercial advertising in outdoor environment according to his basic requirements hi has the following main technical features.

1-)Demanding strong protection.
Most of the LED display for commercial advertising are operated in outdoor environment they must be working well under the extreme weather or condition therefore it must have strong ability of waterproof and protection against strong wind, thunder, lightning, high temperature, low temperature and corrosion.

2-) Long time running.
The LED display for outdoor advertising are usually running from 6 o'clock in the morning until midnight without any break.

3-) Long lifespan.
To maximize the benefit of the customers the LED display must have a long lifespan of 5 to 8 years in general or even longer.

4-) Energy Saving.
The common LED display consumes a lots of electricity if it work without good saving measures the operational cost of electricity will be very high, no advertising company would like to see that happens.

5-) High brightness.
Especially the spectator need to see the picture on the LED display clearly in sunshine from a certain distance so the brightness of the display must be high enough.

6-) wide viewing angle
To increase attraction for viewers and passersby the LED display need wide viewing angle to capture the attention of any passerby from 10 meter to 1000 meter.

7-) excellent Uniformity and stability for picture.
A lot of advertising are showed in the way of picture so the picture must be showed evenly and stably on the LED display.

8-) Well appearance for long.
The LED display must long maintain in good appearance and prevent from getting worse quickly by the effects of light decay and color fading.
Check the technical products information as below

No.	Specifications
1.	Part No.	P5  full color led display
2.	LED chip	Taiwan/Silan/Cree/Cree Cotco
3.	Physical Pixel Pitch	5mm
4.	Physical Pixel Density	4 0 ,000dots/m 2
5.	Pixel composition	1Red, 1Green, 1Blue
6.	Moduel Size	320mm*160mm
7.	Moduel resolution	64dots*32dots
8.	Cabinet thickness	< 140 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and uninstall.
10.	Brightness	≥ 2500 nits
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥ 120° ,     Vertical  : ≥   50°
13.	Viewing distance	5m-48m
14.	Soft Rubber Mask	To protect player and LED display itself.
15.	Scan frequency	≥ 380Hz There will be one receive card in each cabinet  , so that the LED display won' t sparked. Also it is very easy to move and connetct
16.	Video Frame Rate	≥ 60Hz
17.	Color temperature	6500° K to 9300° K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥ 100, 000 hours
20.	Weight	45Kg  /sqm
21.	IP Grade	IP45 /IP43( front side and rear side)
22.	Average power consumption	350W/sqm
23.	Peak power consumption	650W/sqm
24.	Input voltage	110~240V
25.	Operating Environment	Temperature: -20+50          Humidity: 10%95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video, RGB, VGA, DVI

 FAQ:
Q:What is your hot sale product?
A:P10 full color is best selling for Outdoor; P6 full color is best selling for indoor.
Q:What different from 1/4 scaning with 1/8 scaning?
A:1/4 scaning is better than 1/8, the screen will be high definition,high brightness.
Q:What different from LCD with LED?
A:1.LED is more energy save than LCD , have a high definition .
     2.LED have a big viewing angle, it can up to160 degree.
     3.LED can working well in a strong shine day.
Q:How to ensure the good quality of LED display?
A:Optimized structure can improve the efficency of installing screen to creat value;Aging can improve the quality, ensure reliability.
Q:The advantage of  LED SMD
A:1.High resolution  ;2.Big viewing angle; 3.Rugged ; 4.Vivid Mixture Color Effect ;5.Color Consistency;       6.Enhanced Contrast Ratio;7.Mass Production; 8.Long Service Life.
