| Prod Model: |
P6 |
| Cost: |
High Cost-Effective |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Light-Weighted Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Mall, Concerts, Shows and Event, Airport |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Density: |
27777 Dots/Sqm |
| System Operating Platform: |
Win XP, Win 7, Win 8, Win 8.1, Win10 |
Product Description
Hot Sale P3 P4 P5 P6, P7.62, P10 Slim LED Sign (Rental/Fixed)
1) Relatively low cost (factory)
2) Light weighted Cabinets, saving shipping cost, esp by air.
3 High definition of displaying image.
4) Easy installment and low maintenance cost
5) Good heat emission capability.
6).Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Contact Us Now to know more: mobile: +86 13538127671
| Item No. | P3 | P4 | P5 | P6 |
| Classification | Full color | Full color | Full color | Full color |
| Pixel pitch | 3mm | 4mm | 5mm | 6mm |
| Size of module (mm*mm) | 96*96/192*96 | 128*128 | 160*160 | 192*96 |
| Pixel density | 111111 dots/m2 | 62500 dots/m2 | 40000 dots/m2 | 27777 dots/m2 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED encapsulation | SMD2020 | SMD2020 | SMD3528 | SMD3528 |
| Resolution of module | 32*32/64*32 | 32*32 | 32*32 | 32*16 |
| Best viewing distance | 2m | 2m | 3m | 4m |
| Best viewing angle (Horizontal/Vertical) | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Max power consumption | 1300 W/m2 | 1300 W/m2 | 1200W/m2 | 1200W/m2 |
| AVG power consumption | 250~550 W/m2 | 250~550 W/m2 | 300~650W/m2 | 300~650W/m2 |
| Size of standard cabinet(mm) | 576*576 | 512*512 | 640*640 | 768*768 |
| Resolution of standard cabinet | 192*192 | 128*128 | 128*128 | 128*128 |
| Weight of standard cabinet | 15kg | 12kg | 18kg | 30kg |
| Driving method | 1/16 Scan | 1/16 Scan | 1/16 Scan | 1/8 Scan |
| Frame frequency | 60Hz/s | 60Hz/s | 60Hz/s | 60Hz/s |
| Refresh rate | ≥1000HZ | ≥1000HZ | ≥1000HZ | ≥1000HZ |
| White balance brightness | ≥1000cd/m2 | ≥1300cd/m2 | ≥1500cd/m2 | ≥1800cd/m2 |
| Working /Storage environment temperature | Working:-20°C~50°C Storage:-40°C~60°C |
| Operating ambient humidity | Working:10%--95% HR Storage:10%--95% HR |
| IP grade | IP20~IP54 |
| Working voltage | AC 220±10% or 110±10% |
| Grey scale | 14 bits per color |
| Brightness adjustment | 256 levels of each color (RGB) can be adjusted manually |
| Signal input | RF, S-Video, RGB, RGBHV, YUV, YC.Ect |
| Control system | Sending Card+ DVI Graphic card+ Receiving card+ Video Processor ( optional) |
| MTBF | ≥5000 hours |
| Life span | ≥100000 hours |
| Malfunction dot rate | Less than0.0001 |
| Transmission distance | LAN cable less than100m;Optic fiber transmission :MMF less than 500m, SMF less than 20km |
Application Areas:

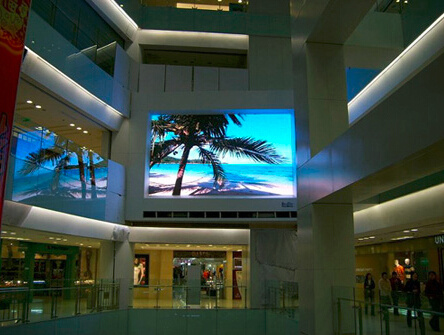

Indoor advertising, digital billboards, advertising in big companies
1. Sport stadium, fields, and playgrounds.
2. Airports, bus stations and railway passenger terminals.
3. Facades of shopping malls, department stores, banks and car dealerships.
4. Architecture and social projects, information systems in cities.
5. Show-business, concerts, festivals, motor shows and other public events.
Why Chengxinguang(CXG) LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: ACE LED) is located in Shenzhen, China, a major production base of global LED display screen industry. Chengxinguang is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
Chengxinguang is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
Chengxinguang uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose Chengxinguang as their partner for LED displays.
