Product Description

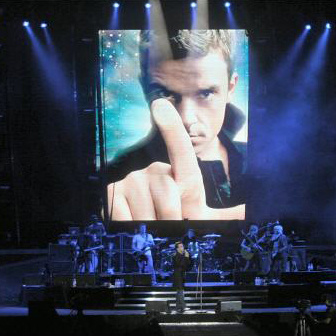

Full Color Video displays can display everything from graphics, animations, text, text overlay to full and real-time video. The video option can take a signal from DVD, VHS, cable TV, or even directly from a video camera.
Video displays are capable of displaying 16.8 million colors (256 grayscale) from a color palette of 68 billion colors and 4, 096 shades of grayscale. They have a frame rate of 30-75 frames per second and a refresh rate of 180 Hz.
Can save you the learning curve, and work of putting together your system.
ITEM MODEL
PH16 OUTDOOR WEATHERPROOF
1 Real Pixel Pitch 16mm
2 Pixel Configuration: 2-Red, 1-Green, 1-Blue
3 Pixels per Panel 3072 pcs per panel (3906 pixels per m2)
4 Number of LEDs: 12288 pcs per panel
5 Viewing Distance : 20m—40m
6 Unit Module Dimension: 256mm× 128mm (16dots× 8dots)
7 Unit Panel Dimension: 1024mm(w)× 768mm(h)× 120mm(d)
8 Pixel Matrix per Panel: 64dots× 48dots
9 Unit Panel Weight: 55kg
10 Display Capabilities: Video, Text, Graphics
11 Input Signal: HDTV, NTSC, PAL, S-Video, VGA
12 Display Colors: 16.8 million colors
13 Graduation Method: 1, 024 Shades Per Color
14 Power Consumption per Module: 1200 Watt (Peak White)
15 Lifetime of LEDs: More than 50, 000 Hours
16 Input Voltage: AC220V/380V(three items and five lines)
17 Input Power Frequency: 50/60Hz
18 Vertical Viewing Angle: 70·
Horizontal Viewing Angle: 140·
19 Way of Drive: Static Constant Current
20 Brightness: >5500cd per m2
21 Color In each pixel, there are 256 level gray for red, green and blue representatively, and 16777216 color in total.
22 Support Mode VGA800*600, 1024*768 display synchronically with the computer, correspondence dot to dot
23 Lightness Conditioning Each color 256 level brightness, software conditioning
24 Communication Distance For 5 types of line, no more than 150 meters; For fiber, no more than 5000 meters.
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
Welcome to our Showroom and My Products for more detailed offer info.
