| Prod Model: |
iDOT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
2200 Nit/1500 Nit/900 Nit/420 Nit |
| Viewing Angle: |
140/140 |
| Refresh Rate: |
More Than 1000 Hz |
| Gray Scale: |
12 Bits |
| Colors: |
687 Billion |
| Control System: |
PC Based Dynamic Capture & Mapping. |
| Lifetime: |
> 50, 000 Hours |
| Power Supply: |
AC 220V±10%, 50/60Hz |
| Working Environment: |
Temperature -30~+50degree, Humidity 10-90%Rh |
| Display Type: |
LED Dot Matrix Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Image & Text Display |
| Application: |
Shopping Guide |
| Certification: |
RoHS |
| System Operating Platform: |
WIN XP |
| Pixel Configuration: |
RGB 3in1 SMD3535 |
| Pixel Pitch: |
35mm/40mm/55mm/80mm |
| IP Rating: |
IP66 |
| Pixel Density: |
816sqm/625sqm/330sqm/156sqm |
Product Description
Specifications

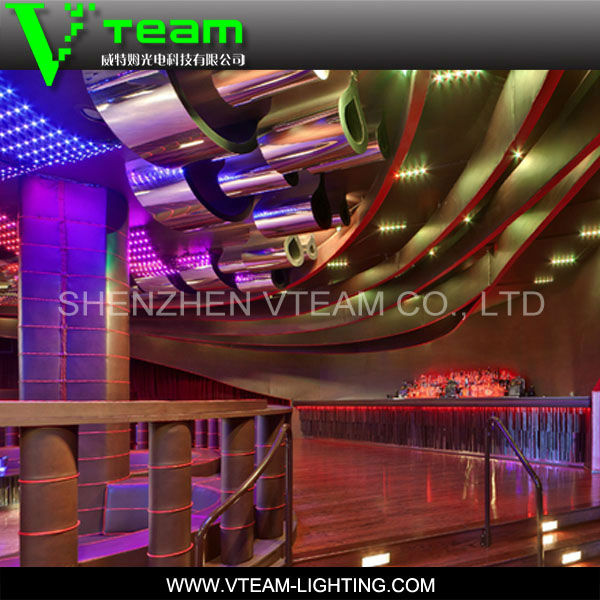

Starry sky ceiling
1. IP66
2. Ultra-thin and double display
3. Irregular shaps with flexible installation
4. CE ROHS
IDot is a highly transparent, soft full color LED display system, with features as flexible installation, light weight, high transparency, which are adapted to various kinds of installation, such as bending, folding, winding, swing etc...Its highly artistry and creativity can be free to assemble into various shapes, always a best choice for the innovation and Design Company.
Main Advantages:
1. Can be made with 35/40/55/70/80/110/140/160mm for pixel pitch, pixel pitch can also be customized.
2. Square or rhombus structure design, capable of double side display (Patented).
3. Magnetic buckle (Patented) is suggested, easy connection for rental business.
4. Two-tone round base, high contrast
5. IP 66 for both indoor and outdoor applications
6. Rich installation accessories, flexible installation, adaptation to different scenarios
7. High transparency, easy for light, smoke and sound on stage going through
8. Can realize various irregular shapes and snapshot effect without considering the restrictions of using environment.
Application:
Party, Concert Stage lighting and Fashion Show
Decoration in building lighting
Decoration in night Club & Bars
|
Module |
iDOT-35 |
iDOT-40 |
iDOT-55 |
iDOT-80 |
|
Pixel Pitch |
35mm |
40mm |
55mm |
80mm |
|
Pixel Density/sqm |
816 |
625 |
330 |
156 |
|
Brightness |
2200 nit |
1500 nit |
900 nit |
420 nit |
|
Max Power Consumption |
370 W/sqm |
280 W/sqm |
150 W/sqm |
70 W/sqm |
|
Ave Power Consumption |
180 W/sqm |
140 W/sqm |
75 W/sqm |
35 W/sqm |
|
LED Type |
RGB 3in1 SMD3535 |
|
Viewing Angle |
H140° V140° |
|
Refresh Rate |
≥1000 Hz |
|
Gray Scale |
12 bits |
|
Colors |
687 Billion |
|
Control System |
PC based dynamic capture & mapping. |
|
Lifetime |
> 50,000 hours |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Protection Level |
IP66 with led string , IP54 with signal distributor and power box |
|
Working Environment |
Temperature -30~+50degree, Humidity 10-90%RH |
|
Certification |
CE,ROHS |
