| Prod Model: |
ID-P10-RGB(SMD)-3X1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Poosled |
| Module Size: |
320X160 Mm |
| Screen Size: |
1010X210X90mm |
| Package Size: |
1056X232X105mm |
| Nw(Kg): |
5.5 |
| Gw(Kg): |
8.8 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Image & Text Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
Segment LED Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| System Operating Platform: |
Win XP, Win 7, Win 8 |
Product Description

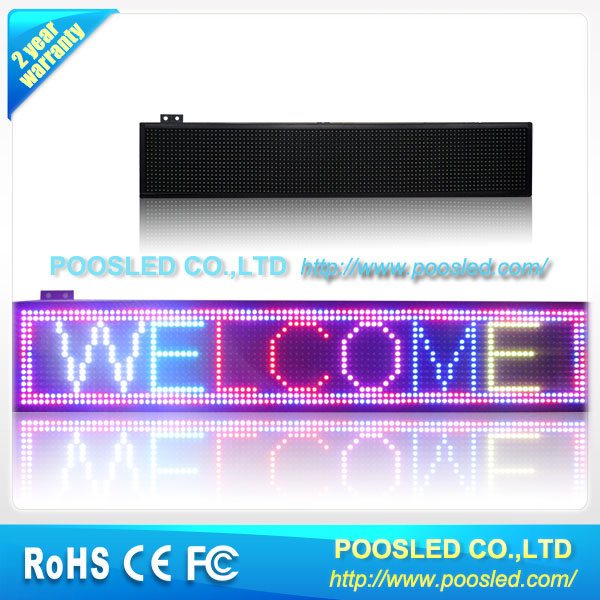

Full Color indoor LED scrolling display
ID-P10-RGB(SMD)-3X11. Display English or different characters as well as graphic symbols.
2.
41 methods of displaying your message (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left, etc. )
3.
9 Fonts, each with regular, bold and wide mode. User can add or modify the fonts. 67 pieces of other European characters
4. Built-in timer to power on/off during the day
5. Built-in real time clock.
4 kinds of time and 5 kinds of date formats. Customized time/date format are also available
6. With
memory capability of 16k bytes for text, 24k bytes for graphics, max. 250 text files and 250 graphic files.
7.
8 programmable display speeds8
.8 pause periods from 0 to 60 seconds9. Count-down/count-up function
10. Segmented display capability to allow
separate control of sections of the display
11.
Sequencing multiple messages. Built-in scheduler for up to 30 tasks. 3 priority setting enables scheduling by week, month or year.
12. Duplex function allows user read data from one sign by
a PC and copy it to another sign
13. Up to 128 units can network via
RS232 communication14. Interface of the managing software can be in
multiple languages15.
Low consumption16. Fixing methods: Desk, wall or ceiling
17. Display Real Temperature (optional)
| ID-P10-RGB(SMD)-3x1 |
| Specifications |
| 1 | Sign's name | P10-RGB(SMD) Fullcolor Led Sign |
| 2 | Item classification | led chips(Cree for RED,Silan for GREEN&BLUE) |
| 3 | Pixel pitch(mm) | 10 |
| 4 | Density(pixel/squ.m) | 10000 |
| 5 | Module size(mm) | 320*160 |
| 6 | Pixels(w*h) | 32*16 |
| 7 | Configuration | SMD-RGB |
| 8 | Led sign's size(mm) |
|
| 9 | Resulution |
|
| 10 | Max. texts | characters,pictures,Animation,Video |
| 11 | Display Color | Fullcolor |
| 12 | Brightness | 800-1000mcd |
| 13 | Brightness adjustment | use the software to adjust |
| 14 | Best viewing distance | 10-50m |
| 15 | Best viewing angle | horizontal:100-120 degree, vertical:30-60 degree |
| 16 | Average power consumption | 300w/squ.m |
| 17 | Max.power consumption | 600w/squ.m |
| 18 | Control mode | Asynchronous |
| 19 | Drive mode | 1/4 scan |
| 20 | PC operating system | win98,winxp,win2000,win7 etc.. |
| 21 | Control system | RS232 Control |
| 22 | Software | LED EDITOR / LED CENTER (more than 2 squm,will use LED EDITOR) |
| 23 | Frame rate | >60hz |
| 24 | Refresh rate | >180hz |
| 25 | Gray scale | 256 levels |
| 26 | Working temperature | storage:-40~+75°C |
| 27 | Woking Voltage(AC) | 100-230V |
| 28 | Supply Voltage(DC) | 5V |
| 29 | Power(W) |
|
| 30 | Power Supply | Chenglian with CE certification |
| 31 | MTBF(Mean Time Between Failure) | >5000 hours |
| 32 | Display lifespan | >100000 hours |
| 33 | Frame(Cabinet) | Aluminum frame |
| 34 | Using environment | Indoor&Semi-outdoor |
