| Prod Model: |
HHGD-122 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP60 |
| Certification: |
CE |
Product Description
led screen,moving led screen,led video wall,building surface glass window led video wall, led wall screen, led light decoration video wall,
LED video ceiling,LED disco ceiling,indoor LED video ceiling,outdoor LED video ceiling,shopping mall LED video ceiling,shopping mall LED video wall,2015 revolutionary LED video oled screen wall price

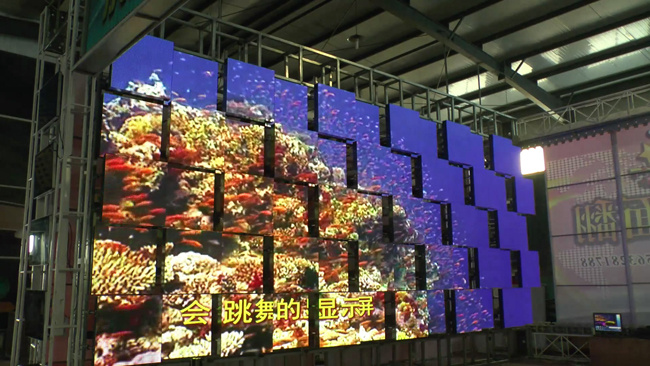

LED Ceiling or LED Canopy is a huge full color led display installed in the ceiling of indoor commercial street,integrating sound, light and electricity technology.
Pixel Pitch: P10, P18, P25, P32, P45, P80
P80 Specifications |
|
|
|
|
|
sample size |
77.1m(L)x22.6m(W)=1742.46m² |
Pixel Pitch(mm) |
80mm |
pixel density
(pixel/m² ) |
156 pixels/ m2 |
average power consumption(W/m2) |
30 W/m2 |
maximum power consumption(W/m2) |
50W/m2 |
Horizontal Viewing Angle |
140°(+70/-70) |
Vertical Viewing Angle |
60°(+30/-30) |
Working Humidity |
10%-90% RH |
Working Temperature |
-30°C~+50°C |
Minimum Viewing Distance |
10m |
Color Gamut |
1.7billion |
Gray Scale Level |
4096 levels |
Brightness adjustment |
100levels |
Frame Rate |
>60HZ |
Refresh Rate |
>300HZ |
Power Supply |
AC220V/50HZ |
Blind spot rate |
<0.0001 |
Earth leakage current |
<2mA |
Scanning |
static |
Control |
Synchronous with computer monitor |
Signal Connection |
CAT5 UTP cable transmission |
Operating System |
WINDOWS(98,2000,XP,Vista) |
Signal Format(with video processor) |
VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
Control Distance |
GB(National Standard) cable transmission distance:100m |
Multimode fiber transmission distance:500m |
Singlemode fiber transmission distance:10km
|
Honghai Photoelectric Group Co., Ltd. is an outdoor advertising equipments company in China. We specialize in all kinds of Outdoor advertising equipments. Our main products contain: Trivision billboard/LED trivision billboard/LED screen/scrollig light box/rotating equipment/bus shelter etc.
We adopt advanced technology to realized all sets digital control production. Thousands of projects were achieved by our company are all over China and other countries. In 2010, our trivision display was used exclusively in Shanghai World Expo.
