| Prod Model: |
RO-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motive Force: |
Electric power |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Chemical Industry, Beverage Industry |
| Capacity: |
by Order |
Product Description

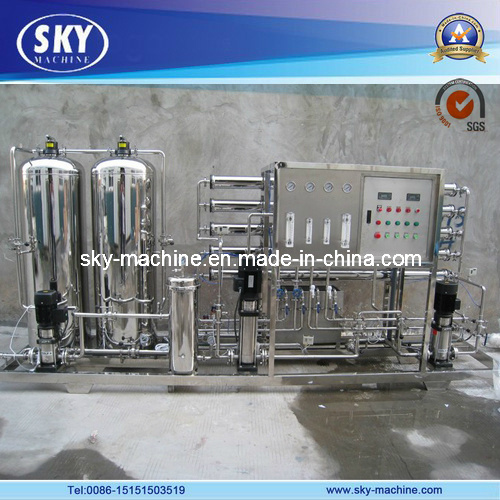

Full Automatic Water Purifier for Brackish Water Desalination
RO water filter system can treat tap water, well water, brackish water and sea water. This water filter can be used for drinking water, bottled water and industrial. Water filter using the advanced skills of reverse osmosis to purifying water. The RO membrane of this water filter is USA Hydranautics, this is the best RO membrane brand.
A. Description:
RO water treatment, the raw water is tap water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤ 10μ S/cm² .
B. Process:
Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ water softener ( optional) + security filter +high pressure pump+ reverse osmosis+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points
C. Parameters:
1. Capacity: 1000L/H
2. Rated power: 2Kw/H
3. Voltage: 220V/50Hz, 380V/50Hz
4. Desalting rate: 97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤ 400μ S
7. Conductivity of pure water: ≤ 10μ S
8. With water softener
D: Detailed specification
1) Adopts imported RO membrane from America, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and PP sediment filter.
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional).
7) The lifespan of the whole system is long, operation simple, the applicability is strong
E. Functions:
1. Manually wash RO membrane
2. Manually wash RO membrane with chemicals on machine
3. Machine automatically stops when high water level of purified water, and runs when low level
4. Multi-stage pumps protect the machine when lack of water
5. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.
F. We are professional water treatment manufacturer located in China.
|
Model No. |
Capacity (M3/H) |
Power (kw) |
Recovery Rate (%) |
Total land area LX W X H (mm) |
|
RO-250 |
0.25 |
1.5 |
50 |
2500X1000X2800 |
|
RO-500 |
0.5 |
1.5 |
50 |
2500X1000X2800 |
|
RO-1000 |
1 |
2 |
50 |
3500X1200X2800 |
|
RO-2000 |
2 |
4 |
50-60 |
6500X1500x2800 |
|
RO-3000 |
3 |
4.5 |
55-65 |
7500X1500X2800 |
|
RO-4000 |
4 |
6.5 |
55-65 |
7500X1500X2800 |
|
RO-5000 |
5 |
11 |
60-70 |
10000X2500X3500 |
|
RO-6000 |
6 |
11 |
60-70 |
10000X2500X3500 |
|
RO-8000 |
8 |
18 |
60-70 |
10000X3500X3500 |
|
RO-10000 |
10 |
20 |
60-70 |
10000X4000X3800 |
|
RO-20000 |
20 |
30 |
70-75 |
15000X5000X5000 |
|
RO-30000 |
30 |
40 |
70-75 |
20000X6000X5000 |
|
RO-50000 |
50 |
50 |
70-75 |
30000X8000X5000 |
