| Prod Model: |
JLH-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Output: |
50000kcal/H |
| Outlet Temperate Of Air: |
80-150degree |
| Power: |
1.25kw |
| Voltage: |
380/220V |
| Outer Size: |
1250X800X1200 |
| Weight: |
750kg |
| Warantty: |
One Year |
| Usage: |
Poultry House/Greenhouse |
| Principle: |
Regenerative Heat Exchanger |
| Structure Material: |
Metal Material |
| Application: |
Heater |
| Heat Transfer Surface: |
Plate Heat Exchanger |

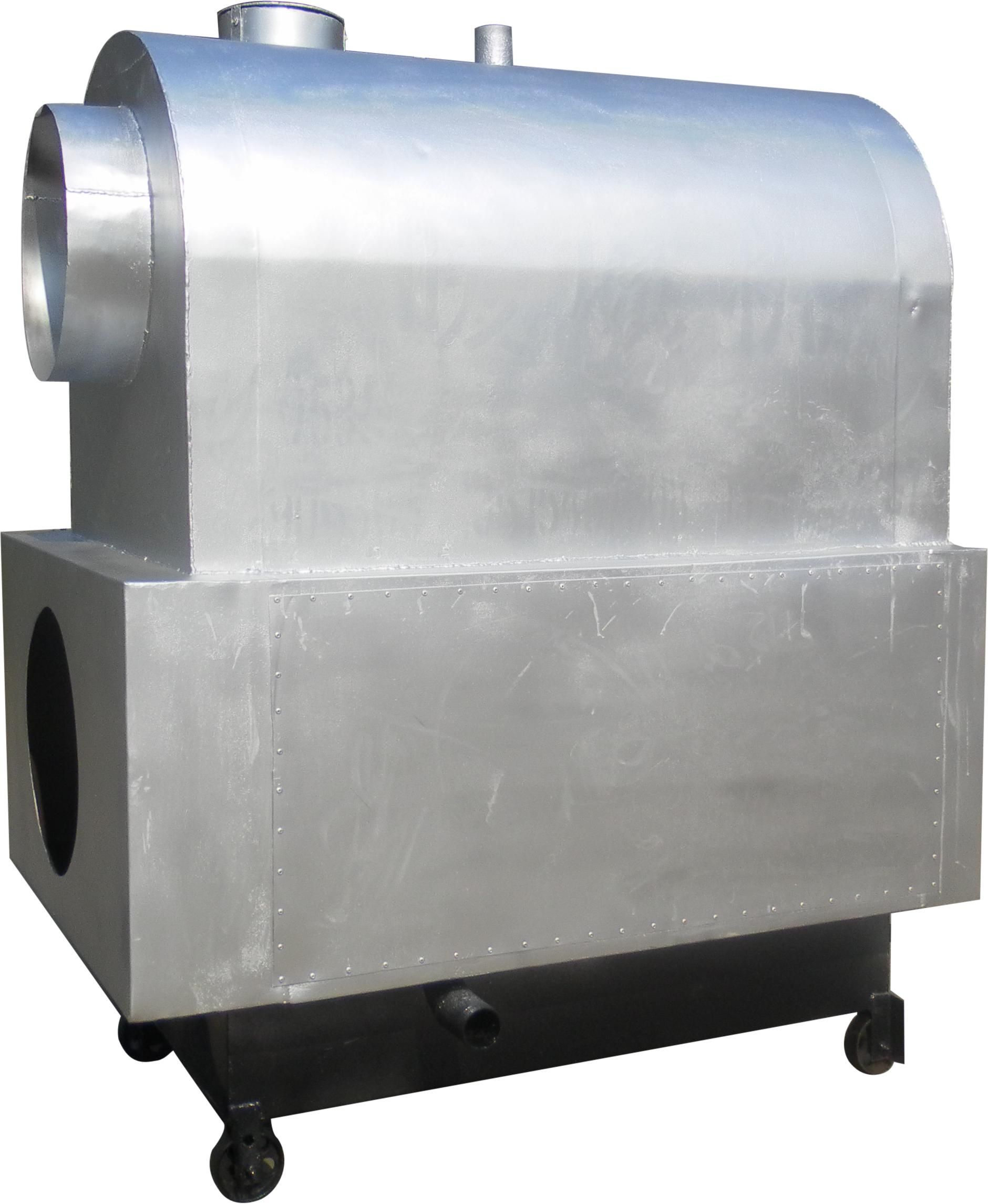

Product Description
The products are widely used for heating in farm green houses, horticulture flowers and plants planting, animal husbandry houses, MID and mini enterprise's workshop, assembly hall, conference room, cinema, and for drying and removing moisture in paper-making, pharmaceutical, grains, tea, silk mining, underground construction industries.
Adopt the special three-backward stock; The dust can be removed automatically in the heat exchanger. Auto-alarm functions and automatic protection device. Ventilator and fan can start and stop automatically. Automatically control wind input and output, automatically control the temperature. There are two temperature control systems: Computer-controlled and digit-controlled. Special designing of heat preservation to ensure the lowest heat loss.
The firebox had been specially designed with much longer service life, applied tovarious kinds of coal, heat efficiency amountto 90%. This machine unifies burning and heat transfer together, special indirect heating technology, smoke andair walk their owned way, no pollution. Heat efficiency amounts to 80%-90%, warming up fast, small volume, easy setting, high Reliability, low price.
| Technical data | Unit | JLF-5 | JLF-10 | JLF-20 | JLF-30 |
| Heat output | Kcal/h | 50000 | 100000 | 200000 | 300000 |
| Outlet temperature of air | ºC | 80-150 | 80-150 | 80-150 | 80-150 |
| Power | KW | 1.25 | 2.35 | 4.55 | 4.60 |
| Voltage | V | 380/220 | 380/220 | 380/220 | 380/220 |
| Outer size | mm | 1250*800*1200 | 1500*950*1400 | 2000*1200*1600 | 2300*1300*1900 |
| Weight | Kg | 750 | 1150 | 1650 | 2100 |
