Shenzhen Yonan Appliance Co., Ltd. >> Frequency Conversion Air Conditioner

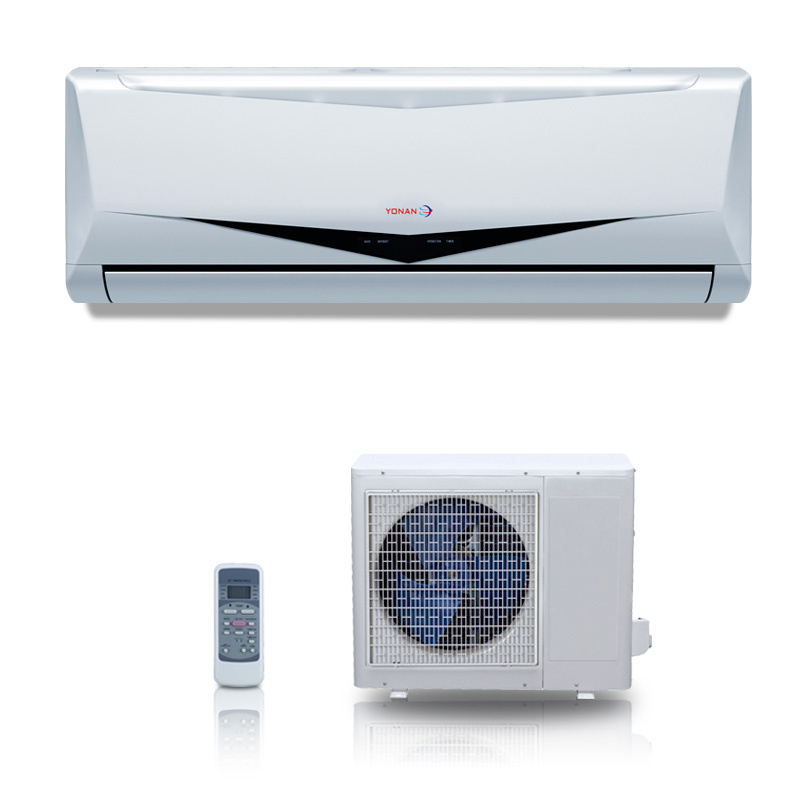

Frequency Conversion Air Conditioner

Frequency Conversion Air Conditioner
Price: Negotiable/Set
Trade Terms: FOB,CFR,EXW
Min Order: 50/Set
Pay Type: L/C,T/T
Prod Model: YC4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor Type: Rotary
Type: Inverter Air Conditioner
Capacity: 9000-12000 BTU
Usage: Room
Indoor Machine Noise: >50dB
Certification: CSA
China Energy Efficiency Standard: Level 3
Cooling/Heating: Cooling Only
Power Source: Electrical
Power Type: AC
Condition: New

Product Description

Frequency Conversion Air Conditioner


Feature
1.   More accurate temperature control,
3.   Low noise,
4.   The body feels more comfortable,
5.   Compressor long service life


Specification
 ModelKFC-25GW/DN1aKFC-35GW/DN1aKFC-51GW/DN1aKFC-70GW/DN1aKFC-25GW/DN1KFC-35GW/DN1
 IndoorKFC-25GW/DN1aKFC-35GW/DN1aKFC-51GW/DN1aKFC-70GW/DN1aKFC-25GW/DN1KFC-35GW/DN1
 OutdoorKFC-25W/DN1aKFC-35W/VX1aKFC-51W/DN1aKFC-70W/DN1aKFC-25W/DN1KFC-35GW/DN1
 Power supplyPh-V-Hz1Ph, 220-230V, 60Hz1Ph, 220-230V, 60Hz1Ph, 220-230V, 60Hz1Ph, 220-230V, 60Hz1Ph, 115V, 60Hz1Ph, 115V, 60Hz
 CoolingCapacity                     Btu/h9000(2250~10000)12000(4000~13500)18000(5100~20000)24000(12000~25000)900012000
 Input           W820(270~1200)1100(280~1220)1750(380~2300)2345(820~2750)
 Rated current   A3.7(1.2~5.5)5.0(1.4~6.0)8.0(1.8~10.2)9.8(3.6~12.5)
 EER        W/W3.213.213.013.01
 Moisture Removal            L/h1.01.21.82.61.01.2
 Max. input consumption        W1900190029003200
 Max. current               A8.58.513.014.5
 Starting current               A---------------------------
 CompressorModel  DA89X1C-20EZDA89X1C-20EZDA130S1C-20FZDA150S1C-20FZDA89X1C-20EZDA89X1C-20EZ
 Type  ROTARYROTARYRotaryROTARYROTARYROTARY
 Brand  TOSHIBATOSHIBAToshibaTOSHIBATOSHIBATOSHIBA
 Indoor fan motorModel  RPG20BRPG20BRPG28BYDK36-4CB(A)RPG15ARPG15A
 Brand  Welling Welling WellingWellingWellingWelling
 Indoor air flow (Hi/Mi/Lo)m3/h480/400/350630/500/450730/650/5601100/1050/900460/360/320620/500/420
 Indoor noise level (Hi/Mi/Lo)dB(A)37/34/3139/36/3343/40/3748/45/4238/33/3040/34/30
 Indoor unitDimension(W*D*H)mm710x195x250790x195x265920x225x2921080x228x330710x195x250790x195x265
 Packing   (W*D*H)mm800x270x340875x285x3751015x295x3681165x445x320800x270x340875x285x375
 Net/Gross weight  Kg7.5/99/1111.5/14.515.5/20.57.5/9.58.5/10.5
 Outdoor fan motorModel  YDK24-6KBYDK24-6GBYDK49-6BYDK47-6KBYDK24-6ASYDK24-6AS
 Brand  Welling WellingWelling WellingWellingWelling
 Outdoor unitDimension(W*D*H)mm700x235x535780x250x540760x285x590845x335x695660x255x540660x255x540
 Packing  (W*D*H)mm815x325x580910x335x575887x355x645965x395x755770x325x570770x325x570
 Net/Gross weight  Kg25/2729/32.537/40.544/4826/2827/29
 Refrigerant typegR410A/570gR410A/690gR410A/980gR410A/1180gR410A/500gR410A/650g
 Design pressure             MPa4.2/1.54.2/1.54.2/1.54.2/1.54.2/1.54.2/1.5
 Qty'per 20' /40' /40'HQ      127/267/299105/225/25289/182/21559/131/148129/271/313121/259/289

Shenzhen MoreTrade Network Technology Co., Ltd. ( Predecessor is Shenzhen Yonan Appliance Co., Ltd. Found in 2002).

As one of the most important companies in home appliance industry in the world. We commit ourselves to R & D, production, sales and service of air conditioning, refrigerating and other home appliance products. Ranging from household air conditioner, commercial air conditioner, household refrigerator, kitchen appliance etc.

We are a large high-tech enterprise with a sales office in Shenzhen CBD, and factories in Foshan and Shenzhen, China. Our factory possesses a high-tech industrial park with land coverage of 8000, 000 square meters, and dozens of modernized production lines with an annual production capacity up to 12 million units of air conditioners, refrigerator, kitchen appliance and other home appliance.

After many years of rapid development, MoreTrade has achieved a lot, and "YONAN" brand become a leading brand home appliance industry. Its sales network for air conditioner, refrigerator, kitchen appliance and other home appliance covered more than 150 countries and regions. Now MoreTrade has become one of the most important manufacturers in China, and the fastest developing enterprise in home appliance industry. Especially during the world financial crisis, MoreTrade adjusts the sales policy immediately, sharing the losses with customers in crisis, and sticking together with customers in difficulty, which has been highly appreciated by customers worldwide.

It is MoreTrade's corporate spirit that guarantees its rapid, stable, efficient development. Replying on human resources and managing by trust, we hold the business principle of "Quality is the basis of enterprise's existence, science and technology is the suaranty of enterprise's benefits, and brand & reputation is the power of enterprice development", and emphasize on technology and innovation. After making efforts for many years, MoreTrade has accomplished lots of research results and owned many core technologies. Up to now, MoreTrade products has passed more than 200 global authoritative certifications.

MoreTrade firmly believes that success comes from efforts, and prospect goes with challenge. Moretrade team will constantly pursue efficiency and innovation to improve overall management skill, and maintain high-speed development. To achieve a better tomorrow, MoreTrade will keep on continuous innovation, and "YONAN" brand will definitely be acknowledged has a famous brand in the world.
