Free Drive Multi-DOT Large Size Infrared/ IR Touch Screen
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,D/P,Paypal,Western Union |
| Prod Model: |
AMH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aspect Ratio: |
16:9 |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
| Screen Size: |
15.6-84 |
| Application: |
POS ,ATM , Desktop Touch Monitor , Education |
Product Description

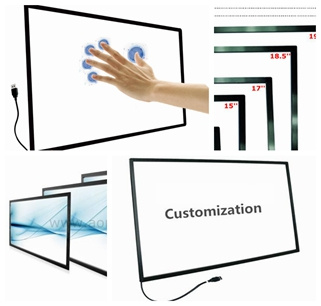

Free drive multi-dot large size infrared/ IR touch screen
Features
Dust Proof, Vandal Proof
Stable and no drift
No light spots
High durability & Fast response to touch
Wide range of temperature;
Transparency and high-resolution;
ROHS, CE, FCC conformity
Screen Parameter
| Outline Dimension: | 997(W+/-2.0)x589.3(D+/-2.0)x10.5mm (H+/-0.5) |
| Active Area: | 939mm (W)x531.3mm (D) |
| Output Format: | Coordinate Output |
| Minimum Touch body Diameter: | > 5mm |
| Linearity Error: | <1.5mm |
| Response Speed: | 5ms-16ms |
| Touch Durability Limitation: | Over 6,000,000 Single Point Touch |
Connect Interface:
| Full Duplex USB 2.0 (Full Speed) Plug & Play, Free Driver
|
| Serial RS-232. Baud Rate: | 9600, 8 Data Bits, 1 Stop Bit, No Parity |
| Scan Frequency: | 50Hz |
| USB Transmission speed: | 12Mbps |
| USB Signal: | +5V, D-, D+, GND |
| Operation System: | Windows 7 / 8 |
| Scanning Mode: | Auto Start, Always Scanning |
| Movement Mode: | Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out |
| Environmental Temperature | Operating: -20°C ~ 70°C/ Storage: -40°C ~ 85°C |
| Relative Humidity: | Operating Range: 0%~90% RH; Storage Range: 0%~95% RH |
| Altitude: | Up to 3,000m |
| Ambient Light: | Direct sunlight 90°to 30°to the display surface Touch detection operational
Direct sunlight all angles to display surface Free of false touch reports |
| Current: | Typical 150MA@+5VDC; 350mA, maximum |
| Power: | <2W, operating current<300mA |
| Electrostatic Protection: | 15 kV air / 8 kV contact discharges (EN61000-4-2, 1995: Level 4) |
| Life time: | 7 Years |
| Controller Integration inside touch panel |
| Dust proof, Vandal Proof. |
| Available size: 15 inches to 84 inches ( over 80 inches ,below 300 inches are customized size) |
Shenzhen Ao-Mihoo Electronics Company Limited is a professional Hi-Tech enterprise engaged in LCD/LED; Display development, production, marketing, etc. Company owns 1200 square meters workshop, two automatic production line, can satisfy the production requirements of different customers. We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, whom are outstanding in the digital signage.
Basing profound technology & Innovation spirit, Ao-Mihoo develops and produces the infrared Touch Screen (Single Touch, Multi Touch), Touch screen Monitor, Touch Panel PC AIO, LCD advertising player(LAN/WAN/Wi-Fi), Inquiry LCD advertising player, Multimedia player, etc. Most products lead the domestic market, including some national patents to some models.
As one of the leading company in digital signage, Ao-Mihoo offers very innovative, stylish, and full-function products, which are welcome by the clients over thirty countries and areas. The OEM/ODM product is available for our clients' application on professional Digital Display.
Ao-Mihoo always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, RoHS certifications so far.
With strong capacity and sure credit, Ao-Mihoo has established very fine strategic cooperation with some domestic and international brand companies, like Skyworth, Kanka, etc, as well as some famous IC companies for market demands.
Ao-Mihoo, First Choice to Digital Signage! Ao-Mihoo offers Different Splendid!
