| Prod Model: |
FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 8ohms Stereo Power(RMS): |
2400W*2 |
| Amplifier Type: |
Class Td |
| Frequency Response: |
20 Hz - 34 kHz |
| OEM Sevice: |
Accepted |
| Color: |
Black, Red, Blue |
| Certification: |
CE, RoHS |
| Dimensions (W*H*D): |
483*88*396mm |
| Packing Dimension: |
580*180*560mm |
| Gross Weight(Kg): |
14.8kg |
| Warranty: |
Three Years |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Usage: |
Stage |
| Voltage: |
220V&110V |
Product Description

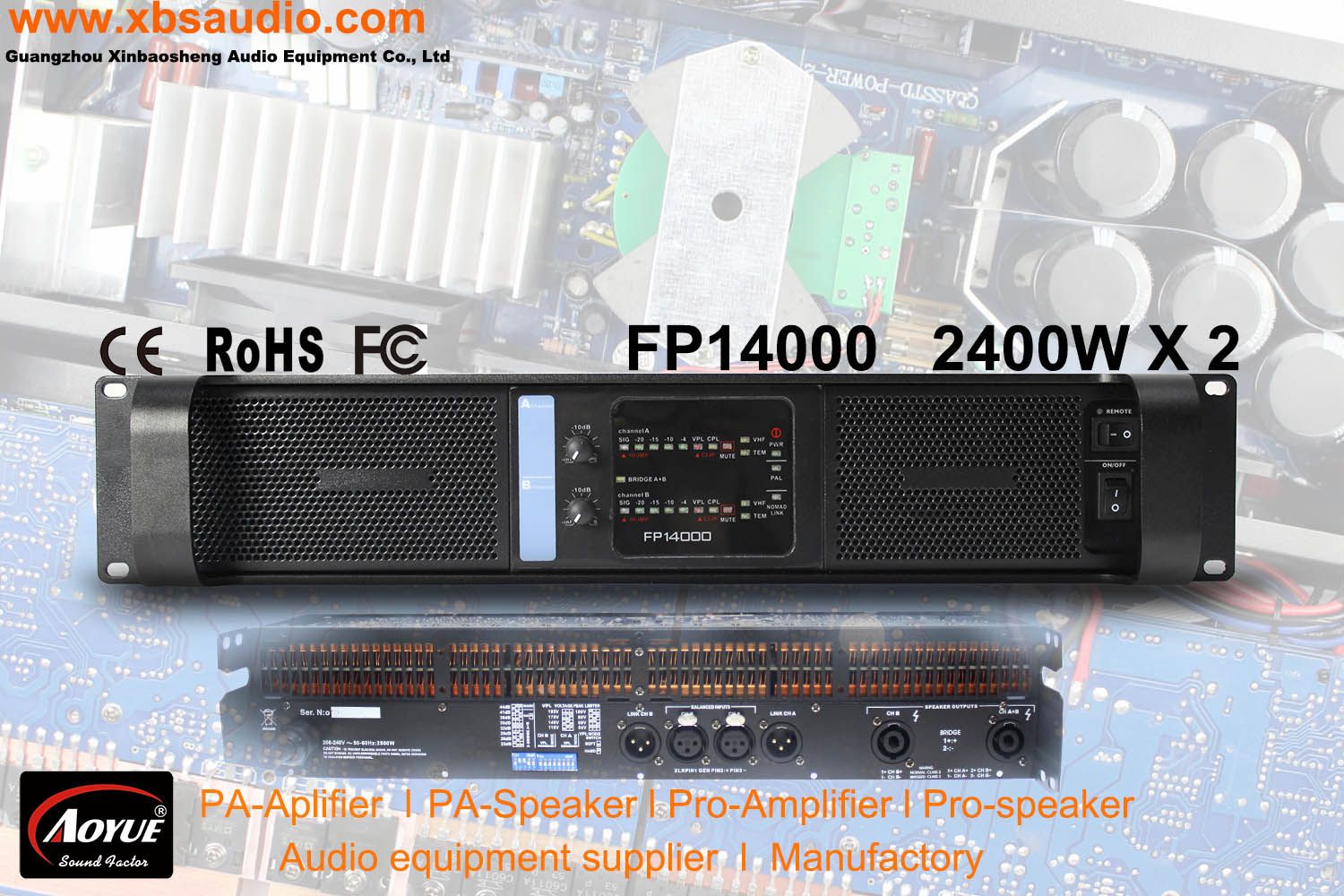

FP14000 2400*2 watt audio power amplifier
Product Description
FP series is a high performance switching power amplifier, compact structure, reasonable; each channel with independent adjustable peak output voltage, the amplifier can be very easy to drive different power sizes speakers ; intelligent protection circuit provides advanced technology to protect the internal circuits and connected loads, can in extreme conditions to protect the amplifier and speakers. For large-scale performances, venues, business senior entertainment clubs and other places.
FP Series | FP7000 | FP9000 | FP14000 | FP6000Q | FP10000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2700WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1500WX4 | 2500WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 13.8 |
FAQ
1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!
2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!
3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal; 30% deposit before production, 70% balance before shipment!
4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!
5.How long is your guarantee period of products?
A:1 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!
6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!
Contact us
Do you like it?
If you want it belongs to you,pls contact with me!
Contact: Miss. Crystal Huang
Tel: +86 020 62199986
Mob: +86 18898545887
Guangzhou Xinbaosheng Audio Equipment Co., Ltd is a manufacturer of various kinds of audio equipment, such as Active PA speaker, Bluetooth Speaker LED lights, Power Amplifier, Mixer and so on.
Our products already exported to USA, Europe, Chile, Mexico, Brazil, Israel etc.
Our company has nearly 100 employees; Among them are 3 expertise designers, 8 QC staff and 6 technical managers on site. We cover an area of 3, 000 square meters of production workshop, and possess 6 lines of assembly streamlines.
Our products have Utility model and Appearance design patent, also CE, RoHS, FCC, TELEC, BQB certifications;
Our service aim is as follows: Customer satisfaction is our pursuit and good quality and service is our guarantee to the benefit of customers. We are committed to three-year warranty services. Enquiry and patronage is welcomed.
