| Prod Model: |
FP6000Q/FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Name: |
Fp10000q |
| Max Output Power(8ohm): |
1300W |
| Max. Output Power(4ohm): |
2080W |
| Max. Output Power(2ohm): |
2500W |
| Channels: |
4 |
| T. H. D(1W. 20Hz-20kHz): |
< 0.1 % |
| Signal To Noise Ratio: |
112dba |
| Cross Talk(1kHz): |
70dB |
| Frequency Response: |
10Hz-35kHz |
| Default Gain: |
35dB |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Type: |
Switch Power Supply |
| Usage: |
Commercial |
| Function: |
Switch Power Supply |
Product Description
Fp10000q 4 Channel Line Array High Power Amplifierpower amplifier for line array
4*2500W@2ohms power amplifier
light weight power amplifier
4 channel amplifier for line array system
switch power supply amplifierFP10000Q Features:1. The lastest design
2. Gorgeous appearance
3. Switch power supply
4. Light weight
5. Big powerProfessional switch power supply amplifier gives you the best sound;
Professional manufacturer gives you the best price.
| 4 channel switch power supply amplifier |
| Specifications |
| Model | FP6000Q | FP10000Q |
| Max Output Power(8ohm) | 800W× 4 | 1300W× 4 |
| Max. Output power(4ohm) | 1300W× 4 | 2080W× 4 |
| Max. Output power(2ohm) | 1500W× 4 | 2500W × 4 |
| T. H. D(1W. 20Hz-20KHz) | < 0.1 % |
| Signal To Noise Ratio | 112dBA |
| Cross Talk(1KHz) | 70dB |
| Frequency Response | 10Hz-35KHz |
| Default Gain | 35dB |
| Gain Selectable | 23, 26, 29, 32, 35, 38, 42, 44dB |
| lnput Connecters | 3-Pin XLR. |
| Onput Connecters | Neutrik Speakon |
| Main Power Supply | ~ 220V(± 10 % )50-60Hz |
| Weight | 13Kg | 14Kg |
| Dimensions | 483(W)× 396(D)× 88(H)mm |
More details of our FP10000Q power amplifier :Model:FP10000Q
Power ratig:4x1300W(RMS)
Type:Class D switch power supply digital
Voltage:100-120V or 200V-240V
Power plug:European, American, Chinese or customrized
Original imported NEUTRIK connectors
458 software connection terminals desig

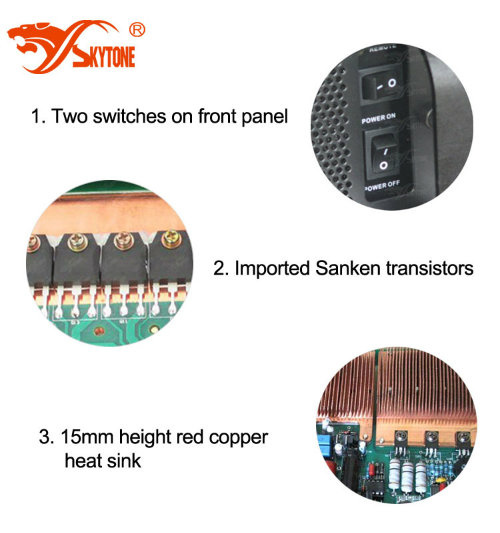

1.Two switches on front panel
2.Imported Sanken transistors
3.15mm height red copper heat sink

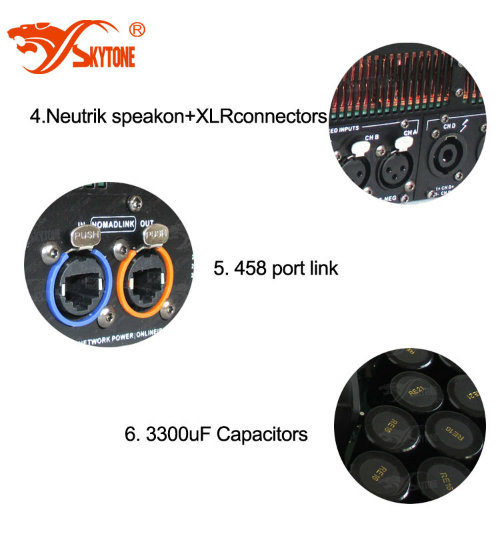

4.Neutrik speakin+XLR connectors
5.458 port link
6.3300uF Capacitors![]()

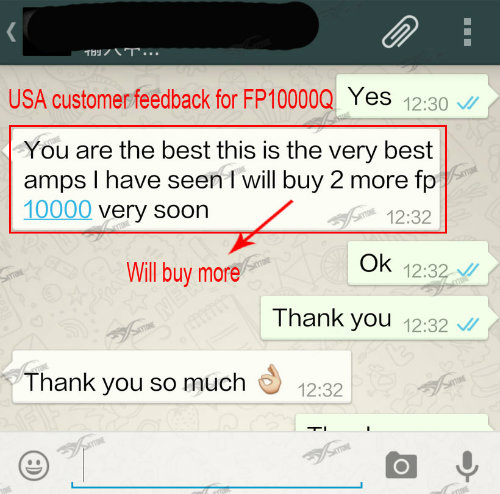

Customer feedback of our FP10000Q power amplifier:
![]()
![]()
Your inquiry will be highly appreciated!!!
Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake.
We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.
Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
