Fp10000q 1350W*4 Switch Power Supply Apower Amplifier
| Price: |
US $ 450-680/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
FP10000Q |
| Markets: |
North America,Eastern Europe,Mid East,Western Europe |
| Shipping Charges: |
Very Low |
| Circuit: |
Switch Power Supply Amplifier |
| Circuit Protection: |
Fully and Perfect |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
Club, Stage, Shool, Church |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
90V~240V |
| Sound Channel: |
4.0 |
Product Description
FP10000Q
1300W 4CH Pro Switch Power Supply Amplifier1pc sample accepted
welcome OEM, warranty 1 yearParameters:Channel number: 4CH
8Ohm stereo, 1350W
4Ohm stereo, 2700W
2Ohm stereo, 2500W
8Ohm bridge: 4200W
4Ohm bridge: 5000W
Gain: 35dB VPL:101V
THD+N: <0.1%
THD: <0.05%
S/N ratio: >112dB
Crossover: >70dB
Frequency: 6.8Hz-34KHz
Input impedance: 20Kohm
Gain selecrable: 23,26,32,35,38,41,44dB
Input connector: XLR
Output connector: Neutrik speakon
output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source
Cooling: 2 fans, front to rear airflow, temperature control
Size: 483*88*398mm
weight: 15kgs
outlook: black painted chassis, with black painted steel front

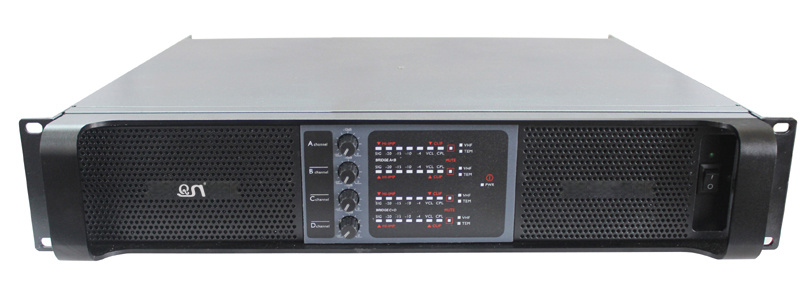

Front picture:
Back panel:
Inside Picture:
| MODEL | FP10000Q |
| Output Power | 20-20kHz, 1W with 1 khz |
| 8ΩStereo Power(RMS) | 1300WX4 |
| 4ΩStereo Power(RMS) | 2100WX4 |
| 2ΩStereo Power(RMS) | 2500WX4 |
| 8ΩBridged Power(RMS) | 4200WX2 |
| 4ΩBridged Power(RMS) | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM,AutoRamp,short cricuit,DC voltage,turn-on/off transient,current,inrush |
| Operating voltage | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 560×180×500mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 14 |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
2016 Prolight + Sound Guangzhou
Our booth is A70 4.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 29 February~3th, March, 2016
