| Prod Model: |
CLW535LCC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
95HP |
| Insulation Material: |
Polyurethane/Fiber Glass |
| Door: |
Rear Door/Stainless Steel |
| Usage: |
Drug Transport/Vaccine Transport |
| Temperature Range: |
-18 Degree to -5 Degree |
| Compartment Material: |
Color Plate |
| Refrigerator: |
USA Thermo King/Korean Kaili/Hanya |
| Refigerant: |
404A |
| Driving Type: |
LHD or Rhd |
| Insulation Material Thickness: |
7mm~8mm |
| Emission Standard: |
Euro 2 |
| Horsepower: |
＜150hp |
| Transmission Type: |
Manual |
| Certification: |
CE |
| Fuel: |
Diesel |
| Engine Type: |
4 Stroke |
| Condition: |
New |
| Payload: |
5-10ton |
Product Description

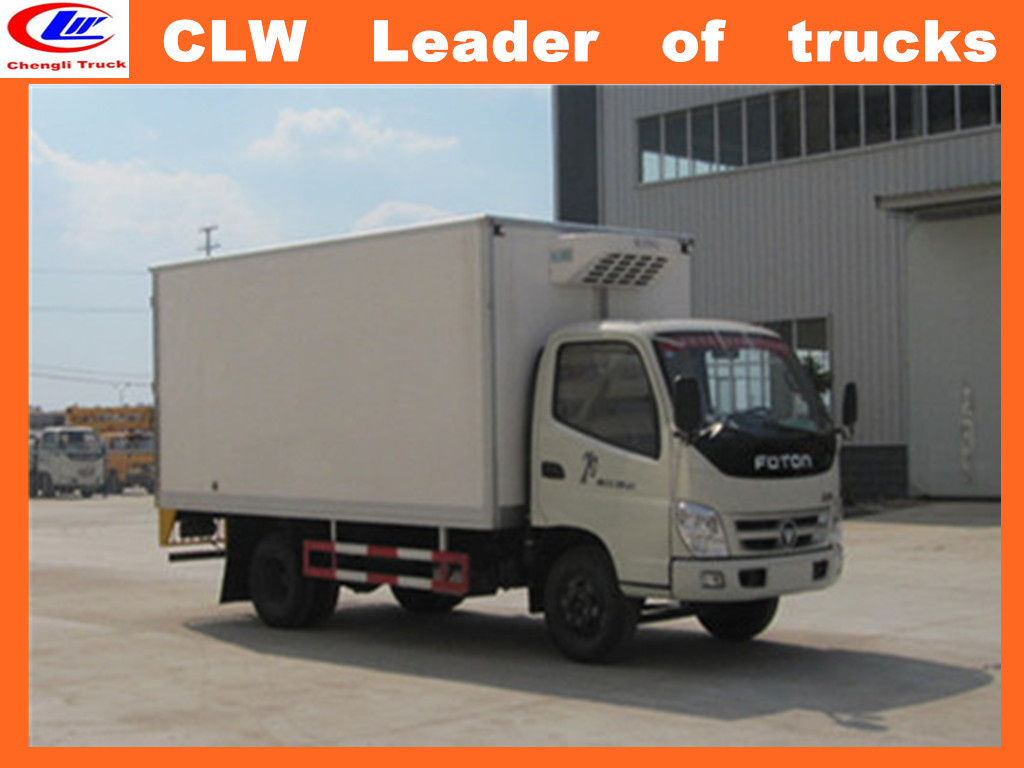

Foton 20ft refrigerator container thermo king Freezer Units
Refrigerated Truck is also called refrigerated tank truck, refrigerated freezer truck, thermoking refrigerator truck, frozen truck, refrigerated van truck, refrigerator cooling van truck. It can be used to transport frozen food, meat, fish and all kinds of sea food.
ChengLi Special Automobile Co., Ltd which is appointed by the Development and Reform Committee of China is a famous manufacturer producing all kind of special trucks for 10 years. Labels registered CLW has roundly passed the ISO9001-2008 and the 3C(China Compulsory Certification).
Our company has independent export right and has a lot of overseas clients.
Our leading products are more than 300 kind of trucks such as Water truck, LPG truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Contact person: Krystal Zhang
Tel: +86-15171412234
| Product Name | FONTON 4x2 refrigeration van truck | Product Brand | CLW |
| Curb weight(kg) | Approx 2810 | Overall Dimension(L*W*H)(mm) | 5995 × 2150 × 2900 |
| Load volume(m3) | 13 | Compartment Dimension(mm) | 4165 × 2050 × 1900 |
| Wheelbase(mm) | 3360 | Axle number | 2 |
| Front/ rear suspension(mm) | 1095/1540 | Approach/ departure angle ( ° ) | 21/17 |
| Cab capacity | 3 | Max Speed (km/h) | 95 |
| Chassis Technical Parameter |
| Chassis Model: | BJ1049V9JEA-KS1 | Chassis Manufacturer: | BEIQI FONTON Automobile Co., Ltd |
| Gear box | 5 shift | Transmission type: | Manual |
| Brake System | Air brake | Leaf Spring number: | 3+1/6+7 |
| Steering type | LHD or RHD | Traction Type: | 4x2 |
| Tire size | 7.00-16, 7.00R16 | Number of Tire | 6 with a spare |
| Engine specification |
| Engine Model: | CY4102-C3F | Engine Brand | DONGFENG ChaoYang |
| Emission stand | Euro 2 | Displacement(ml) | 3856 |
| Fuel type: | Diesel | Power(kw) | 70(95)hp |
| Warranty | 12 months, from the date of supply |
| other Equipment or performances | 1. Don't open at the top, open side door |
| 2. Equipped with SONGHAN refrigeration unit(optional other brand) |
| 3. Minimum temperature can be dropped to -18 °C. |
| 4. Material: FRP inside and outside, 8cm thickness polyurethane foam middle. |
Chengli Special Automobile Co., Ltd is a company with a tradition of over 10 years in the engineering industry and has aggregated a wide experience in this field. The main strategic program is focused on the production of trailers, tankers, dump trucks and other special vehicles. The company currently employs 1100 people and enjoys strong growth. Its turnover in 2007 is USD66.5 million and in 2013 it reached USD213.7 million. Chengli now ranks top 3 in special vehicle in China. The company' S total area is 1230 acres and in 2013 its annual production ability will expand to 20, 000 units.
Chengli is customer orientated and manages its business processes with the dynamics, efficiency and reliability to reach high customer satisfaction ratings. The combination of modern technology and human oriental assures a strong and competitive position in both domestic and international market.
Chengli has set up 127 service centers throughout China to provide ready-service for its customers. Complete coverage of sales service greatly reduces the distance between Chengli and its customers. Anytime customers want, Chengli will be there with them.
Working with reliable local partners, Chengli now is a key player in North Africa (Algeria, Libya, and Egypt), East Africa (Tanzania, Kenya, Uganda and Malawi)West Africa (Nigeria, Ghana, and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia., and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia.
Our company is located in Suizhou City, Hubei Province, center of China, the special-purpose vehicle city of China. We welcome friends from all over the world to visit us!
