Prod Model: |
LR-1T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Compressor: |
Bitzer |
Temperature: |
-40oc |
Usage: |
for Refrigerate |
Cooling Method: |
Direct Cooling |
Certification: |
SGS |
Condition: |
New |
Ice Shape: |
Flake Ice |
Product Description
Specifications

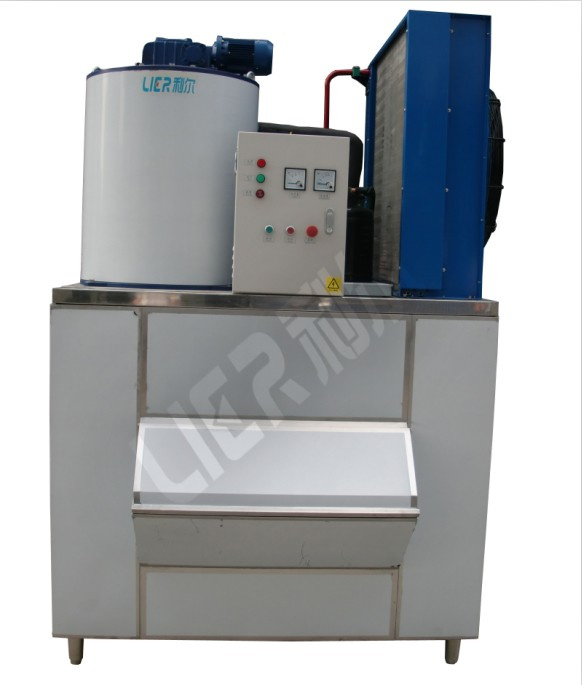

Flake ice machines
1. Famous compressor
2. Stable&reliable performance
3. CE approved
4. User-friendly design
Flake ice machine / make ice machine / ice machine
Feature:
1. Power supply: 3P/380V/50HZ (design along with customer's request).
2. Fully Automatic and safe operation system.
3. Flake Ice Thickness Range: 1.8-2.5 mm.
4. Daily output: 350kg/24h~50000kg/24h, you can choose the different types to meet your request.
5. Cooling type: Air-cooled, Water-cooled and evaporative.
6. Refrigerant: R22/R404A/R407c.
7. Reliable&famous compressor: Bizter/ Danfoss/ Copeland/ Hanbell, It remain top quality and reliable performance with good daily output.
8. Material of flake ice evaporator: Stainless steel or carbon steel (based on customer's request. ).
9. Relatively big contact area and good mobility can ensure their full contact with refrigerated objects to realize good preservation effect.
10. Without any acute edges and corners, ice flake do not damage the surfaces of refrigerated objects but extremely benefit for storage and delivery anywhere anytime.
Description:
1. Superb Stability and reliability, long use life. Energy-Saving and cost-saving.
2. User-friendly design, intellectualized PLC touch-screen controller.
The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator. The intellectualized historical failure record Function and guidance of troubleshooting makes easier and simple operation and maintenance. The Running time setting function is convenient for operation.
3. Sub-cooled ice, excellent fast cooling.
Super cold, dry, crisp, 100% subcooled ice with greater surface area and exceptional cooling powe.
4. Low maintenance and operation cost.
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
Application:
Large and medium-sized flake ice machine has Large contact area with low cost of producing, flake ice can cool down the temperature at a fast speed and convenient for delivery, it was widely used in large shopping malls, aquatic products processing plants, engineering and construction, pre-cooling temperature, man-made ice project and other large products.
Advantages:
1. Perfect in cooling food.
Flake ice is dry and crispy, so it hardly has any shape edges, in food cooling process, which has made it the best cooling material. It reduces the damage to food to the lowest rate.
2. Thoroughly mixing.
Flake ice can become water quickly through the rapid heat exchanging with products, thus supplying the needed moisture to cool the products.
3. Small footprint, low noise, energy-saving, environmental friendly.
4. All our equipment are convenient and easy to operate, strong adaptability and stable quality.
Flake ice evaporator technical parameter |
|
|
Model |
Ice output
(kg/24h) |
Cooling capacity
(KW) |
Power |
Total Power
(KW) |
Regrigerants |
Cooling Way |
Single Barrel Dimension(mm) |
Net Weight
(kg) |
Capacity of
Freezer |
LR-05T |
500 |
3.7 |
3P/38OV/50Hz |
2.5 |
R404A |
Air-cooled |
1310*890*780 |
195 |
400 |
LR-1T |
1000 |
6.5 |
3P/38OV/50Hz |
4.8 |
R404A |
Air-cooled |
1310*970*880 |
227 |
500 |
LR-1.2T |
1200 |
7.8 |
3P/38OV/50Hz |
5.47 |
R404A |
Air-cooled |
1310*970*980 |
263 |
500 |
LR-1.5T |
1500 |
9.8 |
3P/38OV/50Hz |
7.3 |
R404A |
Air-cooled |
1310*970*980 |
364 |
500 |
LR-2T |
2000 |
13 |
3P/38OV/50Hz |
8.5 |
R404A |
Air-cooled |
1500*1095*1040 |
423 |
600 |
LR-2.5T |
2500 |
16.2 |
3P/38OV/50Hz |
9.2 |
R404A |
Air-cooled |
1500*1095*1200 |
456 |
600 |
LR-3T |
3000 |
19.5 |
3P/38OV/50Hz |
12.2 |
R404A |
Air-cooled |
1750*1190*1200 |
530 |
Actual demand
of cumtomer |
LR-4T |
4000 |
26 |
3P/38OV/50Hz |
16.3 |
R404A |
Water-cooling |
1700*1650*1450 |
630 |
LR-5T |
5000 |
32.5 |
3P/38OV/50Hz |
19.6 |
R404A |
Water-cooling |
1700*1650*1450 |
760 |
LR-8T |
8000 |
49 |
3P/38OV/50Hz |
26.6 |
R22 |
Water-cooling |
2500*2000*1560 |
968 |
LR-10T |
10000 |
65 |
3P/38OV/50Hz |
32.5 |
R22 |
Water-cooling |
2500*2000*1700 |
1260 |
LR-15T |
15000 |
95 |
3P/38OV/50Hz |
58 |
R22 |
Water-cooling |
3100*2160*1865 |
2120 |
LR-20T |
20000 |
130 |
3P/38OV/50Hz |
63 |
R22 |
Water-cooling |
3100*2160*2050 |
2860 |
LR-25T |
25000 |
160 |
3P/38OV/50Hz |
75 |
R22 |
Water-cooling |
3100*2160*2265 |
2940 |
LR-30T |
30000 |
195 |
3P/38OV/50Hz |
86 |
R22 |
Water-cooling |
3500*2700*2350 |
3240 |
Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.
With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.
We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.
"Endless innovation for technology, continuous improvement for service" is our slogan. We will cooperate with all customers, following the "professional, honest and win-win" spirit.
