| Prod Model: |
S520 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Pasmo |
| Model: |
S520 |
| Hopper: |
12.5L*2 |
| Cylinder: |
2L*2 |
| Dimension: |
876*636*1539mm |
| N.W.: |
230kg |
| Voltage: |
220V 50Hz/60Hz |
| Air Pump: |
Available |
| Output: |
50L/Hr |
| Mix Low Function: |
for Both Hopper and Cylinder |
| Application: |
Chocolate |
| Customized: |
Customized |
Product Description

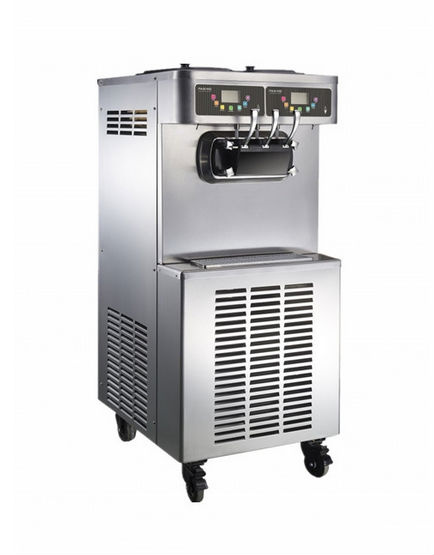

Specification of Pasmo S520 Ice Cream Making Machine
| S520 |
1) Compressor is ASPERA from Italy
2) Expansion is DANFOSS from Denmark
3) Solenoid valve is SAGINOMIY from Japan
4) Double control system (refrigeration and pre-cooling)
|
| MODEL | S520 |
| HOPPER | 12.5L*2 |
| CYLINDER | 2L*2 |
| OUTPUT | 50L/HR |
| FLAVOURS | 2+1 MIXED |
| VOLTAGE | 220V 50Hz/60Hz |
| BEATER MOTER | 750W*2 |
| COOLING TYPE | AIR/WATER COOLING |
| MAIN COMPRESSOR | 3753BTU/HR |
| WEIGHT | N.W. | 230KG |
| G.W. | 260KG |
| CERTIFICATION | CE,ETL,LFGB,ISO9001 |
Descriptions of Pasmo S520 Ice Cream Making Machine
S520 is our newest and best seller, many big chain shops are using it due to its big capacity with stable working
1) S520 use newest technology and imported high quality core accessories,such as compressor is Aspera from Italian,Teccum from France,expansion valve is Danfoss from Denmark,solenoid valve is Saginomiy from Japan.To make sure the machine can work stable with long service life
2) It is double separate control system, means it can work one side with the other side off
3)Quickest freezing at 7 minutes to produce first batch of ice cream
4) Strong discharge ability,can dispense 15-18 cups one time
5) intelligent safety alarm, to protect machine from being broken
6) World's lowest noise, about 55DB, suitable for high end quiet place
7) CE, CB,ETL, LFGB, ISO9001 certificated, meet international standard regulations
Packing and Delivery for Pasmo S520 Ice Cream Making Machine
Plywood case:by sea or air
Our service
1) Guarantee time:14 months
2) Extra spare parts are attached with order for stock accessories
3) Specialized after-sales team offer technology support
4) 24 hours online after sales service
Taizhou Pasmo Food Technology Co., Ltd. Located in Jiangkou Food industrial area, Huangyan, Taizhou, Zhejiang, China. It has more than 100 workers, and covers 50, 000 square meter research and development base.
Pasmo is committed to the research and development of various refrigeration equipments. Now the main products are soft ice cream machine, slush machine and drinking machine, popular with the customers all over the world.
We focus on quality, environmental and security, own reliable technique and team. Now we have mould workshop, injection workshop, sheet metal workshop, metal surface treatment workshop, testing workshop and assemble workshop, with independent research and development capabilities. For each component, we selected after lots of experiment and testing. Our products contains from high level type and standard type.
