| Prod Model: |
Rubik 6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Foldable P6 LED Curtain Display |
| Pitch: |
6.64mm |
| Brightness: |
2850nits |
| View Distance: |
5 Meters |
| Working Voltage: |
DC 24V |
| Weight: |
10.5 Kg/ Sq.M. |
| Unit Panel Size: |
1700mm(H)*425mm(W) |
| Power Consumption: |
Max 310 W/Sq.M. |
| Viewing Angle: |
120 Degree |
| Control Mode: |
DVI |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
RoHS |
| Pixel Pitch: |
6.64mm |
| Pixel Density: |
22682 |
Product Description

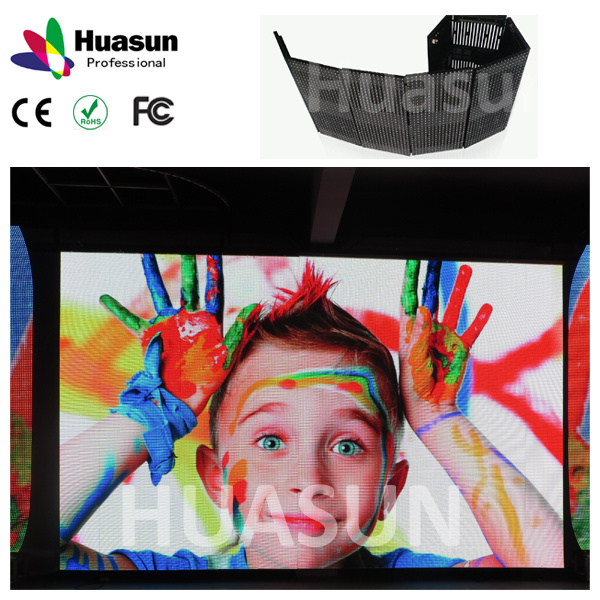

Rubik Series Foldable LED Display
Features:
1. Light weight: Makes it easy to transport and store
2. Flexible design: Can be applied to different circumstances
3. Fast deployment: Can be set up fast and easily without tools
4. Custom size: Screen can be made in custom sizes and shapes to meet your needs
5. Semi-outdoor application: IP43 ingress protection
6. Refreshing rate more than 7000HZ leads to excellent performance
7. Multiple resolution: 6.64mm, 10mm
8.3528 RGB 3in1 SMD LED
9. Module design for easy maintenance
Product Vedios On Youtube:
Rubik-6 P6.64mm: https://www.youtube.com/watch?v=5UsSxVxmkoE
Rubik-6 P6.64mm New show:https://www.youtube.com/watch?v=47N5ZcX0rnc&feature=youtu.be
Rubik-10 P10mm: http://youtu.be/mssX2NxlWuE
Galaxias-16 P16mm: https://www.youtube.com/watch?v=qdGUix3EN00
Galaxias-12 P12.5mm: https://www.youtube.com/watch?v=YYlRsRxv55k
Galaxias-9 P9.375mm: https://www.youtube.com/watch?v=Ay-dLT44T6E
Galaixas-7 P7.8mm: https://www.youtube.com/watch?v=S5fR4EC2vv4
Galaxias-6 P6.25mm: https://plus.google.com/110273546312846125540/posts/F8qo5QMin6D
Galaixas-6 work in bright sunshine: https://www.youtube.com/watch?v=KwIm3waNLFY&feature=youtu.be
Galaxias-4 P4.6mm: https://www.youtube.com/watch?v=mW0J_lsVOX8
Galaxias installation:http://youtu.be/M8WXfkJmhtA
Zeus-18 P18.25mm: https://www.youtube.com/watch?v=zixE_PZJMFk
Apollo-20 P20.83mm: https://www.youtube.com/watch?v=wJZt-S9ASik&feature=youtu.be
Apollo series: http://youtu.be/0EcjlnM5WrEs
Apollo-37.25: https://www.youtube.com/watch?v=kJXbTs58x4M&feature=youtu.be
Video Grid P25 on Stage: https://www.youtube.com/watch?v=Z0qh_vBzFAU&feature=youtu.be
Mesh-50 Spot lighting:https://www.youtube.com/watch?v=Y6UFemlxFNU&feature=youtu.be
Model No. | Rubik 6 | Rubik 10 |
| Pixel Pitch | 6.64mm | 10mm |
| Density | 22682 pixel/m2 | 10000 pixel/m2 |
| Pixel configuration | RGB 3-in-1 SMD |
| Brightness (white) | 2200 | 2100 |
| Optima visual distance | 5 | 7 |
| Transparency | \ | 17% |
| Max. power consumption | 180 | 185 |
| Average power consumption | 63 | 65 |
| Module Size | W=212.48mm
L=106.24mm
T=25mm | W=320mm
L=1280mm
T=25mm |
| 32 (W) X 16 (L) pixels | 32 (W) X 16 (L) pixels |
Recommended size
(Size can be customized) | W=425mm (2 pcs)
L=1700mm (16 pcs)
T=25mm | W=320mm (1 pcs)
L=1280mm (8 pcs)
T=25mm |
| 64 (W) X 256 (L) pixels | 32 (W) X 128 (L) pixels |
| Weight | 10.5kg/sq.m | 12kg/sq.m |
| Work voltage | DC 24V |
| Brightness level | 16 levels |
| Bit depth per color | 16 bit |
| Bit depth per pixel | 48 bit |
| Visual angle | Horizontal:120°;Vertical:120° |
| Refresh rate | ≥7000Hz |
| Display mode | 1280 X 1024 |
| Drive mode | Constant current |
| Signal type | AV, S-Video, VGA, CVBS, HDMI, DVI |
| Control distance | HSYV;<100m |
| Body structure | Plastic, metal |
| Ingress protection | IP43 |
| Ambient temperature | -20~+50°C |
| Relative humidity | 10%~90% |
| Power system | Power-600, power-1200 |
| Installation | Hang
|
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
