| Prod Model: |
Rubik-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
2050 Nits |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| IP Rating: |
IP54 |
| Certification: |
RoHS |
Product Description

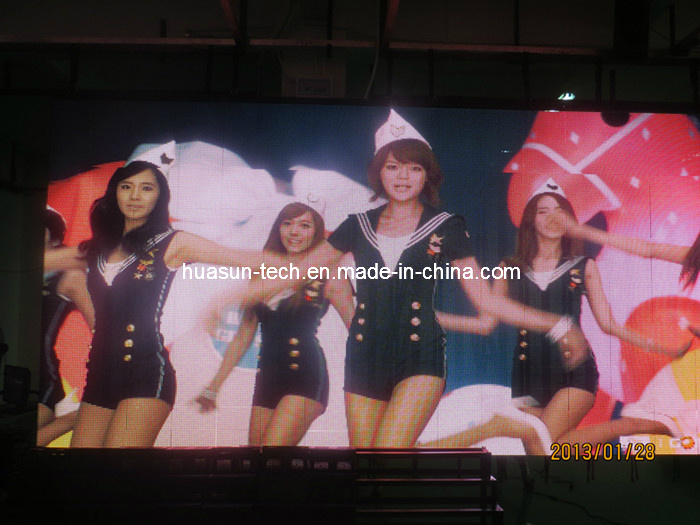

P10 full color Foldable SMD LED Curtain flexible LED display( Rubik Series)
Technical Parameters:
Resolution: 10mm pitch
Density: 10000 dots/SQ. M
Pixel: RGB 3-in-1 LED
Bit depth per color: 16 bit
Bit depth per pixel: 48 bit
Viewing angle: 120º × 120º
Service life: 80, 000 hours
Brightness (white): 2050 nits
Brightness level: 16 levels
Fresh frequency: 60Hz
Innovation: ≥ 7000Hz
Drive mode: Constant current
Control mode: VGA synchronous display
Display mode: 1024× 768, 1280× 1024
Display port: DVI
Working voltage: 90~264VAC 50/60Hz
Power consumed: 65W/ SQ. M
Face material: Plastic+Metal
Weight: 9.0kg/ SQ. M
Weather rating: IP 44
Optimal visual distance: 6m
Ambient relative humidity: 10%~90%
Working temperature: -10 º ~50 º
Package: Flight case optional
Recommendation Size: 320m width x 1280m height
Installation: Hang
Control system: Power-600, Power-1200
Safety certificate: CE, FCC
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
