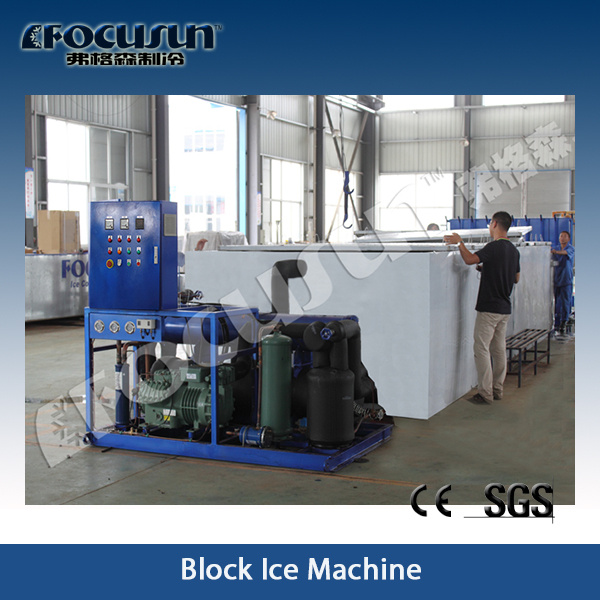

Focusun Super Quality 10tpd 25kg 50kg Ice Block Making Machine Maker

Prod Model:	FIB block ice making machine plant
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor:	Bitzer/Bock/Copeland
Gas:	R22/R404A
Condenser:	Air Cooled/Water Cooled
Quality:	High Quality Ice Block Making Machine
Certification:	CE
Ice Shape:	Ice Block
Condition:	New

Product Description

Company Information
 Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.

There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

Focusun 3 types block ice making machine

1. Direct refrigeration system (milky color ice);
2. Indirect--brine refrigeration system (milky color ice or transparent ice);
3. 20ft/40ft containerized movable system;

Block ice weight/size:

Weight(kg/block)	Dimension(L*W*H mm)	Ice Making Time(hour)	Batch(times)
10	155×100×750	5.5	4
20	245×125×750	7.5	3
25	315×125×750	7.5	3
50	480×160×750	11.5	2
75	420×200×1000	19.5	1
100	500×220×1000	22.5	1

Direct refrigeration block ice making machine features:
1. The evaporator adopts special aluminum alloy plate which is more durable and meets food hygiene requirements.

2. Fully automatic, no manual work is needed, one work is enough to take care of the machine.

3. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.

4. The whole batch of ice blocks can be moved by forklift. Quick and convenient.

No brine tank!

No hoist!

No ice thawing tank!

Space-saving!

Labor-saving!


Our direct refrigeration block ice making machine models:

Model	Daily  Capacity	Refrigerant	Electricity  consumption	Install  power	Operating  weight	Size (L×W×H)
FIB-05D	0.5T	R404A	2.055kw	2.5kw	560kg	1500×800×1800mm
FIB-10D	1T	R404A	4.85kw	6kw	960kg	1800×1200×2000mm
FIB-15D	1.5T	R404A	6.94kw	8.5kw	1260kg	2800×1200×2000mm
FIB-20D	2T	R404A	8.16kw	10kw	1460kg	2800×1400×2000mm
FIB-25D	2.5T	R404A	9.51kw	12kw	1660kg	3200×1400×2000mm
FIB-30D	3T	R22/R404A	11.52kw	14kw	2180kg	3600×1400×2200mm
FIB-35D	3.5T	R22/R404A	14.85kw	18kw	2100kg	3600×1650×2000mm
FIB-50D	5T	R22/R404A	20.9kw	25kw	(unit):960kg	L1400×W1000×H1250mm
					(evaporator):2860kg	L4800×W1000×H2250mm
					(cooling tower):460kg	1380×H2170mm
FIB-100D	10T	R22/R404A	33.98kw	50kw	(unit):1680kg	L1800×W1000×H1450mm
					(evaporator):2860kg×2(p.c.)	L4800×W1000×H2250mm
					(cooling tower):670	2000×H2410mm
FIB-150D	15T	R22/R404A	59.15kw	75kw	(unit):2160	L2000×W1200×H1600mm
					(evaporator):2860×3	L4800×W1000×H2250mm
					(cooling tower):1120	2175×H2565mm
FIB-200D	20T	R22/R404A	85.55kw	105kw	(unit):2896	L2400×W1600×H1800mm
					(evaporator):2860×4(p.c.)	L4800×W1000×H2250mm
					(cooling tower):1300	2650×H2645mm
FIB-250D	25T	R22/R404A	94.05kw	120kw	(unit):3260	L3200×W1800×H2200mm
					(evaporator):2860×5(p.c.)	L4800×W1000×H2250mm
					(cooling tower):1630	3050×H2780mm
FIB-300D	30T	R22/R404A	113.55kw	150kw	(unit):3500	L3000×W2000×H2200mm
					(evaporator):2860×6(p.c.)	L4800×W1000×H2250mm
					(cooling tower):2730	3300×H2785mm

Brine refrigeration block ice making machine features:

1. Ti pipe is used as evaporative coil to improve heat transfer effect and prevent rust, corrosion for longer life.

2. The part inside brine tank that touches brine water is made of PE/SS304 which bears low temperature and highly resists rusts.

3. Particular can dump and thawing tank design makes easier operation.

4. Thaw tank is heated by air discharge from compressor to save much energy and suits for low water temperature area.

5. Every brine block ice machine can be designed and built as per your specific requirements.

Our brine refrigeration block ice making maker models:

Model	Daily  Capacity	Refrigerant	Electricity  consumption	Install  power	Operating  weight	Size (L×W×H)
FIB-50B	5T	R22/R404A	20.9kw	25kw	(unit):960kg	L1400×W1000×H1250mm
					(evaporator):2860kg	L4800×W1000×H2250mm
					(cooling tower):460kg	1380×H2170mm
FIB-100B	10T	R22/R404A	33.98kw	50kw	(unit):1680kg	L1800×W1000×H1450mm
					(evaporator):2860kg×2(p.c.)	L4800×W1000×H2250mm
					(cooling tower):670	2000×H2410mm
FIB-150B	15T	R22/R404A	59.15kw	75kw	(unit):2160	L2000×W1200×H1600mm
					(evaporator):2860×3	L4800×W1000×H2250mm
					(cooling tower):1120	2175×H2565mm
FIB-200B	20T	R22/R404A	85.55kw	105kw	(unit):2896	L2400×W1600×H1800mm
					(evaporator):2860×4(p.c.)	L4800×W1000×H2250mm
					(cooling tower):1300	2650×H2645mm
FIB-250B	25T	R22/R404A	94.05kw	120kw	(unit):3260	L3200×W1800×H2200mm
					(evaporator):2860×5(p.c.)	L4800×W1000×H2250mm
					(cooling tower):1630	3050×H2780mm
FIB-300B	30T	R22/R404A	113.55kw	150kw	(unit):3500	L3000×W2000×H2200mm
					(evaporator):2860×6(p.c.)	L4800×W1000×H2250mm
					(cooling tower):2730	3300×H2785mm

 Containerized system block ice making machine:


Why containerized?

If you don't have a workshop but want to start your ice making business, you can consider our containerized block ice making machine, a mobile plant that can make ice.

Features:

1. Convenient transportation and installation, no need to build a room for the container and machine.
2. Self-contained condensing unit is pre-piped and wired.
3. New ISO container equipped with lighting and drainage system.
4. Economically saving on cost and operation, advanced free maintenance design requires no specially trained engineer.

Both brine system and direct system can be installed in the 20 or 40 feet container.
Max capacity of direct system in 20'GP models: 6Ton/day
Max capacity of direct system in 40'HQ models: 18Ton/day

Model		Capacity	Refrigerant	Total  running  power	Operating  weight	Dimension
		kg/24h	-	kw	kg	L×W×H(mm)
20 foot container	FIB-10BC	1000	R22/R404A	6	960	6058×2438×2591
	FIB-30BC	3000	R22/R404A	14	2180	6058×2438×2591
	FIB-50BC	5000	R22/R404A	20.9	3820	6058×2438×2591
40 foot container	FIB-80BC	8000	R22/R404A	30.79	5600	12192×2438×2895
	FIB-100BC	10000	R22/R404A	33.98	7400	12192×2438×2895

Your demand:

Tell us your needs (as specific as possible), like wanted daily capacity, ice usage, ice weight/size in local market or desired ice making time, suitable suggestions provided or can be also specially customized.

PS: Standard ice maker is designed on 33ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution);


FAQ:
Q1: How many steps can I get the machine from your factory to my hand?

a. send us enquiry, tell us your demand as specific as you can;

b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;

c. visit factory if required,

d. down payment → production → balance payment → delivery;

e. local preparation ready → engineers fly to installation if needed → after sales;

Q2: Production time?

It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.

Q3: Payment method?

100% TT is preferred, 50% TT before production, the balance 50% before delivery.
