| Prod Model: |
FIT-50K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Daily Capacity: |
5000kgs |
| Compressor: |
Bitzer/Bock/Copeland |
| Certification: |
CCC |
| Condition: |
New |
| Ice Shape: |
Tube Ice |
Product Description

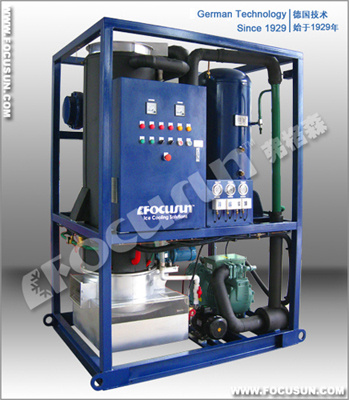

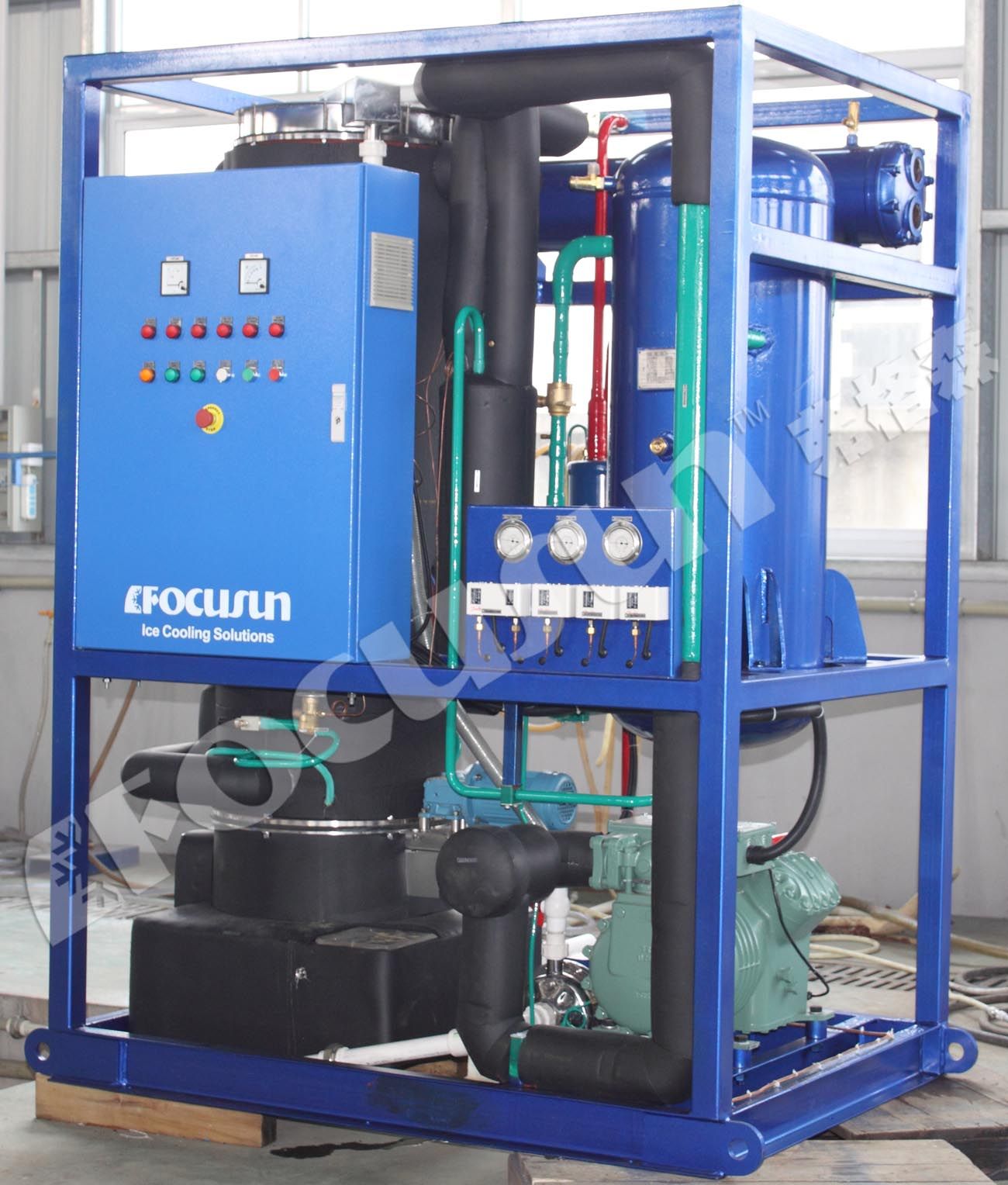

Technical information:Focusun ice tube machine Product Features:
1. Harvest ice way: Hot gas defrosts
2. Ice tube Size: 26mm, 29mm, or 35mm in diameter; hollow and transparent ice
3. Evaporator: tube vessel, its top and bottom part was welded with quality joining.
4. PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing
5. Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor
6. Install according to the operation manual and CD, Supply failure alarming system, and no requirement of skilled workers, high durability, and minimum maintenance.
7. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.
Advantage of Focusun:
1. Leading ice making machines manufacturer with rich experience;
2. One-station solution for ice storage room, cold room, packing system, ice delivery system, etc.
3. Adopt famous high quality components to guarantee the quality;
4. Professional team for solution design, manufacture, installment and after-sales service.
Technical Spefications:
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 5000 |
| Temperature | Ambient temperature | °C | 35 |
| Waterinlet temperature | °C | 20 |
| Operating power | Total running power | Kw | 16.03 |
| Installment power | Kw | 20 |
| Operating power of cutter | Kw | 0.37 |
| Operating power of cold water pump | Kw | 0.55 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 36.4 |
| Operating power | Kw | 13.51 |
| Compressor COP/EER | Kw/kw | 2.7 |
| Horse power | Hp | 25 |
| Condenser | Fan power | Kw | 1.6 |
| Cooling way |
| Air cooling |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×1200×2200 |
| Size of condenser | (L×W×H)(mm) | 1400×1250×1350 |
| Size of water feeding pipe |
| 1/2" |
| Weight of unit | Operating weight of tube ice maker | Kg | 1460 |
| Operating weight of condenser | Kg | 150 |
| Water supply pressure requirement | Bar | 1 |
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
