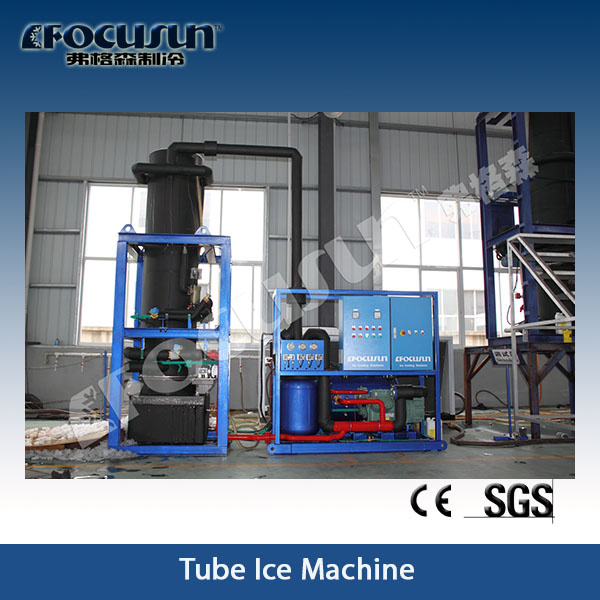

Focusun High Quality Tube Ice Making Machine Maker

Prod Model:	FIT tube ice making machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor:	Bitzer/Bock/Copeland
Gas:	R22/R404A
Condenser:	Air Cooled/Water Cooled
Quality:	High Quality Tube Ice Making Machine
Certification:	CE
Ice Shape:	Bullet
Condition:	New

Product Description

Company Information
Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.

There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

Tube Ice Feature
Tube ice is a kind of regular hollow cylindrical transparent ice. Its external diameter can be divided into three specifications such as ø22, ø29 and ø35mm, ranging from 25~50mm long. The inner hole diameter can be adjusted according to ice-making time, typically between ø5~10mm.

Compared with other kinds of ice, tube ice has the highest density which is pure, difficult to melt and completely conforms to food standard. It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, etc.

FOCUSUN Tube ice machines are divided into small capacity and large capacity.

Small capacity tube ice machine
A complete unit with all equipments assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to power and water, the machine is ready to run.

Large capacity tube ice machine

A modular design is adopted, consists of 3 modules.
Evaporator module: The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting, place the evaporator horizontally and stand it upright when installing.
Compressor module: Compressor, condenser, reservoir, liquid receiver, oil separator, and electric control box are installed on a steel frame to form the whole set.
Cooling tower module: Cooling tower, water pump and water pipes.

Model	Daily Capacity	Refrigerant	Electricity consumption	Install power	Operating weight	Size (L×W×H)
FIT-100	10T	R22/R404A	34.95KW	45 KW	(unit):1560 kg	1800×1500×1600mm
					(evaporator):2296 kg	1180×1180×3500mm
					(cooling tower):670 kg	Φ2000×2410mm
FIT-150	15T	R22/R404A	48.4KW	60 KW	(unit):1890 kg	2000×1800×1600mm
					(evaporator):2685 kg	1250×1250×4200mm
					(cooling tower):1120 kg	Φ2175×2565mm
FIT-200	20T	R22/R404A	68.5KW	85 KW	(unit):2260 kg	2200×2000×1800mm
					(evaporator):3650 kg	1350×1350×4600mm
					(cooling tower):1120 kg	Φ2175×2565mm
FIT-250	25T	R22/R404A	85.3KW	105 KW	(unit):2680 kg	2400×2200×2000
					(evaporator):4260 kg	1450×1450×4800mm
					(cooling tower):1300 kg	Φ2650×2645mm
FIT-300	30T	R22/R404A	105KW	130 KW	(unit):3280 kg	2800×2200×2000mm
					(evaporator):4860 kg	1450×1450×5200mm
					(cooling tower):1630 kg	Φ3050×2780mm
FIT-350	35T	R22/R404A	116KW	140 KW	(unit):3860 kg	3500×2200×2000mm
					(evaporator):5650 kg	1500×1500×5500mm
					(cooling tower):2730 kg	Φ3770×3490mm
FIT-400	40T	R22/R404A	139.6KW	170 KW	(unit):4250 kg	3600×2200×2000mm
					(evaporator):5890 kg	1500×1500×5800mm
					(cooling tower):2730 kg	Φ3770×3490mm
FIT-500	50T	R22/R404A	177KW	220 KW	(unit):4560 kg	4300×2200×2000mm
					(evaporator):6500 kg	1800×1800×6000mm
					(cooling tower):3770 kg	Φ3770×3690mm

Tell us your needs (as specific as possible), like wanted daily capacity, ice usage, ice size in local market or desired ice making time, suitable suggestions provided or can be also specially customized.

PS: Standard ice maker is designed on 33ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution);

FAQ:

Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.

You're invited to visit our official website www.focusun.com, if any other questions, please don't hesitate to contact us, we're glad to help with your business project!
