| Prod Model: |
FIB block ice making machine maker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Copeland/Bock |
| Gas: |
R22/R404A |
| Condenser: |
Air Cooled/Water Cooled |
| Quality: |
High Wuality Block Ice Making Maker |
| Certification: |
CE |
| Ice Shape: |
Ice Block |
| Condition: |
New |
Product Description
Company Information
Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.
There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.
Focusun supply 3 optional system:

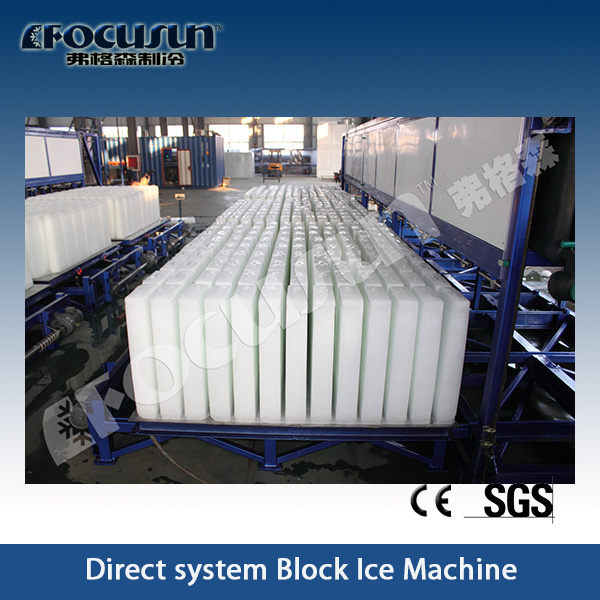

System 1-direct refrigeration system features:
1. The evaporator adopts special aluminum alloy plate which is more durable and meets food hygiene requirements.
2. Ice thawing and ice doffing are fully automatic, therefore no manual work is needed.
3. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.
4. The whole batch of ice blocks can be moved by forklift. Quick and convenient.
No brine tank!
No hoist!
No ice thawing tank!
Space-saving!
Labor-saving!
OUR DIRECT BLOCK ICE MAKING MACHINE MODELS:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |
| FIB-05D | 0.5T | R404A | 2.055kw | 2.5kw | 560kg | 1500×800×1800mm |
| FIB-10D | 1T | R404A | 4.85kw | 6kw | 960kg | 1800×1200×2000mm |
| FIB-15D | 1.5T | R404A | 6.94kw | 8.5kw | 1260kg | 2800×1200×2000mm |
| FIB-20D | 2T | R404A | 8.16kw | 10kw | 1460kg | 2800×1400×2000mm |
| FIB-25D | 2.5T | R404A | 9.51kw | 12kw | 1660kg | 3200×1400×2000mm |
| FIB-30D | 3T | R22/R404A | 11.52kw | 14kw | 2180kg | 3600×1400×2200mm |
| FIB-35D | 3.5T | R22/R404A | 14.85kw | 18kw | 2100kg | 3600×1650×2000mm |
| FIB-50D | 5T | R22/R404A | 20.9kw | 25kw | (unit):960kg | L1400×W1000×H1250mm |
| (evaporator):2860kg | L4800×W1000×H2250mm |
| (cooling tower):460kg | 1380×H2170mm |
| FIB-100D | 10T | R22/R404A | 33.98kw | 50kw | (unit):1680kg | L1800×W1000×H1450mm |
| (evaporator):2860kg×2(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):670 | 2000×H2410mm |
| FIB-150D | 15T | R22/R404A | 59.15kw | 75kw | (unit):2160 | L2000×W1200×H1600mm |
| (evaporator):2860×3 | L4800×W1000×H2250mm |
| (cooling tower):1120 | 2175×H2565mm |
| FIB-200D | 20T | R22/R404A | 85.55kw | 105kw | (unit):2896 | L2400×W1600×H1800mm |
| (evaporator):2860×4(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1300 | 2650×H2645mm |
| FIB-250D | 25T | R22/R404A | 94.05kw | 120kw | (unit):3260 | L3200×W1800×H2200mm |
| (evaporator):2860×5(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1630 | 3050×H2780mm |
| FIB-300D | 30T | R22/R404A | 113.55kw | 150kw | (unit):3500 | L3000×W2000×H2200mm |
| (evaporator):2860×6(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):2730 | 3300×H2785mm |
System 2-brine refrigeration system features:
1. Ti pipe is used as evaporative coil to improve heat transfer effect and prevent rust, corrosion for longer life.
2. The part inside brine tank that touches brine water is made of PE/SS304 which bears low temperature and highly resists rusts.
3. Particular can dump and thawing tank design makes easier operation.
4. Thaw tank is heated by air discharge from compressor to save much energy and suits for low water temperature area.
5. Every brine block ice machine can be designed and built as per your specific requirements.
OUR BRINE BLOCK ICE MAKING MACHINE MODELS:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |
| FIB-50B | 5T | R22/R404A | 20.9kw | 25kw | (unit):960kg | L1400×W1000×H1250mm |
| (evaporator):2860kg | L4800×W1000×H2250mm |
| (cooling tower):460kg | 1380×H2170mm |
| FIB-100B | 10T | R22/R404A | 33.98kw | 50kw | (unit):1680kg | L1800×W1000×H1450mm |
| (evaporator):2860kg×2(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):670 | 2000×H2410mm |
| FIB-150B | 15T | R22/R404A | 59.15kw | 75kw | (unit):2160 | L2000×W1200×H1600mm |
| (evaporator):2860×3 | L4800×W1000×H2250mm |
| (cooling tower):1120 | 2175×H2565mm |
| FIB-200B | 20T | R22/R404A | 85.55kw | 105kw | (unit):2896 | L2400×W1600×H1800mm |
| (evaporator):2860×4(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1300 | 2650×H2645mm |
| FIB-250B | 25T | R22/R404A | 94.05kw | 120kw | (unit):3260 | L3200×W1800×H2200mm |
| (evaporator):2860×5(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1630 | 3050×H2780mm |
| FIB-300B | 30T | R22/R404A | 113.55kw | 150kw | (unit):3500 | L3000×W2000×H2200mm |
| (evaporator):2860×6(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):2730 | 3300×H2785mm |
System 3-containerized block ice machin features:
1. Convenient transportation and installation, no need to build a room for the container and machine.
2. Self-contained condensing unit is pre-piped and wired.
3. New ISO container equipped with lighting and drainage system.
4. Economically saving on cost and operation, advanced free maintenance design requires no specially trained engineer.
5. Both brine system and direct system can be installed in the 20 or 40 feet container.
Max capacity of direct system in 20'GP models: 6Ton/day
Max capacity of direct system in 40'HQ models: 18Ton/day
OUR CONTAINERIZED BLOCK ICE MAKER MODELS:
| Model | Daily
Capacity | Refrigerant | Electricity
Consumption | Operating
Weight | Size |
| 20foot container | FIB-10BC | 1T | R22/R404A | 6.0kw | 960kg | 6058×2438×2591mm |
| FIB-30BC | 3T | R22/R404A | 14.0kw | 2180kg | 6058×2438×2591mm |
| FIB-50BC | 5T | R22/R404A | 20.9kw | 3820kg | 6058×2438×2591mm |
| 40 foot container | FIB-80BC | 8T | R22/R404A | 30.79kw | 5600kg | 12192×2438×2895mm |
| FIB-100BC | 10T | R22/R404A | 33.98kw | 7400kg | 12192×2438×2895mm |
Tell us your needs (as specific as possible), like wanted daily capacity, ice usage, block ice weight or popular ice size in local market or desired ice making time, suitable suggestions provided or can be also specially customized.
PS: Standard block ice maker is designed on 33ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution);
FAQ:
Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.
You're invited to visit our official website www.focusun.com, if any other questions, please don't hesitate to contact us, we're glad to help with your business project!
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
