| Prod Model: |
FIB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
380V/3p/50Hz/ 220V/3p/60Hz |
| Refrigerant: |
R22 / R404A |
| Cooling Mode: |
Water Cooled |
| Block Ice Weight: |
5kg to 50kg |
| Color Of Machine: |
Blue Painting |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Ice Block |
Product Description

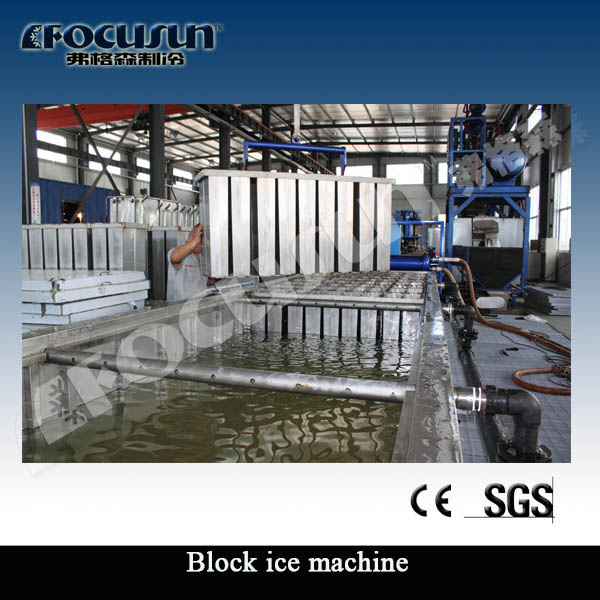

Features of brine tank block ice making machine:
1. Ti pipe is used as evaporative coil to improve the heat transfer effect, and its stainlessness, anti-corrosion can guarantee the long service time.
2. The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.
3. The particular design of ice thawing tank and ice dumping unit bring easier operation.
4. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
5. Modular shape, featuring of plug-and-play ready system especially for tropical & costal environment design.
6. Machine dimension is designed strictly according to international standard size for the container, which is convenient for transportation.
With regards to block ice weight, we can design our standard weight ( block ice size: L X W X H mm) or customized.
5kg (120x100x460mm)
10kg (155x100x700mm)
15kg (185x125x700mm)
20kg (245x125x700mm)
25kg (315x125x700mm)
50kg (480x160x700mm)
If customers don't have an existing site to place the block ice plant, he or she can choose the ice block making machine to be installed in a 20ft or 40ft container, For brine system block ice maker:
1) The smallest capacity containerized we make ice 5ton/day which in a 20' container.
2) The biggest capacity containerized we make is 12.5ton/day which in a 40' container.
For containerized ice block machine, it is very easy for transportation and installation, if you don't have suitable place to put the machine, we then recommend you containerized type, because you don't need to re-build a room again.
Specification of 10ton/day brine cooling block ice maker machine:
If you are interested in our brine system block ice machine(with brine tank), please contact us. We would be very glad to be on service for you, our engineers could design the layouts according to your requirements. We are definitely to contact you within 3 days after getting your inquiry.
Advantages of Focusun:
- 1. Leading ice making machines manufacturer with rich experience;
- 2. One-station solution for ice storage room ,cold room, packing sytsem, ice delivery system, etc.
- 3. Adopt famous high quality components to guarantee the quality;
- 4. Many successful cases like
Installation:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual are provided to guide the installation.
2).Installing by FOCUSUN engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers' arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer's reason, USD100/day for one person as installation fee. Free of charge for one week.
We are very interested to have your inquiry.
We are looking forward to give our best supports.
We are also welcome your visit to FOCUSUN CHINA FACTORY to have face-to-face meeting with our engineering team.
