| Prod Model: |
FIF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Generator Material: |
Carbon Steel/Stainless Steel |
| Gas: |
R22/R404A |
| Power: |
220V/380V/415V/440V |
| Frequency: |
50Hz/60Hz |
| Ice Shape: |
Flake Ice |
| Condition: |
New |
Product Description
Focusun supply 3 types flake ice maker:
1. fresh water technology;
Feature:
Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
Direct liquid feeding and dry evaporation, simple & safe to control.
Integrated modular design, convenient to install and maintain.
2. seawater technology;
2.1. seawater technology-land use;
Design Feature:
Use seawater as inlet water, which is mainly suitable for coastal areas;
Adopt special anti-corrosion materials for pipes, deepened oil tank and marine used seawater condenser;
A number of different daily capacities models are available;
2.2. seawater technology-marine use;
After making thorough research on the global market demand and climate conditions in different areas, Focusun develops Marine used flake ice making machine in order to provide professional service for marine cooling operation on the boat.
Focusun seawater flake ice plant is designed for large ocean-going fishing industry which could overcome the corrosion of seawater, pitching and swing problems of vessels.
Design Feature:
Adopt Bitzer deepened oil tank and marine used seawater condenser;
Module design adopted with all spare parts welded;
Onboard ice machine operates normally regardless of the vessel's pitching and rolling;
3. 20ft/40ft containerized technology;
Container integrated structure enables easiness on installation, transportation and production;
Economically saving on operation and convenient maintenance.
Small capacity flake ice maker:
| Model | Daily
capacity | Refrigerant | Electric
consumption | Installment
power | Operating
weight | Size (L×W×H) |
| FIF-05A | 0.5T | R22/R404A | 2.56kw | 2.2kw | 208kg | 1200×740×590mm |
| FIF-08A | 0.8T | R22/R404A | 4.43kw | 2.8kw | 235kg | 1200×740×650mm |
| FIF-10A | 1T | R22/R404A | 5.16kw | 4.2kw | 380kg | 1200×740×780mm |
| FIF-12A | 1.2T | R22/R404A | 6.63kw | 4.5kw | 420kg | 1400×960×780mm |
| FIF-15A | 1.6T | R22/R404A | 7.72kw | 5kw | 450kg | 1560×1200×880mm |
| FIF-20A | 2T | R22/R404A | 11.17kw | 6.5kw | 480kg | 1560×1200×960mm |
| FIF-25A | 2.5T | R22/R404A | 12.62kw | 8kw | 550kg | 1560×1200×1150mm |
| FIF-30A | 3T | R22/R404A | 14.35kw | 10kw | 550kg | 1560×1200×1150mm |
Medium capacity flake ice maker:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |

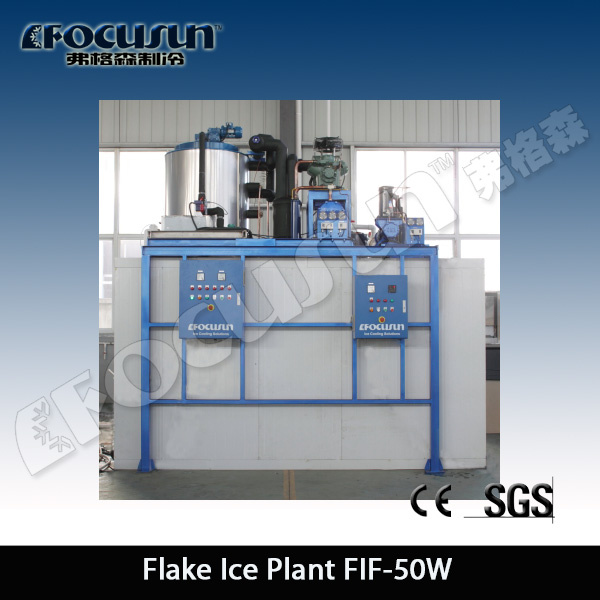

| FIF-50 | 5T | R22/R404A | 17.72kw | 22kw | 1250kg | 2200×1050×1550mm |
| FIF-80 | 8T | R22/R404A | 25.55kw | 30kw | 1800kg | 3400×1550×1800mm |
| FIF-100 | 10T | R22/R404A | 34.31kw | 42kw | 2200kg | 3550×1550×2100mm |
| FIF-120 | 12T | R22/R404A | 38.80kw | 50kw | 3000kg | 3720×1650×2050mm |
| FIF-150 | 15T | R22/R404A | 49.35kw | 60kw | 3200kg | 4000×1850×2400mm |
| FIF-200 | 20T | R22/R404A | 60.40kw | 80kw | 3600kg | 4200×2000×2914mm |
Large capacity flake ice maker:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |
| FIF-250 | 25T | R22/R404A | 78.85 | 53KW | (unit):2500kg | 2500×2000×2000mm |
| (evaporator):3000kg | 2050×1660×2450mm |
| FIF -300 | 30T | R22/R404A | 102.45kw | 125kw | (unit):4500kg | 2800×2200×2200mm |
| (evaporator):4500kg | 2400×2000×3000mm |
| FIF -350 | 35T | R22/R404A | 115.35kw | 140kw | (unit):2800kg | 2800×2200×2200mm |
| (evaporator):4600kg | 2400×2000×3200mm |
| FIF -400 | 40T | R22/R404A | 147.35kw | 180kw | (unit):3000kg | 2800×2200×2200mm |
| (evaporator):5500kg | 2800×2400×3600mm |
| FIF -500 | 50T | R22/R404A | 176.3kw | 220kw | (unit):3200kg | 2800×2200×2200mm |
| (evaporator):6500kg | 3000×2500×4500mm |
| FIF -600 | 60T | R22/R404A | 214.9kw | 280kw | (unit):4500kg | 3400×2200×2200mm |
| (evaporator):6500kg | 3000×2500×4500mm |
Contaierized flake ice maker:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Operating
weight | Size (L×W×H) |
| 20ft | FIF-50C | 5T | R404A | 17.72kw | 3600kg | 6058×2438×2591mm |
| FIF-100C | 10T | R404A | 34.31kw | 4700kg | 6058×2438×2591mm |
| FIF-120C | 12T | R404A | 38.8kw | 5500kg | 6058×2438×2591mm |
| FIF-150C | 15T | R404A | 49.35kw | 5500kg | 6058×2438×2591mm |
| FIF-200C | 20T | R404A | 60.41kw | 6100kg | 6058×2438×2591mm |
| 40ft | FIF-250C | 25T | R404A | 78.85kw | 6500kg | 12192×2438×2895mm |
| FIF-300C | 30T | R404A | 102.45kw | 6800kg | 12192×2438×2895mm |
| FIF-400C | 40T | R404A | 147.35kw | 8000kg | 12192×2438×2895mm |
| FIF-500C | 50T | R404A | 176.3kw | 8500kg | 12192×2438×2895mm |
| FIF-600C | 60T | R404A | 204.9kw | 9200g | 12192×2438×2895mm |
We also provide complete ice cooling solution, like flake ice storage,including common storage and automatic storage to meet your difficult requirement, also the ice compactor, etc.
FAQ:
Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.
