| Prod Model: |
FIT FIP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Copeland |
| Gas: |
R22/R404A |
| External Dia.: |
22mm, 29mm, 35mm |
| Frequency: |
50Hz/60Hz |
| Certification: |
CE |
| Ice Shape: |
Bullet |
| Condition: |
New |
Product Description
FOCUSUN Tube ice machines are divided into small capacity and large capacity.

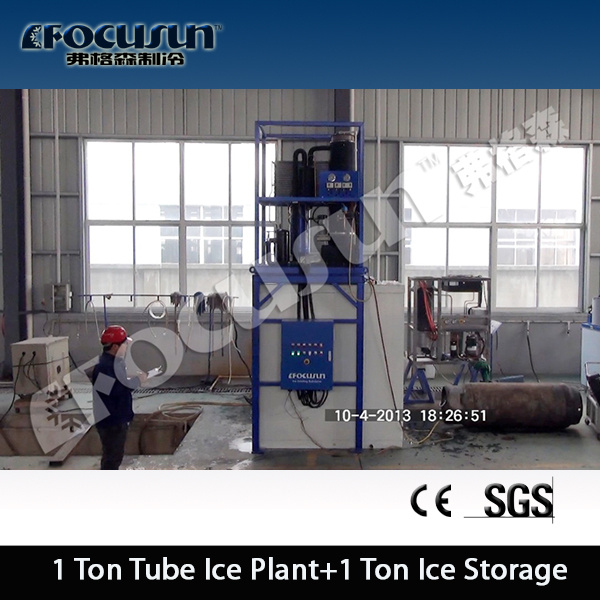

Small capacity tube ice machine
A complete unit with all equipments assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to power and water, the machine is ready to run.
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Install
power |
Operating
weight |
Size (L×W×H) |
| FIT-10 | 1T | R22/R404A | 4.74KW | 6KW | 890 kg | 1400×800×1800 mm |
| FIT-30 | 3T | R22/R404A | 11.01KW | 13.5 KW | 1250 kg | 1700×920×2000 mm |
| FIT-50 | 5T | R22/R404A | 16.03KW | 20 KW | 1650 kg | 1700×1200×2200 mm |
| FIT-60 | 6T | R22/R404A | 18.42KW | 28 KW | 1650 kg | 1800×1250×2200 mm |
| FIT-80 | 8T | R22/R404A | 24.55KW | 30 KW | 1650 kg | 2000×1450×2200 mm |
Large capacity tube ice machine
A modular design is adopted, consists of 3 modules.
Evaporator module: The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting, place the evaporator horizontally and stand it upright when installing.
Compressor module: Compressor, condenser, reservoir, liquid receiver, oil separator, and electric control box are installed on a steel frame to form the whole set.
Cooling tower module: Cooling tower, water pump and water pipes.
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Install
power |
Operating
weight |
Size (L×W×H) |
| FIT-100 | 10T | R22/R404A | 34.95KW | 45 KW | (unit):1560 kg | 1800×1500×1600mm |
| (evaporator):2296 kg | 1180×1180×3500mm |
| (cooling tower):670 kg | Φ2000×2410mm |
| FIT-150 | 15T | R22/R404A | 48.4KW | 60 KW | (unit):1890 kg | 2000×1800×1600mm |
| (evaporator):2685 kg | 1250×1250×4200mm |
| (cooling tower):1120 kg | Φ2175×2565mm |
| FIT-200 | 20T | R22/R404A | 68.5KW | 85 KW | (unit):2260 kg | 2200×2000×1800mm |
| (evaporator):3650 kg | 1350×1350×4600mm |
| (cooling tower):1120 kg | Φ2175×2565mm |
| FIT-250 | 25T | R22/R404A | 85.3KW | 105 KW | (unit):2680 kg | 2400×2200×2000 |
| (evaporator):4260 kg | 1450×1450×4800mm |
| (cooling tower):1300 kg | Φ2650×2645mm |
| FIT-300 | 30T | R22/R404A | 105KW | 130 KW | (unit):3280 kg | 2800×2200×2000mm |
| (evaporator):4860 kg | 1450×1450×5200mm |
| (cooling tower):1630 kg | Φ3050×2780mm |
| FIT-350 | 35T | R22/R404A | 116KW | 140 KW | (unit):3860 kg | 3500×2200×2000mm |
| (evaporator):5650 kg | 1500×1500×5500mm |
| (cooling tower):2730 kg | Φ3770×3490mm |
| FIT-400 | 40T | R22/R404A | 139.6KW | 170 KW | (unit):4250 kg | 3600×2200×2000mm |
| (evaporator):5890 kg | 1500×1500×5800mm |
| (cooling tower):2730 kg | Φ3770×3490mm |
| FIT-500 | 50T | R22/R404A | 177KW | 220 KW | (unit):4560 kg | 4300×2200×2000mm |
| (evaporator):6500 kg | 1800×1800×6000mm |
| (cooling tower):3770 kg | Φ3770×3690mm |
If you can't use up all ice after produced, you can pack and store them by using a packing machine and storage. Kindly let us know your demand, we can provide relatived packer and storage.
FAQ:
Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.
You're invited to visit our official website www.focusun.com, if any other questions, please don't hesitate to contact us, we're glad to help with your business project!
