| Prod Model: |
TYA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Suction Filter |
Product Description

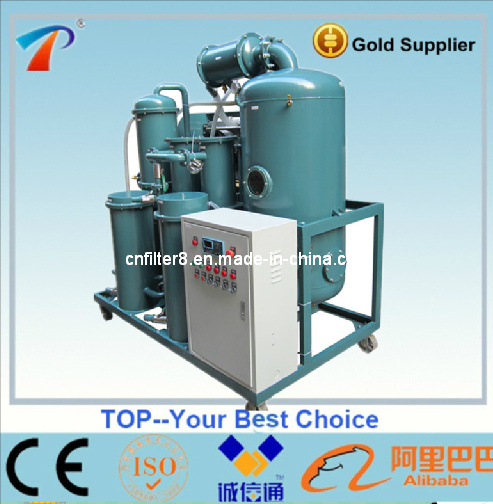

Portable fluid purifiers remove free and dissolved water, dirt, and free and dissolved air/gases from hydraulic, lube, and dielectric oils. TYA oil purifiers reduce system wear; Improve on-line and system performance; Extend fluid life; And reduce fluid disposal costs and environmental risks.
1. Dewater, degas and particles removal
2. ISO9001: 2000, CE approval
3. Best after sales service
4. Promptly delivery
Application:
TYA Multi-Function Lubricating Oil purifier is widely applied in electric power, metallurgy, mines, machinery, chemical engineering, traffic, manufacturing, food industry, to process various used lubrication oils, such as gear oil, engine oil, hydraulic oil, freezer oil, compressor oil, vacuum pump oil, internal-combustion oil, heat treating oil. It can quickly remove impurities, water, gas, tiny hydrocarbon and acid from oil by flash evaporation to enhance the oil quality and recover the nature of lubricating oil, almost like new.
Characteristics:
1. The filter elements with different precision consist of fine and multi-stage filtration system, which can effectively remove mechanical impurities in waste oil.
2. Excellent breaking emulsification, degassing and dewatering system, which adopts three-dimensional wide flash vaporization technology and membrane evaporation technology to deeply separate moisture, gas, light hydrocarbon and light acid away from oil.
3. Advanced pressure protection system and level control system to make sure a safe and reliable operation.
Stably automatic and manual electric heating temperature-control system guarantees the o balance oil heating and constant temperature.
4. Adopted high effective air-cooling condensed system which is good at cooling the steam to water and draining it out.
Oil purifier, oil filtration, oil purification, oil filter, oil treatment, oil saving, oil recycling, oil processing, oil filtering, energy saving, oil regeneration, oil processor, oil process, oil purify, oil regenerating, oil restoration, waste oil disposal, oil reclaimed, oil reclaiming, waste oil management, oil regenerate, oil reconditioned, oil reconstituted, oil restituting, oil recovering, oil recondition, oil filters, oil refinery, oil refiner, oil cleaning, oil recycle
Recommend test equipment
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Consolidation Point Determinator model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
|
Index name |
Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
|
Working pressure |
MPa |
≤ 0.4 |
|
Temperature range |
°C |
20 ~80 |
|
Demulsifying value |
min |
≤15/min(GB/F7035) |
|
Water content |
ppm |
≤100 |
|
Gas content |
% |
≤ 0.1 |
|
Cleanness |
|
≤ NAS 6 grade |
|
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
|
Working noise |
dB(A) |
≤65~80 |
|
Heating power |
Kw |
36 |
40 |
45 |
60 |
80 |
110 |
145 |
160 |
|
Total power |
Kw |
38 |
42 |
47 |
65 |
96 |
124 |
157 |
178 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
|
Weight |
kg |
350 |
380 |
400 |
450 |
750 |
880 |
1100 |
1300 |
|
Dimension |
L |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1950 |
2100 |
|
|
W |
mm |
1000 |
1050 |
1050 |
1150 |
1150 |
1600 |
1600 |
1700 |
|
|
H |
mm |
1600 |
1600 |
1650 |
1700 |
1750 |
1950 |
1950 |
1950 |
Chongqing TOP Oil Purifier Manufacture Co, . Ltd is a corporation dedicated to research and manufacture oil purification machines and test equipment. Our Company has strong capability in research and manufacture, large scale of specialized production, perfect market system, good after-sale service, and thus has achieved good reputation and perfect market image in increasingly fierce market competition.
Our company mainly manufactures and sells below products: Insulting Oil Purifier, Turbine Oil Purification machine, Hydraulic Oil Purifier, Lubricating oil filtration machine, Transformer Oil filtering machine, fuel oil restoration, Steam-Turbine Oil reconditioner, Dielectric fluid regeneration system, Circuit-Breaker Oil recovering system, Compressor Oil recovering machine, Gear Oil renewal machine, Coolant Oil treatment, Quenching Oil reclaiming machine, Oil and Water Separator, Steel-Rolling Oil regeneration equipment, Waste automobile Oil Recycling equipment, petroleum machine and test equipment, etc.
TOP oil purifiers have been widely used in electricity, petrochemical, ship manufacturing, steel construction, bridge, automobile, railways fields and so on, which has been playing an important role in decreasing consumption and environmental pollution for customers.
Since established, taking the mission of "survival based on good quality and development based on technology innovation", TOP has introduced advanced vacuum oil filtering technology from foreign countries and constantly researched and produced oil purification devices to meet the market requirements at home and abroad.
"There is no best, only better. " TOP will make continuous efforts as always to provide better purification equipment for you.
Our oil filtration machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine
Series EOR series waste engine oil recycling system
