| Prod Model: |
A55-FAD01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Astouch |
| Size: |
55inch |
| Model Number: |
A55-Fad01 |
| Active Display Area (mm): |
930.24mm(W)*523.26mm(H) |
| Resolution: |
190*1080 |
| Pixel Pitch(mm): |
0.4845(H)*0.4845(V) |
| Brightness(Nits): |
450nits |
| Contrast Ratio: |
4000:1 |
| Viewing Angle: |
178/178(H/V) |
| Response Time: |
5ms |
| Application: |
Outdoor AD Player |
| Screen Size: |
50-60 Inches |
| Installation: |
Vertical |
| Type: |
Standalone Version AD Player |
| Touch Screen Type: |
Resistive |
| Screen Technology: |
LCD |
| Interface Type: |
HDMI |
| Remote Control: |
With Remote Control |
| Customized: |
Customized |
| OS: |
Stand Alone Version |
Product Description

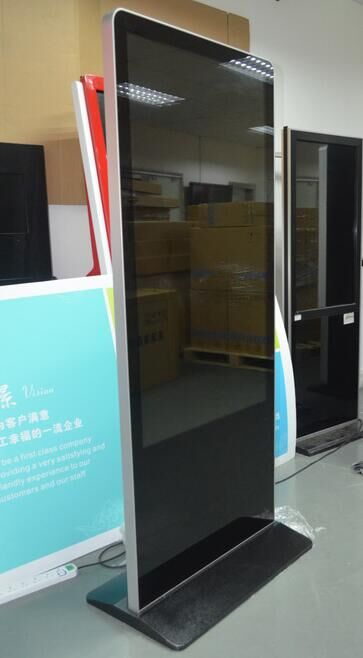

55 inch floor stand advertising player display products for shopping mall
Product Specification |
General
Information |
Panel Brand |
Samsung/LG/AUTO/ LCD/LED/Chimei |
Panel Size |
55" ( 17-84 Inch Optional ) |
Product Color |
Black,White.color of outershell is customized. |
IR Touch
Screen
Details |
Touch Max Resolution |
4096×4096 |
Transparency |
> 90%, Up to 100% |
Response Speed |
<10ms |
Anti-Sunlight/ strong light interference |
Touch Point |
2-48 optional |
Minimum identification point: |
3mm x 3mm |
PC Info |
CPU |
Intel i3(i5,i7optional) |
RAM |
4GB ,DDR3-1333, 8GB is optional |
Hard Disk |
500GB |
Graphics |
Intel HD4000 |
WIFI |
802.11 B.G.N |
Audio card |
Realtek ALC662 |
Camera |
Optional |
OS |
DOS, WINDOWS 7 or UP/ME/2000/
XP/2003/VISTA, LINUX. |
Interfaces |
VGA Output |
1 |
HDMI Output |
1 |
Audio Output |
1 |
Microphone Input |
1 |
USB |
4 or more depending on the main board |
RJ45 |
1 |
Accessory |
Power supply cable, user manual, keys,adapter |
Temperature Details:Touch screen working temperature:-41°C ~70°C,Storage Temperature:-50°C ~85°C;The machine operating
temperature:-4~65°C,Storage Temperature:-7~65°C. |
|
Features |
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. |
2.Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work. |
3.Support shockproof and dust proof function. |
4.Adopts high transparent tempered glass (2-6 mm ) as protection layer toprevent lcd/led panel being broken or
distorted. |
5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen. |
6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional ) |
7.Build-in speakers: 2 x 5W. Amplifier / 3.5mm audio jack is optional. |
8.Playing circles automatically when powers on . |
9.Allowing memory of breakpoint/AD management system. |
10.Automatically generating playing list/Mixed displaying of videos,images and music |
