| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diametr: |
2.6mm to 100mm |
| Thickness: |
0.15mm to 4.5mm |
| Length: |
10mm to 2000mm |
| Surface: |
Anodized |
| Shape: |
Round |
| Surface Treatment: |
Anodized |
| Grade: |
6000 Series |
| Alloy: |
Alloy |
| Temper: |
T3 - T8 |
Product Description
Zhangjiagang Channel int'l co., ltd has over 20 years experiences in aluminum processing and manufacturing. We provide various styles of round tubes, square tubes, and special pipes available in different sizes of excellent quality at reasonable price. We are glad to customize products according to your request.
Square industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1-0.25mm.
2. Alloy & temper: Grade 6000 Series, T4-T6
3. Thickness: 1.0mm or according to customer's requirements
4. Max. Length: 6.0m, export length for 20" Container: 5.8m.

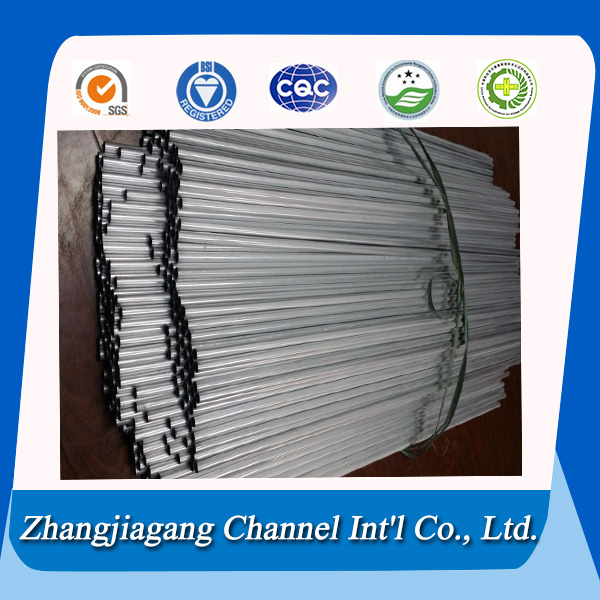

Round industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1~0.25mm.
2. Alloy & temper: 6063-T5, Grade 6000 Series.
3. Thickness: 1.0mm, according to customer's requirements.
4. Diameter: 2.5mm or according to customer's requirements.
Surface treatments of industrial Aluminum Tube/Pipe:
1) Anodizing
2) Polishing
3) Powder coated
4) Electrophoresis
5) Sand-blast
6) Coating film
Applications for industrial Aluminum Alloy Tube/Pipe:
1) Micro-motors
2) Cylinder machines without wearing sleeve
3) Pneumatic cylinder
4) Heat transfer equipment
5) Construction industry
6) Curtain track
) Structure support
8) Irrigation pipes
9) Furniture
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
| 1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
| 3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
| 5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
| 5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
| 6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
| 6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
| 6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
| 6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
| 7075 | 0.4 | 2.1-2.9 | 0.5 | 1.2-2.0 | 0.3 | 5.1-6.1 | 0.18-0.28 | 0.2 |
ZHANGJJIAG CHANNEL INT' L Co., Ltd is a primarily engaged in metal and non-ferrous metal Titanium pipes, Aluninium pipe/tubes, Stainless steel tube and fittings, bar, strips, foils and plates; And the machines of furance, extrusion express, drawn burnch, roll milling for the copper & aluminum production lines.
Zhangjiagang Channel Int'l Co., Ltd., as an important external business platform, enjoys competitive advantages in exporting of Metallica as well as titanium pipe, alumium pipe, aluminium foils, Brass tube, steel tubes, steel strips, steel sheets, stainless steel metallica, Flang&fitting metallica and copper and aluminium Industrial - equipment. We have very comprehensive understanding of different standards such as ASTM\EN\JIS\BS\DIN and GOST, Sitindustrie' S plants are ISO 9002: 2000 approved and homologated by the most important international organizations: RINA, TUV, BUREAU VERITAS, LLOYDS REGISTER, DNV etc. We can satisfy any requirements with complete range of types and specifications.
We sincerely welcome partners around the world to establish business cooperation with us on the basis of mutual trust, benefit and development.
