| Prod Model: |
TKF(R)-60GW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compresser: |
Hitachi/Gmcc/SANYO |
| Cop: |
3.7-3.8 |
| Application Areas: |
Office,Room,Hospital |
| Cooling Capaicty: |
20000BTU |
| Type: |
Fixed-frequency Air Conditioner |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
MEPS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

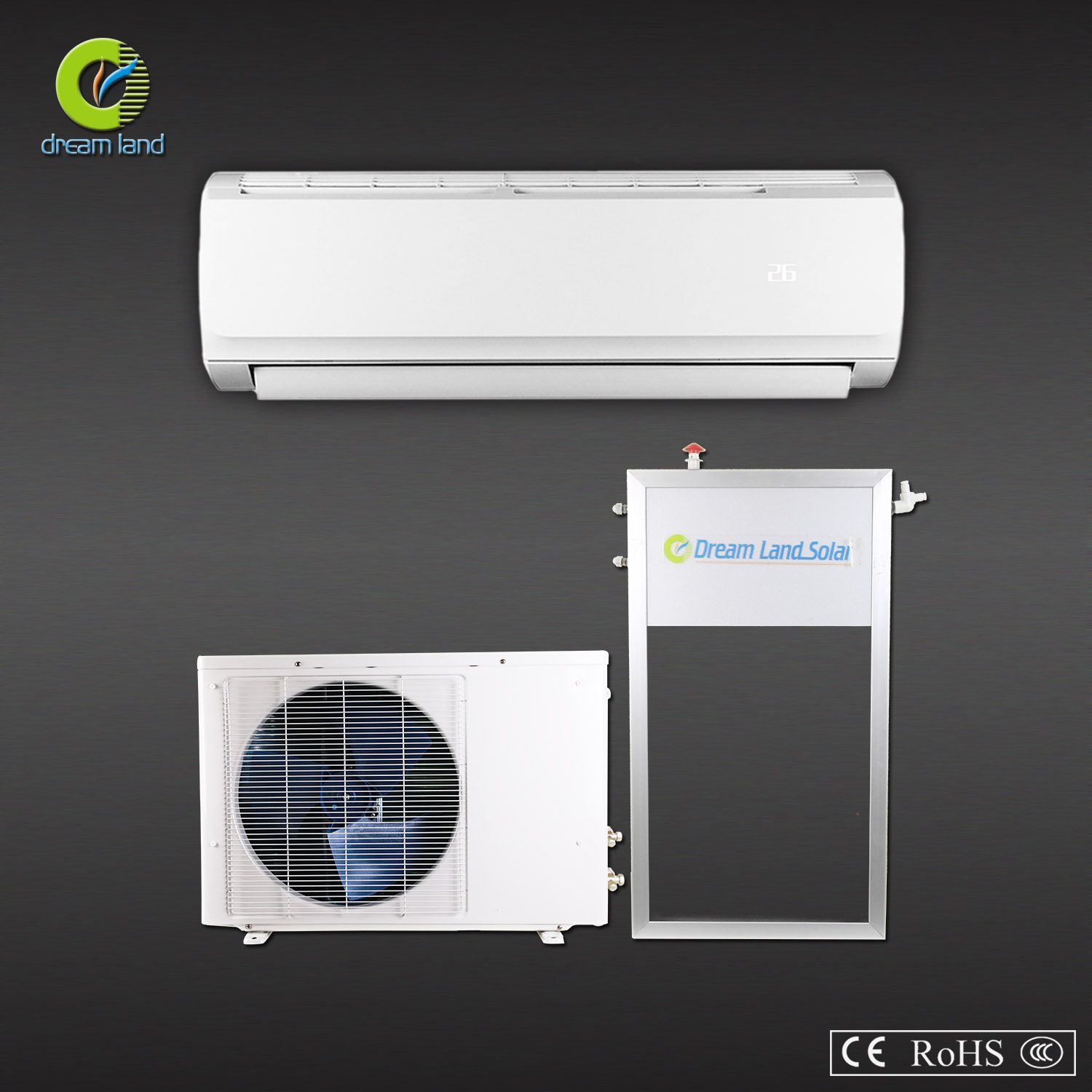

Solar product,Solar collector,Solar panel air conditioner(TKFR-35GW)
(1) Why choose hybrid solar air conditioner?
1. 30-50% energy saving
2. CE/ISO certificates
3. Famous brand compressor, high reliability and long lives
4. High efficiency heat exchange system
5. Smooth running from -7 to 53 cels degree
6. Digital LED display
7. Multi-fold heat exchanger, high-quality internal thread copper pipe and hydrophilic aluminum foil
foil make the cooling capacity stronger
8. Anti dust air filter makes air fresher
(2) Basic features of the units:
1.World famous brand compressor---Hitachi
2.LED display
3.Washable and movable anti dust air filter
4.12 hour Timer function
5.With remote control
6.EER: above 4.0
7.Easy installation, same normal air conditioner
8.Energy saving at least 50% comparing to normal air conditioner.
9.Enviornmently friendly gas--R410A
10.100% copper pipes ensures the strong cooling capacity.
(3)The parameter data:
| Model No. | TKF(R)-35GW |
| Power Supply:220-240VAC, 1PH, 60Hz |
|
|
| Performance |
|
|
|
|
| Capacity | Cooling | Btu/h | 12000 |
| W | 3500 |
| Heating | Btu/h | 13000 |
| W | 3800 |
| Noise | Indoor | dB(A) | ≤42 |
| Outdoor | dB(A) | ≤52 |
| Air Circulation | m³/h | 550 |
| Suitable Area | m² | 15~23 |
| EER | W/W | 3.89 |
| Btu/h/w | 13.27 |
| Power Consumption |
|
|
|
|
| Power Input | Cooling | W | 800~1025 |
| Heating | W | 800~1050+350 |
| Rated Current | Cooling | A | 3.70~4.80 |
| Heating | A | 3.70~4.90+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*10 |
| Dimensions |
|
|
|
|
| Indoor Unit | Net | mm | 880×286×203 |
| Shipping | mm | 935×350×270 |
| Outdoor Unit | Net | mm | 790*260*540 |
| Shipping | mm | 910*370*610 |
| Collector | Net | mm | 1000*555*80 |
| Shipping | mm | 1100*680*110 |
| Weight |
|
|
|
|
| Indoor Unit | Net/Gross | kg | 10/11.5 |
| Outdoor Unit | Net/Gross | kg | 38/40 |
| Solar Collector | Net/Gross | kg | 16/17 |
| Loading Qty | in 20feet | sets | 72 |
| 40HQ | sets | 175 |
Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. Established in Aug. 2006 with a registration capital of 2.99million US dollars, is a company focusing on solar energy exploitation and utilization. It is a professional enterprise with R&D team, production line and sales team on environmental friendly products, energy saving products and air purifying products with the support of its engineers, advanced production equipment and laboratory. It's an outstanding manufacturer in the world with high technology, big production capacity, wild product range and strong competitiveness on domestic solar assisted air conditioners, commercial solar assisted air conditioners, atmospheric water generators, air purifiers and dehumidifiers.
Chuanglan includes one head office and one subsidiary company Suzhou Sunsnow. Its head office locates in New Technology Industrial Development Zone of Chuangshu City, where is with full access to development opportunities. It has more than 80 patents at home and abroad, total access is over 12.9million US dollars at present, and has been selected as Wal-Mart's qualified supplier in Jan 2014. With a land of 21, 000 square meter and a plant of over 22, 000 square meter, equipped with 3 automatic production lines and research and testing facilities, Chuanglan is able to produce 500, 000 units annually. Thus, Chuanglan is the only manufacturer with research and development ability, production line and sales team on hybrid solar air conditioner industry, whose annually turnover is 32million US dollars. Thanks to its R&D ability and production capacity, It has been successfully marketing its products to over 130 countries. Chuanglan has made a big leap in a few years.
Aiming at becoming the top company in the clean energy development and usage area, Chuanglan considers solar air conditioner as its core product, and produces air purifiers, dehumidifiers, solar water heaters, atmospheric water generators and high energy water drinking machines at the same time. A technical, industrialization and internationalization Chuanglan is growing rapidly.
