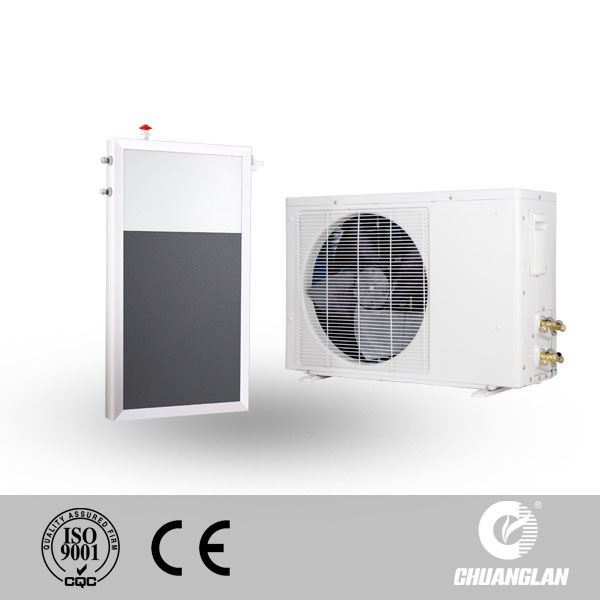

Flat Plate Type Hybrid Solar Air Conditioner

Flat Plate Type Hybrid Solar Air Conditioner
Price: US $ 390-410/Set
Trade Terms: FOB,CFR,EXW
Min Order: 10/Set
Pay Type: L/C,T/T,Western Union
Prod Model: TKF(R)-26GW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity: 9000BTU/1p
Compressor Brand: Hitachi
Eer: 3.8
Installation: Similar as Normal AC
Energy Saving: 30-50%
Type: Fixed-frequency Air Conditioner
Capacity: 9000-12000 BTU
Usage: Room
Indoor Machine Noise: 24-35dB
Certification: MEPS
China Energy Efficiency Standard: Level 1
Cooling/Heating: Cooling/Heating
Power Source: Electrical
Power Type: AC
Condition: New

Product Description



Feature:

Hybrid Solar Air Conditioner
* 30- 50% energy-saving
* Mitsubishi/Toshiba compressor
* ISO CE certificates


Product Description


1. Solar Powered Air Conditioner, energy saving 30-50%, solar heat energy reduce the burden of compressor, means we use a smaller compressor to achieve the same cooling capacity. This is the first reason why it saves energy.
2. high efficiency heat exchange system is another reason why saves energy.
3. world famous brand compressors, high reliability and long lives
4.  Digital LED display
5.  Multi-fold heat exchanger, high-quality internal thread copper pipe and hydrophilic aluminum foil make the cooling capacity stronger
6.  anti dust air filter makes air fresher
7.  Digital e-Touch, convenient and electricity-saving, easier operation for elder people and kids.
8.  Fluorescent button, visible at night

Model No.TKF(R)-26GWTKF(R)-35GWTKF(R)-60GWTKF(R)-72GW
Power Supply:220-240VAC, 1PH, 50Hz









Performance













CapacityCoolingBtu/h9000120002000024000
W2600350060007200
HeatingBtu/h10000130002200027000
W2900380066007900
NoiseIndoordB(A)≤40≤42≤46≤50
OutdoordB(A)≤50≤52≤56≤58
Air Circulationm³/h5005508501150
Suitable Area11~1715~2325~4230~48
EERW/W3.643.893.883.82
Btu/h/w12.4213.2713.2413.03
Power Consumption













Power InputCoolingW650~770800~10251350~15601700~1900
HeatingW650~780+350800~1050+3501350~1590+3501700~1950+350
Rated CurrentCoolingA3.00~3.603.70~4.806.30~7.308.00~8.90
HeatingA3.00~3.65+1.63.70~4.90+1.66.30~7.50+1.68.00~8.90+1.6
Vacuum TubeDiameter*Length*Pcs47mm*500mm*1047mm*500mm*1047mm*620mm*1147mm*620mm*11
Dimensions













Indoor UnitNetmm802*265*190880×286×203940×300×2201080*220*300
Shippingmm860*325*255935×350×2701003×360×2801136*285*360
Outdoor UnitNetmm790*260*540790*260*540850*300*755940*300*755
Shippingmm910*370*610910*370*610950*410*760990*400*770
Water TankShippingmm910*400*330910*400*330980*400*370980*400*370
Vacuum TubeShippingmm
Weight













Indoor UnitNet/Grosskg9/10.510/11.516/17.520/22
Outdoor UnitNet/Grosskg31/3438/4050/5255/58
Solar CollectorNet/Grosskg13/1513/1516/1716/17
Loading Qtyin 20feetsets66664946
40HQsets162162120112



Solar Air Conditioner

Running principles
Chuanglan hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power. The two kinds of energy work complementally in accordance with principles of fluid dynamics. It combines the absorption working system to compression system by using environmental-friendly media in cooling and heating on the basic of traditional air-conditioner technology to achieve energy-saving and environment protection.

Why saving energy?

1. Hot water inside the collector helps reducing
the consumption on compressor

2. AC adopts high efficiency heat-exchange system

Installation suggestion

1. Similar to conventional ac

2. Facing south is not a must

3. Suggest outdoor unit lower than indoor unit for drain water supplement to collector

4. When empty the air, don't forget the pipes for collector

5. Fill water when newly installed

Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. Established in Aug. 2006 with a registration capital of 2.99million US dollars, is a company focusing on solar energy exploitation and utilization. It is a professional enterprise with R&D team, production line and sales team on environmental friendly products, energy saving products and air purifying products with the support of its engineers, advanced production equipment and laboratory. It's an outstanding manufacturer in the world with high technology, big production capacity, wild product range and strong competitiveness on domestic solar assisted air conditioners, commercial solar assisted air conditioners, atmospheric water generators, air purifiers and dehumidifiers.

Chuanglan includes one head office and one subsidiary company Suzhou Sunsnow. Its head office locates in New Technology Industrial Development Zone of Chuangshu City, where is with full access to development opportunities. It has more than 80 patents at home and abroad, total access is over 12.9million US dollars at present, and has been selected as Wal-Mart's qualified supplier in Jan 2014. With a land of 21, 000 square meter and a plant of over 22, 000 square meter, equipped with 3 automatic production lines and research and testing facilities, Chuanglan is able to produce 500, 000 units annually. Thus, Chuanglan is the only manufacturer with research and development ability, production line and sales team on hybrid solar air conditioner industry, whose annually turnover is 32million US dollars. Thanks to its R&D ability and production capacity, It has been successfully marketing its products to over 130 countries. Chuanglan has made a big leap in a few years.

Aiming at becoming the top company in the clean energy development and usage area, Chuanglan considers solar air conditioner as its core product, and produces air purifiers, dehumidifiers, solar water heaters, atmospheric water generators and high energy water drinking machines at the same time. A technical, industrialization and internationalization Chuanglan is growing rapidly.
