| Prod Model: |
ZNPB1.0J-DF/FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fresh Keeping: |
Food Storage |
| Usage: |
for Experiment, for Manufacture, for Refrigerate |
| Certification: |
CE, ISO |
| Cooling Method: |
Direct Cooling |

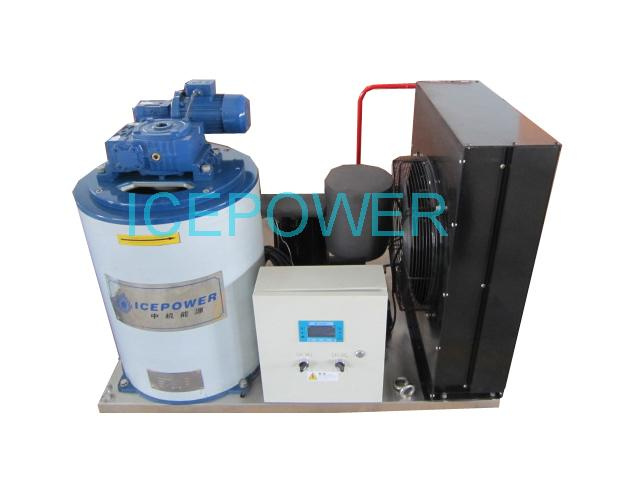

Product Description
Specifications:
1. Flake Ice Thickness: 1.5mm to 2.0mm
2. Power Supply: 3P/380V/50Hz
3. Daily Capacity: 1ton flake ice per 24hrs
4. Cooling Type: Air Cooling
5. Refrigerant: R22/R404A
6. Compressor: Bitzer
7. Evaporator: The evaporator of the flake ice machine is a vertical placed drum shape, equipped with the rotating blade which spins and scratches the ice of the inner wall of evaporative. When operating, the principle shaft and blade spins anti-clock wisely pushed by the reducer. Water is sprayed down from the sprinkler; Ice is formed from the water brain on the inner wall.
After our special processing, the evaporator is with good hardness, corrosion-resistance and excellent heat exchange.
8. Expansion Valve: Danfoss
9. Electric cabinet(Controller): Siemens/Schneider or others.
It operates automatically under the control of PLC without monitoring, and there are many auto-protections against supply water shortage, high/low pressure, electric current overload, etc. The quality is reliable and stable. CE approved.
Ice Features:
1. Flake ice: Irregular ice flakes with size about 40X40mm and thickness around 1.5-2.5mm.
2. The thin ice can be directly used for stirring and mixing refrigerated materials.
No acute edges and corners, So this thin ice will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.
The ice can get into the cracks between goods to decrease heating exchange with outside air and to keep the raw fresh food at a lower temperature and reasonable humidity.
3. Sub-cooled ice, hygienic with excellent fast cooling capacity.
4. It is hygienic ice with maximum cooling capacity.
Products Advantages:
1. Main components are mainly imported from U. S. A, German and Japan;
2. Most competitive price with high quality and performance;
3. Intelligent control by PLC;
4. Screw designed scraper, low resistance, low consumption, no noise;
5. Evaporator is designed especially for anti-swing and corrosion resistance; Nobelium plated carbon steel, 304 stainless steel or 316stainless steel is optional.
Factory Advantages:
1. State-owned enterprise, reliable credit, professional production, stable quality;
2. Advanced processing facility;
3. High QA control;
4. Delivery on time;
5. Customer satisfaction oriented;
6. With creative and active research and development team;
7. Broad prospect and strong financial backing.
China Icepower Energy Technology Co., Ltd. is a state-owned enterprise as a subsidiary of Chinese Academy of Agricultural Mechanization Sciences (CAAMS). It is professional in designing and manufacturing ice making equipments covering a range of commercial and industrial ice makers as well as plate ice makers. And It is also the production base for complete sets of chillers and ice storage central air conditioning systems in China.
