| Prod Model: |
LR-02T-LR-30T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flake Ice Capacity: |
5ton/Day-30tons/Day |
| Cooling Style: |
Air Cooling, Water Cooling |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Application: |
Fishery Harbor Ice Factory |
| Certification: |
SGS |
| Condition: |
New |
| Ice Shape: |
Flake Ice |
Product Description

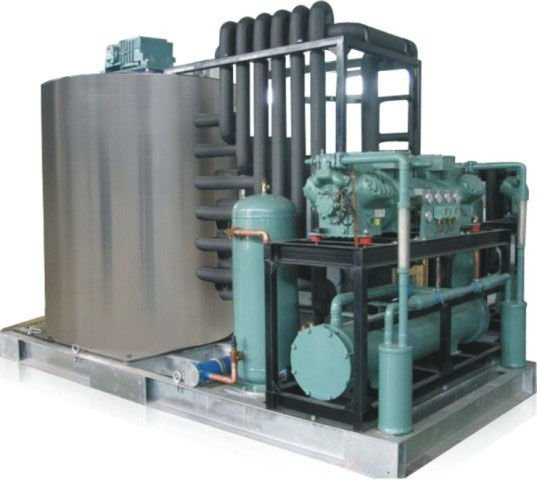

Features of the Medical cryogenic equipment-Flake Ice Machine
1. The main accessories are imported from U. S. A., Germany, Korea, Italy, which remains good reliability and makes the system perfect performance and energy-saving.
2. The cooling system and evaporator are automatically controlled by micro-computer, the system makes the machines with protectionwhen lack of phase, short of water, reverse, high&low pressure and ice bin full.
3. Intelligent design makes the operation reliable and steady, reduced the possibility of damage, easy and cheap for maintenance.
4. Ice Skates is a screw scraper, low resistance, low vibration and no noise
Superior performance:
1). Low failure and long working life.
2). Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.
3). High efficiency & environmental-friendly.
4). Superior safety and reliability: Dynamic micro-computer control system, easy for operation.
5). Low energy consumption and energy-saving.
6). Easy to install with the instruction.
Application
Aquatic appliance
Fishery fresh: In fish market, supermarket and seafood hotel, plenty of ice are used for the fish food preservation.
Fishery production and processing: In fishing and aquatic products processing factory, lots of ice is need as a cold storage and preservation of aquatic products.
Meat appliance
Slaughtering industry cooling: In production of poultry slaughter, ice is for cooling poultry
Food processing: In the cooked food production, ice water is for cooled chopped mix processing.
Food processing industry
Dairy processing: In ice cream production, required as large amount of chopped ice particles.
Bakery: Bread flour in the beating, need to use a lot of ice water to improve the processing temperature.
|
Model |
Daily output
kg/24h |
Ref.Capacity
kw |
Power supply |
Total power
kw |
Refrige
rants |
Unit Dimension
L*W*H(mm) |
Net Weight kg |
|
LR-02T |
200 |
1.2 |
1P/220V/60HZ |
1.1 |
R404A |
760*730*600 |
105 |
|
LR-05T |
500 |
3 |
3P/380V/50HZ |
2.62 |
R404A |
1310*890*780 |
195 |
|
LR-1T |
1000 |
6 |
3P/380V/50HZ |
4.31 |
R404A |
1310*970*880 |
227 |
|
LR-1.5T |
1500 |
9 |
3P/380V/50HZ |
8 |
R404A |
1310*970*980 |
364 |
|
LR-2T |
2000 |
12 |
3P/380V/50HZ |
10 |
R404A |
1500*1095*1050 |
425 |
|
LR-2.5T |
2500 |
15 |
3P/380V/50HZ |
12 |
R404A |
1500*1095*1200 |
468 |
|
LR-3T |
3000 |
18 |
3P/380V/50HZ |
15.11 |
R404A |
1750*1190*1200 |
530 |
|
LR-4T |
4000 |
24 |
3P/380V/50HZ |
18.32 |
R404A |
1700*1550*1250 |
646 |
|
LR-5T |
5000 |
30 |
3P/380V/50HZ |
23.12 |
R404A |
1750*1550*1600 |
765 |
|
LR-6T |
6000 |
36 |
3P/380V/50HZ |
26.12 |
R404A |
1750*1550*1600 |
825 |
|
LR-8T |
8000 |
52 |
3P/380V/50HZ |
31.5 |
R404A |
2530*1830*1680 |
978 |
|
LR-10T |
10000 |
65 |
3P/380V/50HZ |
45.5 |
R404A |
2530*1830*1680 |
1540 |
|
LR-15T |
15000 |
97.5 |
3P/380V/50HZ |
64 |
R22 |
3100*2090*1865 |
2120 |
|
LR-20T |
20000 |
130 |
3P/380V/50HZ |
75.8 |
R22 |
3695*2090*2050 |
2860 |
|
LR-25T |
25000 |
162.5 |
3P/380V/50HZ |
75 |
R22 |
3695*2090*2265 |
2940 |
|
LR-30T |
30000 |
210 |
3P/380V/50HZ |
86 |
R22 |
3880*21200*2400 |
3240 |
Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.
With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.
We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.
"Endless innovation for technology, continuous improvement for service" is our slogan. We will cooperate with all customers, following the "professional, honest and win-win" spirit.
