| Prod Model: |
LLC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification Doc: |
CE ISO |
| Ice Capacity: |
0.5~50t |
| Ice Shape: |
Slice |
| Power: |
>400W |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Household |
| Structure: |
Integral Type |
| Condensing Mode: |
Air-Cooled |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Filtering Device: |
With Filtering Device |
Product Description

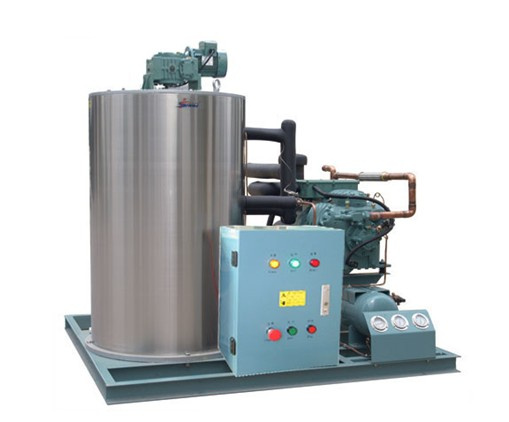

Flack ice maker machine, ice block machine
Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm. The thin ice can be directly used for stirring and mixing refrigerated materials. No acute edges and corners so it will not damage the surface of the cooled object. Large contact area and fast cooling speed. Easy to crush and mold.
Daily capacity: 0.5t-6t.
Flake Ice Maker
features
1.Internally-scraping ice skate helps reduce energy consumption and prevents refrigerant leakage
2.Stainless steel materials, advanced processing equipment and heat treatment ensure .
the best heat transfer efficiency.
3.The design of large water receiving plate prevents water leakage at the bottom of drum.
4.Photoelectric switch is directly installed in the bottom of evaporator.
5.Direct liquid feeding and dry evaporation -- simple, safe and reliable control.
6.Integrated modular equipment installation is convenient for maintenance.
7.Daily capacity: 0.5t-30T..
8.Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm..
Flake ice machine applications:
？ Mincer process for boiled sausage production
？ Production of baking and pastry products
？ Fishing industry: cooling during transportation, storage and sale.
？ Filling of fresh food displays in supermarkets
？ Decorative refrigeration of buffets (hotels, restaurants, event catering...)
？ Laboratory, pharmacy, chemistry: chemical processes, freezing of blood plasma
？ Hospitals: cryotherapy, cold packaging.
？ Health spas & leisure swimming baths
？ Artificial snow tracks for sports and leasure
？ Concrete cooling for large project, like railway hydropower projects.
Quick Details
Condition: New
Capacity: 200kg~50000kg
Place of Origin: Shanghai, China (Mainland)
Brand Name: LAIAO
Model Number: LL series
Ice Shape: Flake Ice
Voltage: 220v,380v,420v,440v
Power(W): all available
Dimension(L*W*H): all available
Weight: all available
Certification: ISO9001
Warranty: 1-year
After-sales Service Provided: Engineers available to service machinery overseas
name: flake ice machine
certificate: CE ISO
ice type: flake ice about 1.8mm to 2.2mm
field: resturant, supermarket, fish farm
range: from 0.2T to 50T
electric voltage: 220v 240v 380v 415v 460v
compressor: bitzer, copeland, hanbell
Shanghai Laiao Refrigeration Equipment Co., Ltd. Dated in 2005, is the manufacture which professional in research, development and manufacture of refrigeration equipment, design and construction of cold storage and relevant refrigeration projects, production of thermal insulation materials.
Main Business:
1. Construction of Cold Storage;
2. Installation and adjusting of refrigeration equipment with pipes, etc. Refrigeration Equipment including: All kinds of Screw Type and Piston Type Multi-connected Compressors, Air-cooled Type and Water-cooled Type condensers, Salt water sets and matched power- controlling system. Constructional Products: XPS insulation plates, colored steel sheet, C-shaped steel, light-weight steel structure, profiled steel sheet, profiled plastic strips special for gas-adjusting room, etc.
Advantages:
Laiao cold room was honored with "Top-10 brands in China" in 2007.
Laiao is one of the few companies in China which have "First-grade Qualification for Cold Room Installation".
"Global Top-500" Customers:
KFC, 3M, IKEA, Rohm&Haas
Application fields:
Food industry, chemical industry, pharmaceutical industry, electronic industry and so on.
