| Prod Model: |
TS-3073F-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Amplifier IC: |
High Power 7388/ MID Power 7377/ Low Power 1028 |
| Metal Case: |
Long Size/Short Size |
| Type: |
Car MP3 |
| Placement: |
Dashboard |
| Certification: |
BQB |
| Voltage: |
12/24V |
| Audio Output: |
L/R Channel |
Product Description

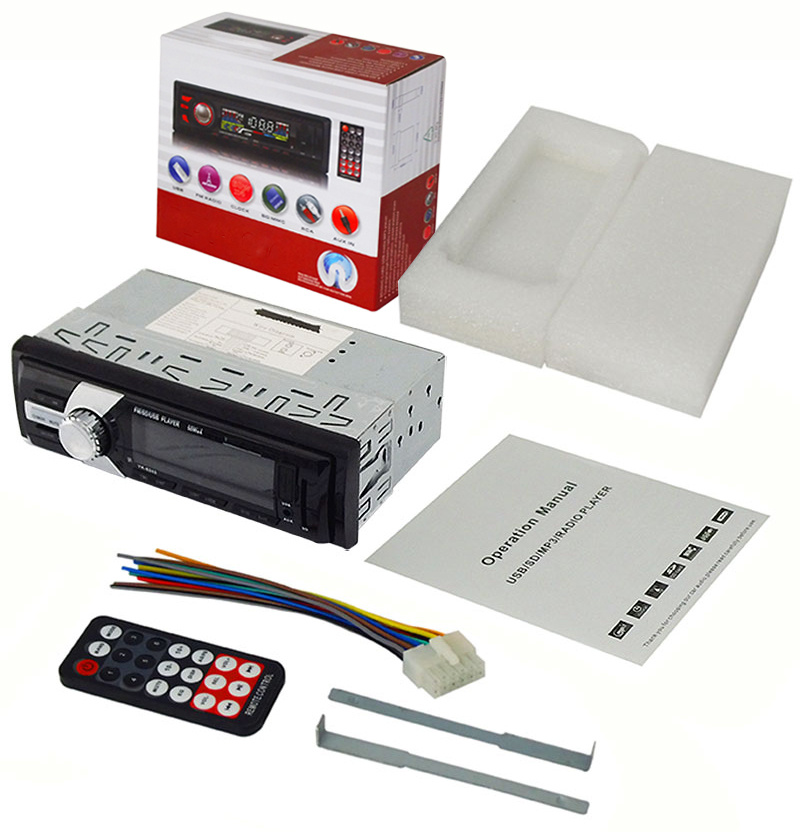

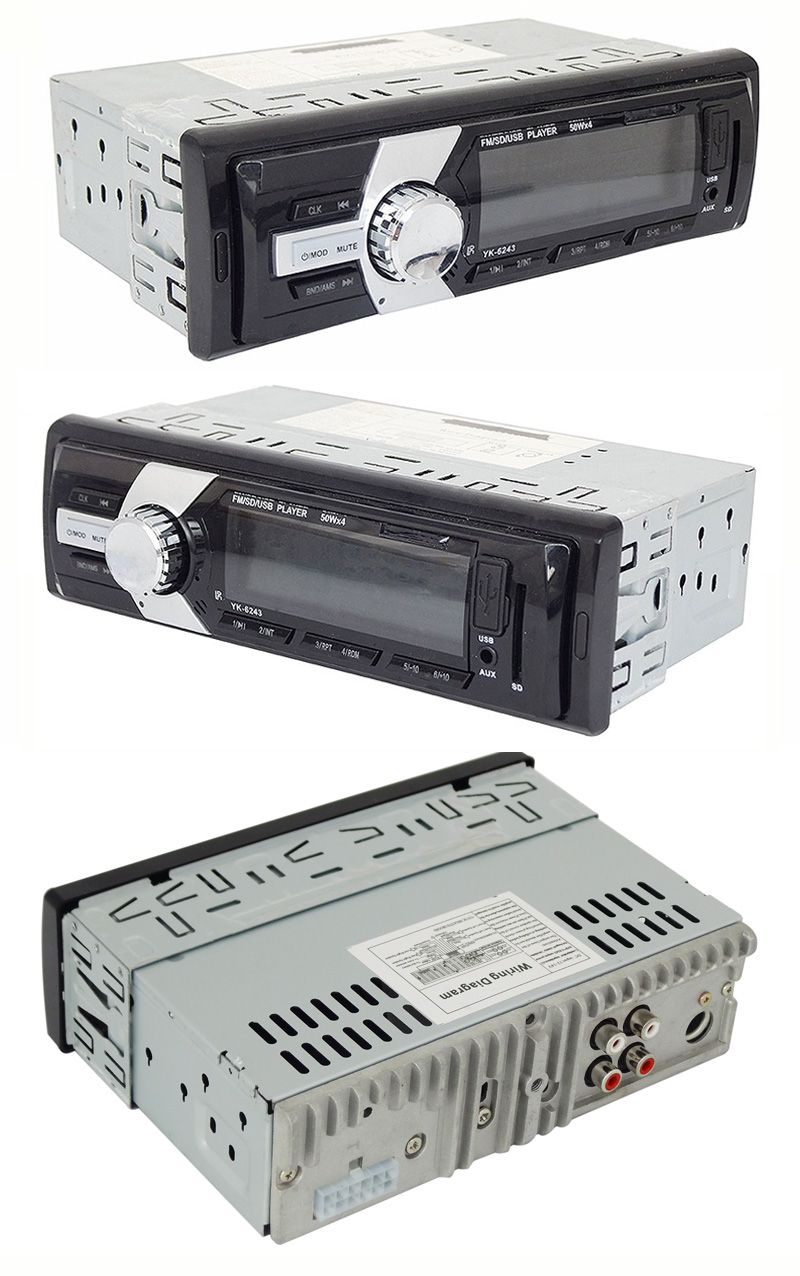

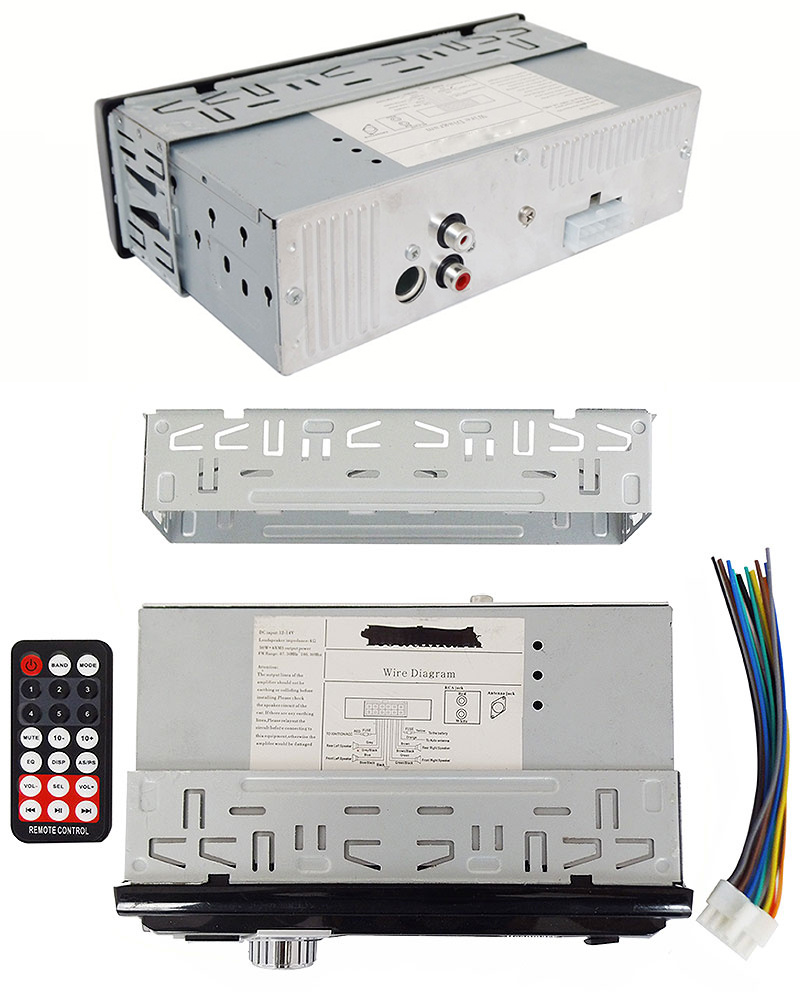

Fixed Panel Indash Car Radio Car MP3 Player
PRODUCT FEATURES:- Fixed panel
- Digital color LCD display
- Color button illumination
- Compatiable with MP3 Playback
- Support USB/SD/MMC card input
- Electronics tuning Sereo FM radio receiver
- Auto preset and store 18 FM stations
- Preset EQ: POP/ ROCK/ CLASSIC/ JAZZ
- Treble, Bass, Balance, Fader, Volume control
- 4 channels highpower output (output level is optional)
- Front AUX-IN
- RCA output
-12pin rear connector
- DC 12v Power supply
OPTIONAL FUNCTIONS:- Short metal case(90mm)/ Long metal case(110mm)- Big Heatsink/ Normal Heatsink
- Power Supply: DC12V/ DC 24V
- LED display
- SD card/ TF card
- Remote control
- AM radio receiver
- ISO connector
- Bluetooth
- RDS-SD/TF card
| Ampilifier IC | Power Output | Heatsink |
| 7388IC | RMS 4x25W MAX 4x50W | Big heatsink |
| 7377IC | RMS 4x7W MAX 4x15W | Normal heatsink |
| 1028IC | RMS 2x7W MAX 2x15W (4x7W) | Normal heatsink |
SHIPPING INFORMATION:| Container | Quantity |
| 20GP | 7600PCS |
| 40GP | 15200PCS |
| 40HQ | 18000PCS |
