| Prod Model: |
Infrared heater SGR1602 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Fixed Coating Oven Heater |
| Conversion Rate: |
90% |
| Co: |
Less Than 80ppm |
| Nox: |
Less Than 10ppm |
| Life: |
Above 11000hr |
| Chx: |
Less Than 50ppm |
| Plate: |
Ceramic Plate with Catalyst |
| Working Pressure: |
2800~5000PA |
| Calorific Value: |
5400kcal/Hr |
| Gas Consumption: |
0.46kg/Hr |
| Principle: |
Mixing Heat Exchanger |
| Structure Material: |
Metal Material |
| Application: |
Heater |
| Style: |
Cast-In |
| Ceramic Heating Equipment Type: |
Ceramic Heater |
| Recuperative Heat Exchanger Type: |
Shell and Tube Heat Exchanger |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Core: |
Ceramic Core |
| Mixing Heat Exchanger Type: |
Infrared Heater |
Product Description

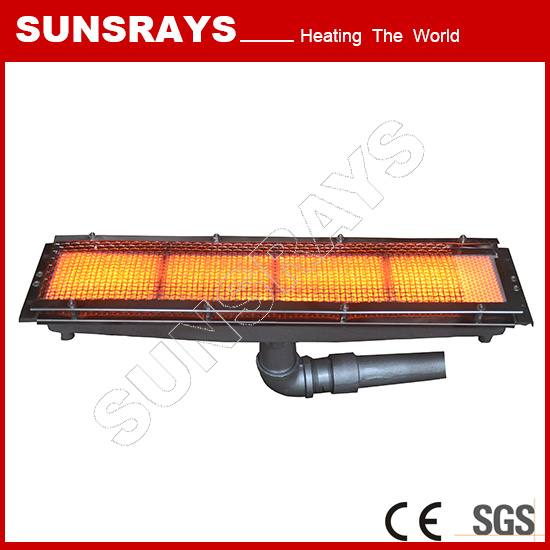

Fixed coating oven heater
The best select--super 1602 infrared burners
1) taiwan ceramic tiles
2) state to art assembling.
3) out standing performance.
The "super1602" ceramic tile infrared burners are sunsrays' most popular products.They are designed and produced for multi-purposes, such as the coating curing, pretreatment of drying, powder coating, pre drying of textile printing and dyeing, food processing line, carpet baking glue, asphalt pavement heating and repair, latex dipping industries, etc.
The specifications:
| Model | SGR1602 |
| Gas consumption | 0.46kg/hr |
| Calorific value | 5400kcal/hr |
| Size | 560x135x185(mm) |
| Weight | 8.0kg |
| Conversion rate | 90% |
| Burnr Plate | Ceramic plate with catalyst |
| Working pressure | 2800~5000pa |
| Color | Silver |
| Customized | Yes |
Fixed coating oven heater advantages:
1) safe:Premixed the air&gas in 2800 mpa low-pressure natural ejector mode, more safety and reliable
2) high efficiency:Honeycomb ceramic plate with strong heat storage capacity, good effect of radiation, conversion rate≥90%,
3) simple structure, easy install:The whole system is consist of there parts, gas/air delivery, burner, ignition and control.Compact structure, easy installation and debugging.
4) energy saving environmental friendly:Full combustion, high efficiency, no waste water/gas, no noise pollution,
5) accurate control:Realize accurate control of combustion by use inverter, actuators.
Other products you may be interested in:
| Model | Size | Weight | Gas consumption | Calorific value | Uses |
| SGR1602 | 560x135x185mm | 8.0kg | 0.46kg/hr | 5400kcal/hr | powder coating or food drying ect |
| K850 | 760x148x180mm | 3.4kg | 0.5-0.9kg/hr | 6.6-12.8kw/hr | Industrial heating |
| P400 | 410x100x70mm | 3.9kg | 0.3kg/hr | 3.0-3.5kw/hr | Modularization,Large area heating |
| V200 | 210x 160 x 60mm | 1.4kg | 0.25kg/hr | 4.5-4.8kw/hr | BBQ |
| E30 | 456x 173x260mm | 14.5kg | Customized | Customized | Hot air treatment |
| TC200 | 270 x 170 x 55mm | 1.3kg | 0.25kg/hr | 3.2kw/hr | Coffee baking machine or Food baking etc. |
