Fish Walk in Cold Room with -25 Degrees C
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
250/Square Meter |
| Pay Type: |
T/T |
| Prod Model: |
AA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
43kg/M3 |
| Heating Conductivity: |
0.024W/M.K |
| Compressor: |
Copeland/Bitzer |
| Door: |
Convex Door/Sliding Door |
| Panel: |
Painted Galvanized Steel/Stainless Steel |
| Foam Material: |
Basf |
| Refrigeration Unit: |
Split Type |
| Cerfificate: |
ISO 9001:2000 |
| Voltage: |
380V/50Hz, 3 Phase |
| Certification: |
SGS |
| Condition: |
New |
| Temperature: |
-25c |
| Refrigerant: |
R404A |
| Structure: |
Knock Down |
| Suitable For: |
All Suitable Place |
| Warranty: |
1-2 Years, 1 Year |
Product Description

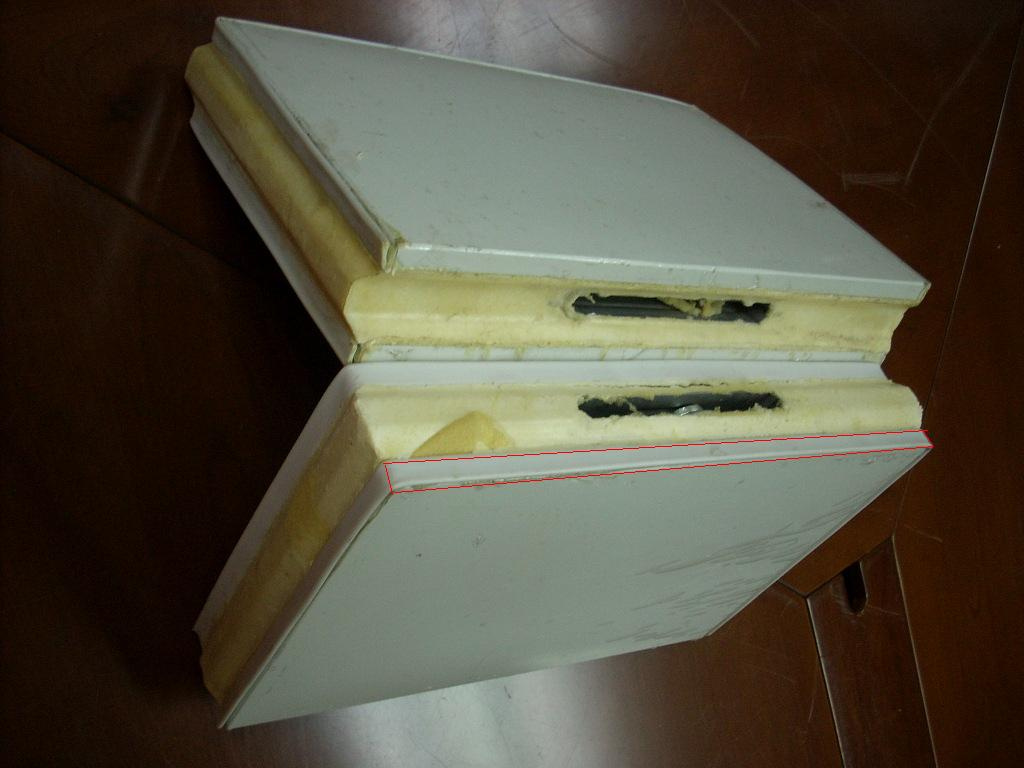

Fish walk in cold room with -25 degrees C1. Wall panel(1) Male and female cam lock type, use hexagonal key to assemble. Cam lock is pre-burried in the panel, put the key in the hole to lock.There is a hat for the hole so that to decorate it.(2) The panel edge has gasket to prevent leaking the cold air.(3)Our product meets JB/6527-2006cold room insulation sandwiched panel's technology conditions> standard request.
(4)The foaming material we choose is imported BASF (US brand) foaming material, green to the environment.
The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15 years.
(5)Wall and ceiling panel type
- painted galvanized steel PU panel
2. Walk in freezer floor
Outside painted galvanized steel inside 3.0mm skidproof aluminum polyurethane insulation panel
3. Door
-Convex door: 800*1900mm
-Hinged door: 832*1860mm
-Sliding door: 1200: 2200mm
-Simple door
3. Refrigeration unit
Copeland/Bitzer split type refrigeration unit
Refrigerant is R404A(environmental friendly)
Air cooled type/water cooled type
4. Panel, refrigeration unit and fittings package
We use bubble paper as panels' package to prevent scratching.
Use plywood for refrigeration unit and carton for fittings
5. Workshop
Workshop is more than 30000 square meters and has a complete set of imported CUSBER and OMS production line for polyurethane sandwich panels.
6. Exhibition
Dachang company attend all kinds of exhibition everything in Beijing, Shanghai, Germany etc.
| Panel thickness(mm) | Operating Temperature |
| 50 | 5C or above |
| 75 | -5C or above |
| 100 | -25C or above |
| 150 | -45C or above |
| 200 | -55C or above |
Polyurethane specification
According to the inspection result of national JB/T6527 |
| NO | Inspection item | Unit | Technoloty ispection | Inspection result |
| 1 | Density | kg/m3 | 32-50 | 43 |
| 2 | Compressing strength
(10%deformation) | Kpa | >160 | 200 |
| 3 | Bending strength | Kpa | >245 | 331 |
| 4 | Absorbing rate | % | <4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.024 |
| 6 | Average burning time
(vertical) | S | <30 | 3 |
| 7 | Average burning height
(vertical) | S | <250 | 250 |
We are one of the leading enterprises in Guangdong, specialized in kitchenware and hardware. Our products include refrigeration equipment, kitchen equipment, refrigerator tables, quick freezers, blast freezers, ice storage bins, ice making machines, upright showcases, kitchen refrigerators, bar fridges, worktable refrigerators, drawer refrigerators, salad preparation cabinets, stainless steel work tables, food processing machines, baking ovens and others.
We adopt advanced refrigeration technology, strict quality check technology and advanced devices to ensure the high quality. Our products are suitable for restaurants, hotels, supermarkets and companies to store and display food. With high quality, honesty and perfect after-sales services, our products are selling well worldwide.
We are looking forward to establishing relationships with you in the near future.
