| Prod Model: |
Outdoor LED Display P6-8S (smd) |
| Product Name: |
Outdoor LED Display P6-8s |
| Driver IC: |
Mbi5124 |
| Bightness CD/Sqm: |
6500CD/M2 |
| Grey Scale: |
65536 Degree |
| Life Time: |
More 100,000 Hours (80%) |
| Mtbf: |
More 50,000 Hours |
| Operating Temperature: |
-30~-60t |
| Humidity: |
10%-95% |
| Color Temperature: |
6500-9500k |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1r1g1b/ DIP 346 |
| Pixel Density: |
27778dots/M2 |
Product Description

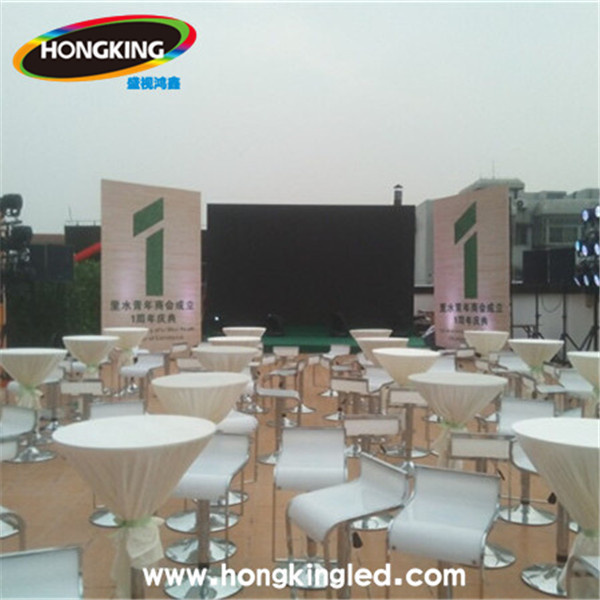

Fine Craft P6 Led Outdoor Full Color Led Display
Product descripition:
| Technical Specifications |
| NO | Product name | outdoor DIP P6 led display |
| 1 | Pixel Pitch(mm) | 6mm |
| 2 | Pixel configuration | 1R1G1B/ DIP 346 |
| 3 | Pixel density | 27778dots/m2 |
| 4 | Brightness | 6500cd/m2 |
| 5 | Module size(W*H) | 192*192mm |
| 6 | Module Resolution (W*H) | 32 dots x 32dots |
| 7 | Module weight | 450g |
| 8 | Cabinet size (W*H) | 960mm×960mm |
| 9 | Drive IC | MBI5124 |
| 10 | Drive mode | 1/4scan |
| 11 | Viewing Angle(V/H) | 110ºC |
| 12 | Grey Scale | 65536 degree |
| 13 | Life time | >100,000 Hours (50%) |
| 14 | MTBF | >50,000 Hours |
| 15 | Operating Voltage | AC110V/220V±10% |
| 17 | Screen Power Consumption | Max: 680w/m2; Average:220w/m2 |
| 18 | Input Power Frequency | 50/60Hz |
| 19 | Operating temperature | -30--60ºC |
| 20 | Humidity | 10%-95% |
| 21 | Refresh Rate | ≥1200HZ |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Color Temperature | 6500K-9500K |
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable |
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
