| Prod Model: |
3.5-inch lcd display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
3.5-Inch LCD Display |
| Resolution: |
240*320 |
| Connect Mode: |
Plug-in Type |
| Interface: |
RGB Bit Compatible 8080 I/F |
| Outline Dimension: |
76.9mm(W)×63.9mm(H)×4.3mm(D) |
| Active Area: |
70.08mm(W) ×52.56mm(H) |
| Driver IC: |
Hx8238d |
| LCM Luminance: |
230 CD/M2 |
| Size: |
3.5 Inch |
| Product: |
3.5 Inch TFT LCD Panel |
| LCD Drive Mode: |
Static Drive LCD Module |
| Touch Screen Type: |
Resistive |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Digital LCD Module Type: |
Counting Module |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Notebook LCM |
| Response Time: |
8ms |
| Customized: |
Customized |
| Viewing Angle: |
12 O'clock |
Product Description

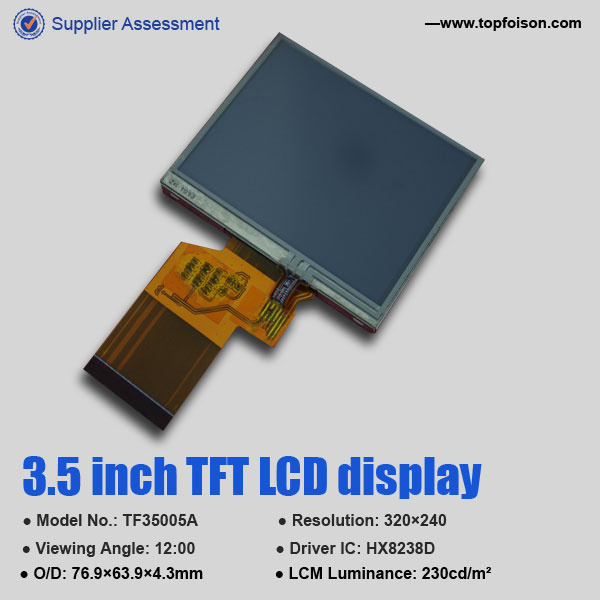

Item: Fast Response Time 3.5-inch lcd display 320*240 Qvga RGB Bit 8080 HX8238d for Industry Equipment
Resolution: 240*320
Inserting Mode: Plug-in Type
Viewing Angle: 12: 00
Interface: RGB Bit compatible 8080 I/F
Outline Dimension: 76.9mm(W)× 63.9mm(H)× 4.3mm(D)
Active Area: LCD---70.08mm(W) × 52.56mm(H)
TP---70.48mm(W) × 53.16mm(H)
Driver IC: HX8238D
PIN Nos.: 54
LED Connect Mode: 6 LEDs in series
Operating Voltage -0.3~4.6V
Operating temperature -20~70° C
Storage temperature -30~80° C
Backlight Luminance: 3600 CD/M2
LCM Luminance: 230 CD/M2
LCM Brightness Uniformity
80
We are professional manufacturer of TFT LCD display, factory area is 63000m2 including 4000 m2 dust-free clean workshop with more than 600 staffs. We focus on TFT LCD R&D, manufacturing and sales, and there are 6 world class automatical FOG/COG production lines to ensure the daily capacity of 100, 000 PCS. We always focus on the quality with full inspection before delivery and belive that only the superior quality can serve and keep the long-term cooperation relationship. Our main products is TFT LCD display from 1.44 inch to 9.7 inch and LCD screen for iPhone mobile phone.
