| Prod Model: |
FB-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
26" (650mm) Fb-65 |
| Blade: |
Aluminum Blades, 2 or 3 Blades |
| Motor: |
30X120mm Stator Pure Copper |
| Switch: |
3 Speeds Knob Switch |
| Guard: |
Density 2.1mm/PC +3.5mm/PC |
| Voltage: |
220~240V/50Hz, or 110~120V/60Hz |
| Power Cord: |
out 2.5m Length 3cx0.75mm2, VDE Plug |
| Oscillating Function: |
Yes |
| Overload Protection: |
Yes |
| Color: |
Black, Grey, Other. We Painted Them |
| Installation: |
Wall Mounted |
| Type: |
Axial Flow Fan |
| Speed: |
3 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Material: |
Metal |
| Application: |
Industrial |
| Timer: |
With Timer |
| Remote Control: |
With Remote Control |
| Certification: |
SAA, S-MARK |
Product Description
Industrial fan is our main products. All the fans have CE/CB/SAA certificate. our factory are specilized in industrial fan, floor fan, exhaust fan, ventilating fan. axail fan and centrifugal fan. below is the industrial fan details for your check
Full series have 4 sizes 20"(500mm), 24"(600mm), 26"(650mm), 30"(750mm)
Industrial wall fan
Powerful Long-lasting motor
100% copper wire inside, full iron motor case
36X120mm stator N. 800 silicon steel
With overload protection to make the fan longer life
Powerful air volume
3 Speeds
Osilating Head
Chromed Grill
Two/three Aluminum blades

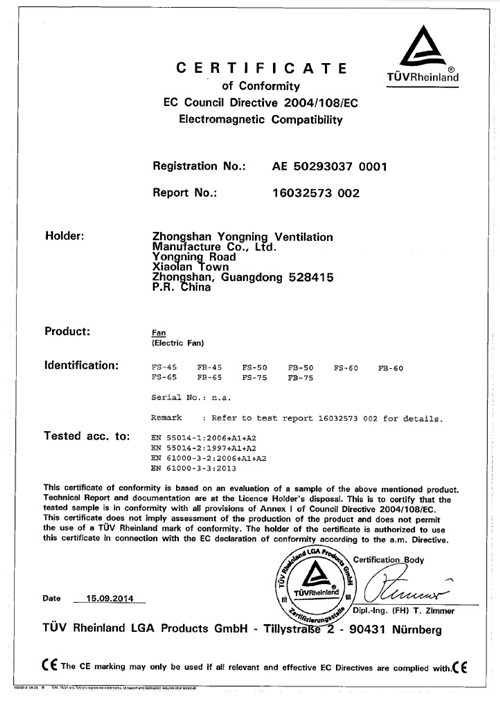

CE/GS, RoHS, SAA, S-MARK appovals
| mm | Model | Voltage | Power | Speed | Air Delivery | Packing size | Pcs/Box | CBM/Set | G.W. | 20'GP | 40'HQ |
| V | W | r/min | m³/min | (cm) | Kgs | SKD/pcs | PCS |
| 500 | FB-50 | 220 | 130 | 1400 | 170 | 82X61.5X17.5 | 1 | 0.0883 | 16.00 | 750 | 780 |
| 600 | FB-60 | 220 | 160 | 1400 | 185 | 92.5X70.5X17.5 | 1 | 0.1141 | 18.00 | 650 | 600 |
| 650 | FB-65 | 220 | 210 | 1400 | 205 | 97.5X75.5X17 | 1 | 0.1288 | 23.00 | 560 | 544 |
| 750 | FB-75 | 220 | 280 | 1400 | 290 | 107X84X17.5 | 1 | 0.1573 | 27.00 | 450 | 444 |
Zhongshan Yongning Ventilation System Manufacture Co., Ltd was built in 1984. Which is a large enterprise specializing in producing "yonghua" brand ventilation equipments or OEM follow clients requirements...Based on the corporate spirit of unify and innovation for greater success, our company has achieved big development through thirty years of efforts. Now our company occupies a floor space of over 36, 000 square meters and a factory building area of over 23, 000 square meters. Most of the spare parts are made by ourselves, including motor, fan body, blade balance, powder coating and so on. We locate in Chinese famous Star Town---- Xiaolan Town, Zhongshan, Guangdong.
Propelled by the spirit of professionalism and perseverance for further growth, we are always pursuing good quality and achieve constant improvement. Our company is equipped with excellent production facilities and technicians. We have imported advanced equipment such as automatic assembling lines, painting facilities and high accuracy balance testing machines to ensure our products come up with international level.
Currently, we have over 500 types of products, including household exhaust fans, industrial stand/wall fans, industrial ventilating fans, axial and centrifugal blowers and more. Our business also covers the design, manufacturing and installation of diversified environmentally friendly ventilating equipment, including noise reduction and dust-removing equipment.
Many products of our company have successfully passed GS, CE, CB, SAA, S-MARK, and CCC approvals and we have built up a strong sales network across many countries. Our products are also exported to Europe, America, Africa, Australia and Middle & East Asia and Southeast Asia and favored by clients.
