| Prod Model: |
DJ-350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Cellphone Battery Die Cutting Machine |
| Stencil Area: |
370*280mm |
| Effective Die-Cutting Area: |
350*260mm |
| Maximum Width Of Material: |
360mm(Effective 350mm) |
| Height Of Die Mould: |
8mm |
| Roll Diameter: |
Max.400mm |
| Speed Of Die-Cutting: |
0-60/Min |
| Pressure Precise: |
+0.02 |
| Power: |
4.2kw |
| Voltage: |
Customed |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Automatic Grade: |
Automatic |
| Application: |
Battery Pole Piece |
Product Description

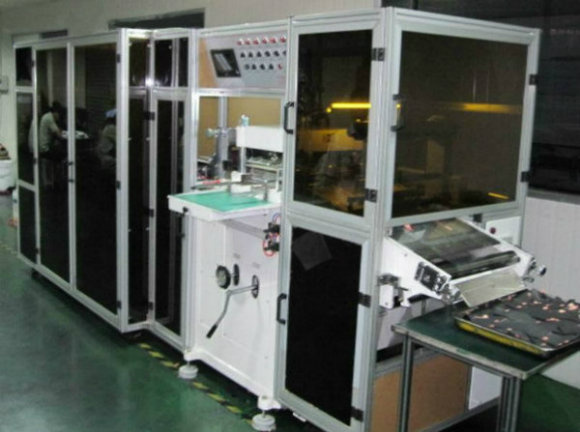

Factory price hot sale battery die cutting machine
1. Function description
DJ-350 battery pole die-cutting machine is new type coiled material high-speed molding machine designed for growing marketing demands of power battery, it saves labor cost and improve production quantity. The machine has advanced design and technology ,with high manufacture precise., is perfect for electrode pole piece
2.Technical parameter
| Model | DJ-350 |
| stencil area | 370*280mm |
| effective die-cutting area | 350*260mm |
| Maximum width of material | 360mm(effective 350mm) |
| height of die mould | 8mm |
| roll diameter | Max.400mm |
| speed of die-cutting | 0-60/min |
| Pressure precise | +0.02 |
| power | 4.2kw |
| Voltage | 380V/50HZ |
| Dimension | 4300*1300*1900mm |
| weight of machine | 2500kg |
| Burrs of die-cutting | ≤0.025mm |
| Pole mould precision | +0.2mm |
Foshan Golden Milky Way Intelligent Equipment Co., Ltd is a state-level, high-tech enterprise specialized in manufacturing mixing and filling equipments used for building sealants, industrial adhesives, organosilicon & high polymer compounds, electronic chemicals, Lithium battery slurry, high polymer composites, paint chemicals and cosmetics etc.
Established in 2002, the company was founded in The Central Science and Technology Industrial Park, Sanshui, Foshan city, with plant area of 20, 000 square meters, building area of 13, 000 square meters and over 200 employees. Golden Milky Company is devoted to technical development and innovation, with many patented technologies, and is the founder of the Foshan Sanshui Engineering Technology Research and Development Center, and has gained TUV Rheinland ISO9001: 2008 certification in 2011.
Our representative products include twin screw automatic sealant production line, static mixer, automatic cartridge filling machine, sausage type automatic filling machine, cartridge/sausage type automatic box packing machine, vacuum kneader, planetary dispersing power mixer, planetary power mixer, dispersing power mixer, hydraulic discharge extruder, automatic vessel cleaner and reaction kettles, etc...
